Tuotenumero: 3519290

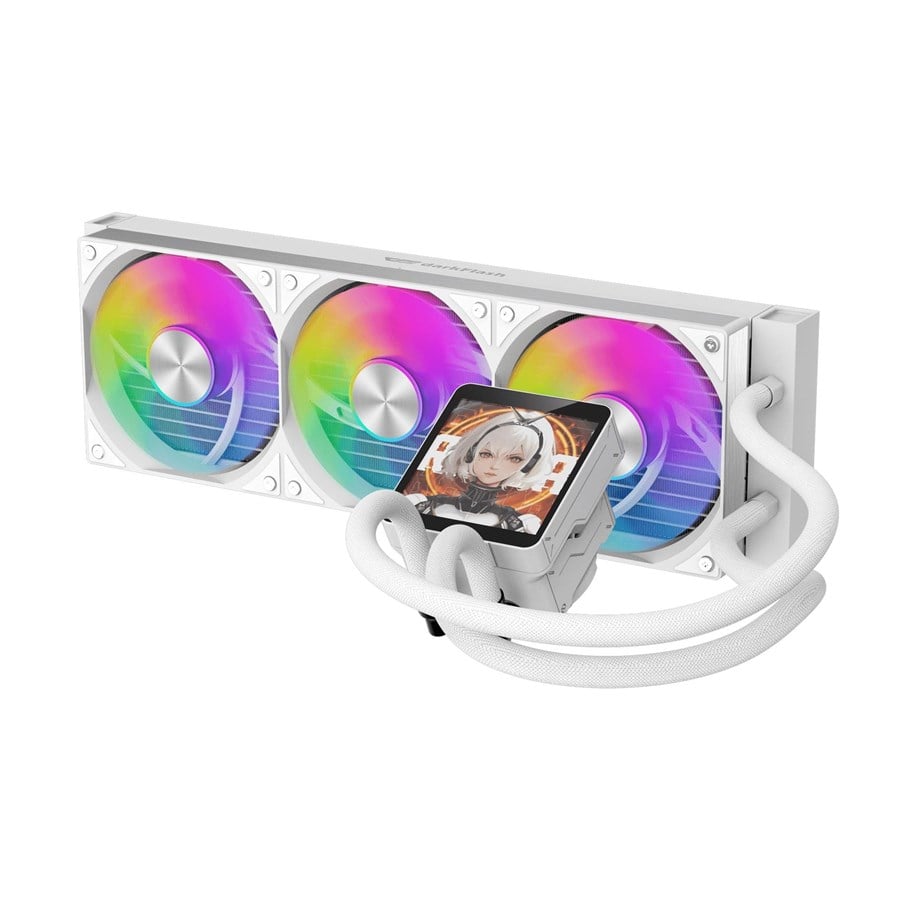

Darkflash DV360S MAX CPU Cooler - White

DarkFlash DV360S MAX is a 360 mm AIO CPU cooler designed for high-performance processors with a TDP of up to 320 W. The copper water block transfers heat to the 397 × 120 × 27 mm aluminium radiator, while the integrated triple-fan module provides airflow of up to 52.84 CFM at up to 30.2 dBA. The three fans operate at 800–1800 RPM and use hydraulic bearings with a lifespan of up to 40,000 hours. A detachable magnetic 3.95-inch IPS display with 480 × 480 resolution can show system temperatures, a clock or custom graphics. ARGB lighting supports motherboard synchronization, and compatibility covers Intel LGA 1200, 115x, 1700 and 18xx as well as AMD AM4 and AM5.

Varastossa
93,39 € 74,41 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
1 kpl Varastossa - 2-5 arkipäivän toimitus

DarkFlash DV360S MAX is a 360 mm all-in-one CPU cooler designed for demanding systems and processors with a TDP of up to 320 W. The copper base of the water block transfers heat from the CPU to the 397 × 120 × 27 mm aluminium radiator, providing a large surface for heat dissipation.

The water block features a detachable 3.95-inch IPS display with a 480 × 480 pixel resolution. Its magnetic mounting allows the screen to be detached, rotated and positioned according to the installation. Dedicated software can display component temperatures, a clock or custom graphics, making it possible to adapt the appearance and information shown on the cooler.

The radiator uses a unified triple-fan module instead of three separate fans, simplifying installation and providing a cleaner appearance. The fans operate at approximately 800–1800 RPM and use hydraulic bearings with a rated lifespan of up to 40,000 hours. They provide airflow of up to 52.84 CFM and static pressure of 1.46 mmH₂O, while the maximum noise level is approximately 30.2 dBA. PWM control adjusts fan speed according to CPU temperature.

A three-phase pump operates at approximately 2700 RPM from a 12 V DC supply and produces around 29 dBA of noise. The tubing combines IIR and EPDM with a braided outer sleeve for added protection. ARGB lighting is integrated into both the fans and water block and can be synchronized through ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion 2.0 and ASRock Polychrome Sync.

DV360S MAX supports Intel LGA 1200, 115x, 1700 and 18xx sockets as well as AMD AM4 and AM5. Mounting hardware, thermal paste and cable management clips are included for installation.

CPU-jäähdytys

Kotelot - lisätarvikkeet

Valmistaja
Tuotenumero
3519290
Malli
DV360S MAX White
Ean
4711527008856
Valmistajan kotisivuille
Sopii huoneisiin
Suoritin
Malli
All-in-one-nesteenjäähdytin
Tuulettimen halkaisija
12 cm
Tuettu prosessorin kanta
LGA 1150 (Pistoke H3), LGA 1151 (pistoke H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1800, LGA 1851, Kanta AM4, Pistoke AM5
Suurin ilmavirtaus
58 cfm
Suurin ilmanpaine
1,35 mmH2O
Tukee pulssinleveysmodulaatiota (PWM)
Kyllä
Tuulettimen äänitaso (max.)
36,9 dB
Tuuletinlaakeriteknologia
Hydraulilaakeri
Lukumäärä per pakkaus
1 kpl
Pumpun moottorin nopeus
2700 RPM
Tuulettimen nopeuden (min.)
600 RPM
Tuulettimen nopeus (maks.)
1800 RPM
Keskimääräinen vikaantumisaika (MTTF)
40000 h
Tuotteen väri
Valkoinen
Pohjalevyn materiaali
Kupari
Tuulettimien määrä
3 tuuletin(ta)
Ripamateriaali
Alumiini
Led-valaisu
Kyllä
Valaistuksen väri
Multi
LED-liitintyyppi
3-pin
Tuulettimen liitin
4-pin
Näytön tyyppi
LCD
Näytön erottelutarkkuus
480 x 480 pikseliä
Nimellisjännite
12 V
LED-jännite
5 V
Jäähdyttimen leveys
39,7 cm
Jäähdyttimen syvyys
12 cm
Jäähdyttimen korkeus
2,7 cm
Putken pituus
45 cm
Waterblock-vesivuotosuojan leveys
8,78 cm
Waterblock-vesivuotosuojan syvyys
6,18 cm
Waterblock-vesivuotosuojan korkeus
7,93 cm
Tuulettimen mitat (LxSxK)
120 x 120 x 25 mm
Pakkaustyyppi
Laatikko

Suorituskyky

Sopii huoneisiin
Suoritin
Malli
All-in-one-nesteenjäähdytin
Tuulettimen halkaisija
12 cm
Tuettu prosessorin kanta
LGA 1150 (Pistoke H3), LGA 1151 (pistoke H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1800, LGA 1851, Kanta AM4, Pistoke AM5
Suurin ilmavirtaus
58 cfm
Suurin ilmanpaine
1,35 mmH2O
Tukee pulssinleveysmodulaatiota (PWM)
Kyllä
Tuulettimen äänitaso (max.)
36,9 dB
Tuuletinlaakeriteknologia
Hydraulilaakeri
Lukumäärä per pakkaus
1 kpl
Pumpun moottorin nopeus
2700 RPM
Tuulettimen nopeuden (min.)
600 RPM
Tuulettimen nopeus (maks.)
1800 RPM
Keskimääräinen vikaantumisaika (MTTF)
40000 h

Suunnittelu

Tuotteen väri
Valkoinen
Pohjalevyn materiaali
Kupari
Tuulettimien määrä
3 tuuletin(ta)
Ripamateriaali
Alumiini
Led-valaisu
Kyllä
Valaistuksen väri
Multi
LED-liitintyyppi
3-pin
Tuulettimen liitin
4-pin
Näytön tyyppi
LCD
Näytön erottelutarkkuus
480 x 480 pikseliä

Virranhallinta

Nimellisjännite
12 V
LED-jännite
5 V

Paino ja mitat

Jäähdyttimen leveys
39,7 cm
Jäähdyttimen syvyys
12 cm
Jäähdyttimen korkeus
2,7 cm
Putken pituus
45 cm
Waterblock-vesivuotosuojan leveys
8,78 cm
Waterblock-vesivuotosuojan syvyys
6,18 cm
Waterblock-vesivuotosuojan korkeus
7,93 cm
Tuulettimen mitat (LxSxK)
120 x 120 x 25 mm

Pakkauksen sisältö

Pakkaustyyppi
Laatikko

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
