Tuotenumero: 2476846

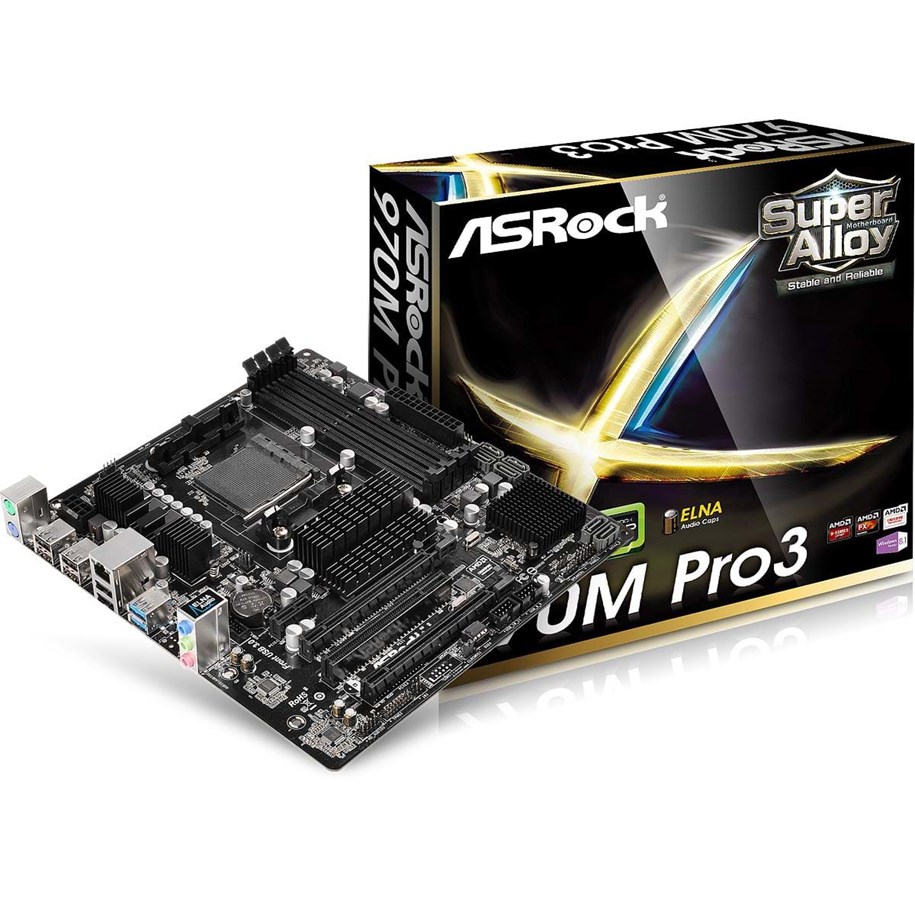

ASRock 970M PRO3 Emolevy - AMD 970 - AMD AM3+ socket - DDR3 RAM - Micro-ATX

Emolevy, Micro ATX, AMD Socket AM3+, AMD 970, 2 x PCI-Express x16, Dual DDR3-1333, USB 3.0, Gigabit LAN, HD Audio (8-kanavat), tukee CrossFire

Tuotetta ei ole saatavilla tällä hetkellä

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime. This ASRock motherboard uses a Realtek Gigabit LAN chip to support extremely fast Internet connections. Four USB 3.0 ports are provided for supporting all of your peripherals with fast data transfer speed. It supports high performance graphics cards for eye popping, jaw dropping, mind melting visuals. What you've never understood about your computer is that it is scared to death of water, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a high density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. ASRock's X-Boost technology is a smart auto-overclocking function and is brilliantly designed to unlock the hidden cores of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get performance boost! With the smart X-Boost, overclocking CPU or unlock CPU cores can become a near one-button process.

Valmistaja
Tuotenumero
2476846
Malli
970M PRO3
Ean
4717677325775
Valmistajan kotisivuille
Tuotekuvaus
ASRock 970M Pro3 - emolevy - micro ATX - Socket AM3+ - AMD 970
Tuotteen tyyppi
Emolevy - micro ATX
Piirisarjatyyppi
AMD 970 / AMD SB950
Suoritinkanta
1 x Socket AM3+
Yhteensopivat suorittimet
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 (Paitsi Phenom II 920 / 940, max. TDP 140 W)
RAM-enimmäiskoko
64 Gt
Tuetut RAM:it
4 DIMM-paikkaa - DDR3, non-ECC, puskuroimaton
Tallennusportit
6 x SATA-600 (RAID)
USB/FireWire-portit
2 x USB 3.0 + 6 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 otsikkojen kautta)
Audio
HD Audio (8-kanavainen)
LAN
Gigabit Ethernet

Yleistä

Tuotteen tyyppi
Emolevy - micro ATX
Piirisarjatyyppi
AMD 970 / AMD SB950
Väylän enimmäisnopeus
2.4 GHz
Suoritinkanta
Socket AM3+
Prosessoreiden enimmäismäärä
1
Yhteensopivat suorittimet
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 (Paitsi Phenom II 920 / 940, max. TDP 140 W)

Tuettu RAM

Enimmäiskoko
64 Gt
Teknologia
DDR3
Bus Clock
1333 MHz, 1066 MHz, 2400 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 1600 MHz (O.C.), 2100 MHz (O.C.)
Tuettu RAM-eheystarkistus
Non-ECC
Tallennettu tai puskuroitu
Puskuroimaton
Ominaisuudet
Kahden kanavan muistiarkkitehtuuri, Intel Extreme Memory Profiles (XMP), AMD Memory Profile (AMP)

Audio

Tyyppi
HD Audio (8-kanavainen)
Audio Koodekki
Realtek ALC892
Yhteensopivuusstandardit
High Definition Audio

LAN

Verkko-ohjain
Realtek RTL8111E
Verkkoliitännät
Gigabit Ethernet

Laajennus / Kytkeytyvyys

Laajennuspaikat
1 x PCIe 2.0 x16 (x16 tila)
1 x PCIe 2.0 x16 (x4 tila)
1 x PCIe 2.0 x1
1 x PCI
4 x DIMM 240-pin
1 x CPU
Muistiliitännät
SATA-600 -liittimet: 6 x 7-nastainen sarjaliitettävä ATA - 6 laitteet - RAID 0 / RAID 1 / RAID 10 / RAID 5
Liitännät
1 x PS/2 -näppäimistö
1 x PS/2-hiiri
6 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x äänilinjatulo
1 x äänilinjalähtö
1 x mikrofoni
Sisäiset liitännät
4 x USB 2.0 - header
2 x USB 3.0 - header
Virtaliittimet
24-nastainen päävirtaliitin, 8-nastainen ATX12V- liitin

Ominaisuudet

BIOS-tyyppi
AMI
BIOS-ominaisuudet
ACPI-tuki, JumperFree, SMBIOS 2.3.1 tuki, ACPI 1.1 tuki, Untied Overclocking Technology, UEFI BIOS
Manuaaliset asetukset
Suorittimen ydinjännite, muistin jännite, piirisarjan jännite
Laitteiston valvonta
Keskusyksikön ytimen lämpötila, rungon lämpötila, CPU-tuulettimen nopeusmittari, kotelon tuulettimen nopeusmittari, järjestelmän jännite, virtalähteen tuulettimen nopeusmittari
Lepo / Herätys (Sleep / Wake up)
LAN herätys (WOL, wake on LAN)
Laitteiston ominaisuudet
AMD Cool 'n' Quiet -tekniikka, ASRock Instant Boot, 4+1 Phase Power Design, ASRock Instant Flash, Intel Extreme Memory Profile (XMP) -tuki, ASRock UCC, ASRock APP Charger, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, tukee AMD CrossFireX -teknologiaa, tukee AMD Quad CrossFireX -teknologiaa, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock Dehumidifier Function, ESD Protection, Hyper Transport 3.0, AMD Memory Profile (AMP) -tuki, ASRock X-Boost, ASRock Restart to UEFI, ASRock UEFI System Browser, ASRock Turbo 50 / Turbo 60 Overclocking, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, LAN Cable Detection, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, High Density Glass Fabric PCB, ASRock Easy RAID Installer, Sapphire Black PCB

Muuta

Sisältyvät lisävarusteet
I/O-takapaneeli
Sisältyvät kaapelit
2 x Sarjakaapeli ATA
Mukana tulevat ohjelmistot
Ajurit ja apuohjelmat, ASRock Extreme Tuning Utility, Antivirus (kokeiluversio), Start8 (30 päivän kokeiluversio), Google Chrome Browser, Google ChromeToolbar
Yhteensopivuusstandardit
Plug and Play, WHQL, FCC, ACPI 1.1, EuP Ready, ErP Ready
