Tuotenumero: 2577535

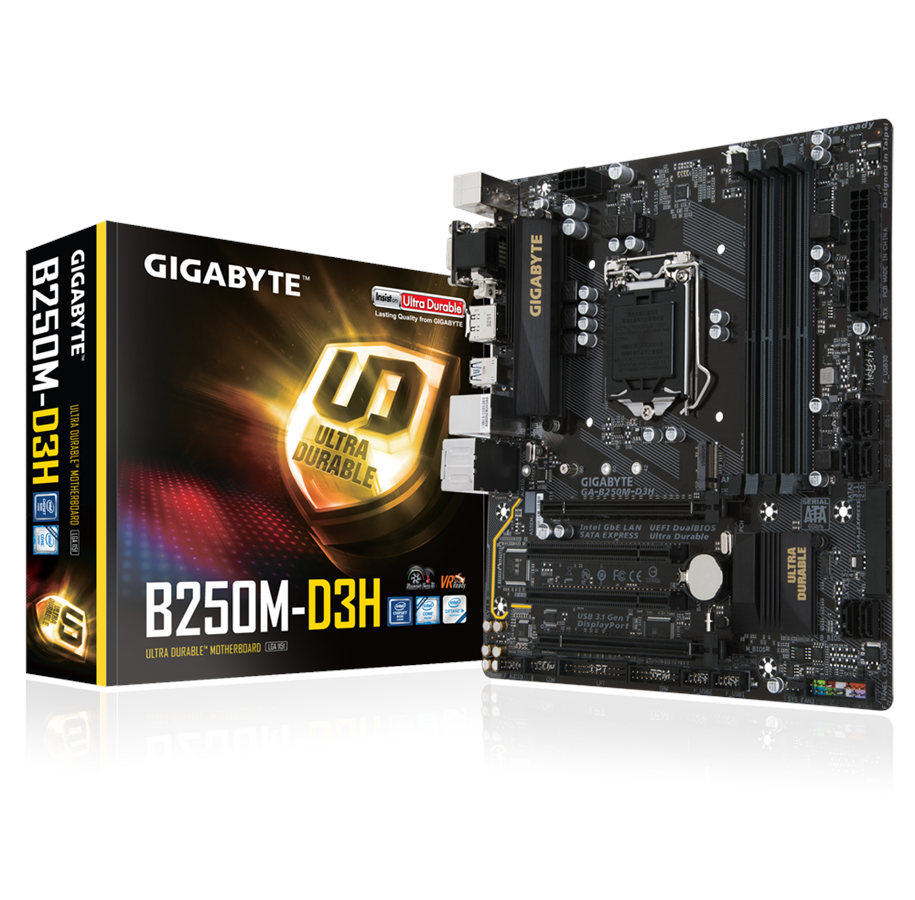

GIGABYTE GA-B250M-D3H Emolevy - Intel B250 - Intel LGA1151 socket - DDR4 RAM - Micro-ATX
Emolevy, Micro-ATX, Intel LGA1151 Socket, Intel B250, 2 x PCI-Express x16, Dual DDR4-2400 - 4 x DIMM slots, 6 x SATA-600 / 1 x M.2 NVMe (2242 / 2260 / 2280) / 1 x SATA Express , USB 3.1 Type A, D-Sub / DVI-D / DisplayPort / HDMI (tukee 4K), Intel I219-V Gigabit LAN, Intel HD Graphics tuki (CPU tarvitaan), Realtek ALC892 HD Audio (8-kanavat), tukee CrossFireX
Tuotetta ei ole saatavilla tällä hetkellä
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All hybrid fan headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or voltage mode. It supports up to 2 amps with built-in overcurrent protection - a must for high-end high current fans.
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change - all without having to load Windows.
All hybrid fan headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or voltage mode. It supports up to 2 amps with built-in overcurrent protection - a must for high-end high current fans.
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change - all without having to load Windows.
Valmistaja
Tuotenumero
2577535
Malli
GA-B250M-D3H
Ean
4719331847241
Valmistajan kotisivuille
Tuotekuvaus
Gigabyte GA-B250M-D3H - 1.0 - emolevy - micro ATX - LGA1151 Socket - B250
Tuotteen tyyppi
Emolevy - micro ATX
Piirisarjatyyppi
Intel B250
Suoritinkanta
1 x LGA1151 Socket
Yhteensopivat suorittimet
Pentium, Celeron, Core i5, Core i3, Core i7 (tukee: 6. ja 7. sukupolven Intel Core i3 / i5 / i7 / Pentium / Celeron)
RAM-enimmäiskoko
64 Gt
Tuetut RAM:it
4 DIMM-paikkaa - DDR4, non-ECC, ECC (toimivat non-ECC-tilassa), puskuroimaton
Tallennusportit
6 x SATA-600, 1 x SATA Express port, 1 x M.2
USB/FireWire-portit
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 otsikkojen kautta)
Maks. varattu RAM-koko
1 Gt
Audio
HD Audio (8-kanavainen)
LAN
Gigabit Ethernet
Yleistä
Tuotteen tyyppi
Emolevy - micro ATX
Piirisarjatyyppi
Intel B250
Suoritinkanta
LGA1151 Socket
Prosessoreiden enimmäismäärä
1
Yhteensopivat suorittimet
Pentium, Celeron, Core i5, Core i3, Core i7 (tukee: 6. ja 7. sukupolven Intel Core i3 / i5 / i7 / Pentium / Celeron)
Tuettu RAM
Enimmäiskoko
64 Gt
Teknologia
DDR4
Bus Clock
2133 MHz, 2400 MHz (O.C.)
Tuettu RAM-eheystarkistus
Non-ECC, ECC (toimivat non-ECC-tilassa)
Tallennettu tai puskuroitu
Puskuroimaton
Ominaisuudet
Kahden kanavan muistiarkkitehtuuri, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Grafiikat
Maks. varattu RAM-koko
1 Gt
Audio
Tyyppi
HD Audio (8-kanavainen)
Audio Koodekki
Realtek ALC892
Yhteensopivuusstandardit
High Definition Audio
LAN
Verkkoliitännät
Gigabit Ethernet
Laajennus / Kytkeytyvyys
Laajennuspaikat
1 x CPU
4 x DIMM 288-nastainen
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 tila)
2 x PCI
4 x DIMM 288-nastainen
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 tila)
2 x PCI
Muistiliitännät
SATA-600 -liittimet: 6 x 7pin SATA, 1 x SATA Express port
SATA-600 / PCIe 3.0 -liittimet: 1 x M.2
SATA-600 / PCIe 3.0 -liittimet: 1 x M.2
Liitännät
1 x LAN (Gigabit Ethernet)
1 x HDMI
1 x PS/2 näppäimistö / hiiri
1 x DVI-D
1 x äänilinjalähtö - miniliitin
1 x äänilinjatulo - miniliitin
1 x mikrofoni - miniliitin
1 x audio line-out (taka) - miniliitin
1 x audio line-out (keski/subwoofer) - miniliitin
1 x VGA
1 x DisplayPort
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x audio line-out (sivu-surround) - miniliitin
1 x HDMI
1 x PS/2 näppäimistö / hiiri
1 x DVI-D
1 x äänilinjalähtö - miniliitin
1 x äänilinjatulo - miniliitin
1 x mikrofoni - miniliitin
1 x audio line-out (taka) - miniliitin
1 x audio line-out (keski/subwoofer) - miniliitin
1 x VGA
1 x DisplayPort
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x audio line-out (sivu-surround) - miniliitin
Sisäiset liitännät
4 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header
1 x sarja - header
1 x samansuuntainen - header
1 x SPDIF-ulostulo - header
1 x audio - header
2 x USB 3.1 Gen 1 - header
1 x sarja - header
1 x samansuuntainen - header
1 x SPDIF-ulostulo - header
1 x audio - header
Virtaliittimet
24-nastainen päävirtaliitin, 8-nastainen ATX12V- liitin
Ominaisuudet
BIOS-tyyppi
AMI
BIOS-ominaisuudet
WfM 2.0 tuettu, UEFI BIOS, SMBIOS 2.7 -tuki, DMI 2.7 -tuki, ACPI 5.0 -tuki, Dual BIOS
Laitteiston valvonta
Keskusyksikön ytimen lämpötila, rungon lämpötila, CPU-tuulettimen nopeusmittari, kotelon tuulettimen nopeusmittari, järjestelmän jännite, CPU:n ylikuumenemissuoja
Laitteiston ominaisuudet
Q-Flash, AutoGreen, Intel Extreme Memory Profile (XMP) -tuki, On/Off Charge, Ultra Durable, tukee AMD CrossFireX -teknologiaa, tukee AMD Quad CrossFireX -teknologiaa, 3TB+ Unlock, Audio Noise Guard with Path Lighting, Game Boost, LED Trace Path, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, Intel Optane Memory Ready, GIGABYTE Smart Fan 5
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
