Kotelot - Fractal Design Define R6 - White - Kotelot - Miditower - Valkoinen - FD-CA-DEF-R6-WT

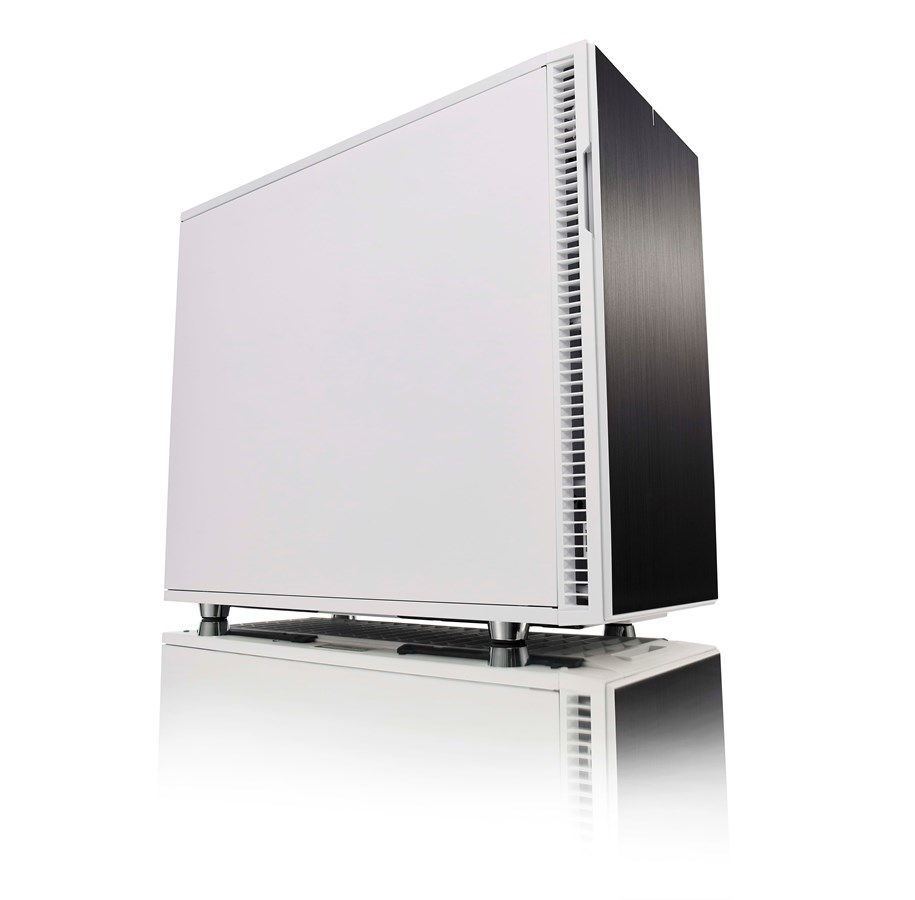

Fractal Design Define R6 - White - Kotelot - Miditower - Valkoinen

Miditorni, ATX, ei virtalähdettä (tukee ATX: ää maks. 300mm), edessä 2 x USB 2.0 / 2 x USB 3.0 & audioliitännät, 2 x 2.5" / 6 x 2.5"/3.5" laitepaikat, vesijäähdytys: tukee enintään 420mm:n jäähdytintä, maks. näytönohjain: 44 cm, sisältää kotelotuulettimet: 2 x 140mm edessä / 1 x 140mm takana, melua vaimentava, valkoinen

Tuotenumero: 2628872
Tuotetta ei ole saatavilla tällä hetkellä
Katso vastaavia tuotteita

Define R6 White



Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest and largest step in the legacy of the world-renowned Define Series.



Seamless tempered glass and sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.





The spacious and fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub and support for radiators up to 420mm, making it the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup.



Expanding on the timeless elegant form and silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation and flexible framework with limitless potential.









Key features





  • Optimized for silence with high-density industrial dampening on side, top and front panels


  • Reversible front door with anodized aluminum cover and dual mounting system for adaptability with elegance


  • Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity


  • Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard


  • Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed helping ensure superior airflow via two intake fans and a single exhaust.


  • Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base


  • Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior


  • Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel


  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience


  • Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths


  • Vertical 2.5 slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately)


  • Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing


  • Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud


  • Compatible with Fractal Design Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit for ultra-fast file transfers and fast charging (sold separately, requires a compatible motherboard)


Virtalähde

Kotelot - lisätarvikkeet

Valmistaja
Tuotenumero
2628872
Malli
FD-CA-DEF-R6-WT
Ean
7350041085881
Valmistajan kotisivuille
Tuotekuvaus
Fractal Design Define Series R6 - torni - laajennettu ATX
Tuotteen tyyppi
Järjestelmäkaappi
Koko tai muoto
Torni
Väri
Valkoinen
Sisäänrakennetut laitteet
3 x Fractal Design Dynamic X2 GP-14, Nexus+ Smart Hub
I/O liittimet
2 x USB 2.0
2 x USB 3.0
1 x kuulokkeet
1 x mikrofoni
Tuetut emolevyt
ATX, microATX, Extended ATX, ITX
Järjestelmäkaapin ominaisuudet
Yläpaneelin pölynsuodatin, etupölysuodatin, ModuVent, kaapelinhallintajärjestelmä, tukee 120 mm:n jäähdytintä takana, ruuvittomat sivulevyt, supports 120/140/240/280/360 mm radiator in front panel, tukee 120/240/360 mm:n jäähdytintä ylhäällä, tukee 120/140/240/280 mm jäähdytintä alhaalla, näytönohjaimen pysty-/vaakasuunta, alaosa + PSU-pölysuodatin
Virtalähde
Ei virransyöttöä
Teknisten tietojen vaatimustenmukaisuus
ATX

Yleistä

Koko tai muoto
Torni
Emolevyn maksimikoko
Laajennettu ATX
Tuetut emolevyt
ATX, microATX, Extended ATX, ITX
Teknisten tietojen vaatimustenmukaisuus
ATX
Sisäisten kiintolevyjen enimmäismäärä
8
Sisäänrakennetut laitteet
3 x Fractal Design Dynamic X2 GP-14, Nexus+ Smart Hub
Tuotemateriaali
Eloksoitu alumiini, Äänivaimennettu teräs
Väri
Valkoinen
Jäähdytysjärjestelmä
Etu: 140 mm tuuletin x 2 / imu / tukee 3 x 120 mm tai 2 x 140 mm tuuletinta
Ylhäällä (top): 120 mm tuuletinasennus x 3 / 2 x 140 mm fan supported, open layout 3 x 120/140 mm fan supported
Taka: 140 mm tuuletin x 1 / pakoputki / tukee 1 x 120/140 mm tuuletinta
Alaosa: 120/140 mm tuuletinasennus x 2
Prosessorin jäähdyttimen enimmäiskorkeus
185 mm
Videokortin enimmäispituus
440 mm
Järjestelmäkaapin ominaisuudet
Yläpaneelin pölynsuodatin, etupölysuodatin, ModuVent, kaapelinhallintajärjestelmä, tukee 120 mm:n jäähdytintä takana, ruuvittomat sivulevyt, supports 120/140/240/280/360 mm radiator in front panel, tukee 120/240/360 mm:n jäähdytintä ylhäällä, tukee 120/140/240/280 mm jäähdytintä alhaalla, näytönohjaimen pysty-/vaakasuunta, alaosa + PSU-pölysuodatin

Laajennus / Kytkeytyvyys

Laajennusmuistit
6 (yhteensä)/ 6 (vapaa) x sisäinen - 2,5" / 3,5" jaettu
2 (yhteensä)/ 2 (vapaa) x sisäinen - 2.5"
Laajennuspaikat
9
Liitännät
2 x USB 2.0
2 x USB 3.0
1 x kuulokkeet - miniliitin
1 x mikrofoni - miniliitin

Muuta

Sisältyvät lisävarusteet
Lisävaruste laatikko

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
