Tuotenumero: 3317158

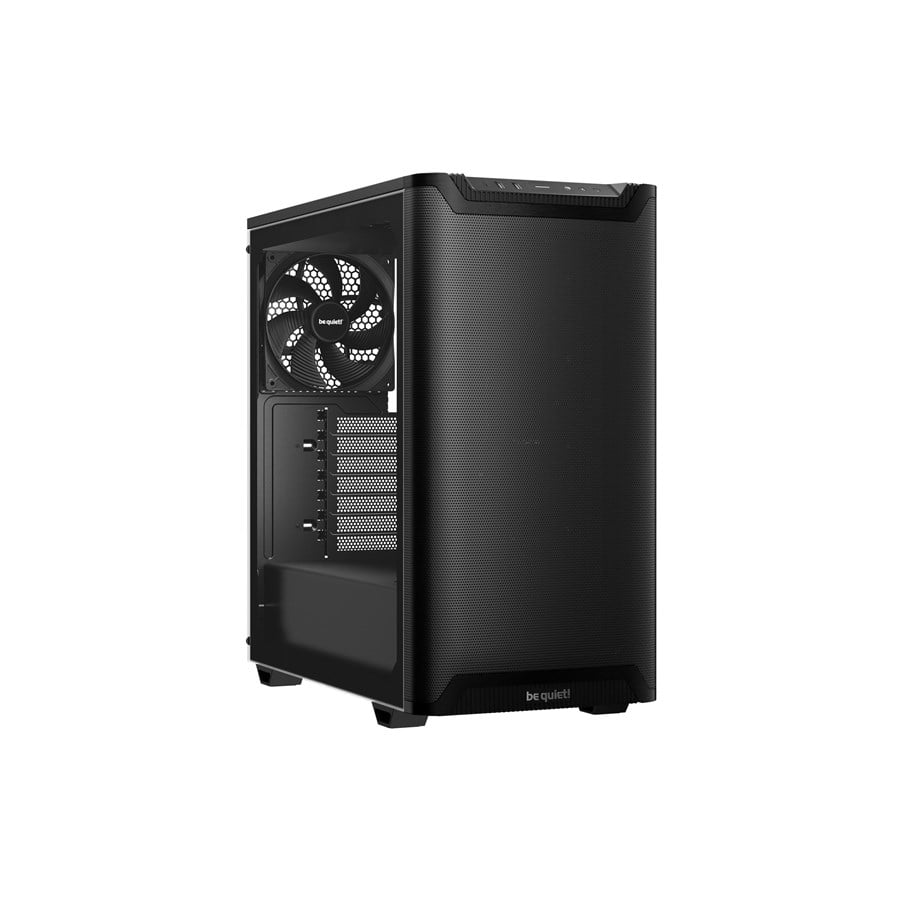

be quiet! PURE BASE 501 Airflow Window Black - Kotelot - Miditower - Musta

Miditower, ATX, ilman virtalähdettä - tukee ATX virtalähde (maks. 180mm pitkä), edessä2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C & ääniliitännät, 5 x 2.5" / 2 x 3.5" asemapaikat, vesijäähdytys: tukee maks. 360mm jäähdytin, CPU jäähdytin maks. korkeus: 178 mm, sisältyvät kotelotuulettimet: 1 x 140mm edessä / 1 x 140mm takana, etupaneeli: mesh, sivuikkuna: tempered glass, väri: musta

Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 5-8 arkipäivää toimitukseen

Comfortably compact
Pure Base 501 Airflow Window Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.

REDUCED TO THE MAX
Classic appearance

Without any distractions, Pure Base 501 Airflow Window Black is reduced to excel at its core functions and is aimed at users that appreciate an
unagitated presentation.

PERFECT CASE FAN
Fan blades optimized for high airflow

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.

MORE THAN MEETS THE EYE
Generous space for high-end hardware

Despite its compact dimensions, Pure Base 501 Airflow Window Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.

WAY UP!
With rotatable PCIe slots

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.

INVENTORY MANAGEMENT
With smart cable routing options

As a compact PC case, Pure Base 501 Airflow Window Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.

CONNECT WITH ME
State-of-the-art technology for your system

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.

SHOW ME WHAT YOU'VE GOT
A perfect view inside your PC

The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window Black. The window is made of tinted and tempered glass with black painted side bars.

Virtalähde

Kotelot - lisätarvikkeet

Valmistaja
Tuotenumero
3317158
Malli
BGW74
Ean
4260052191828
Valmistajan kotisivuille
Tuotekuvaus
be quiet! Pure Base 501 Airflow Window - miditorni - ATX
Tuotteen tyyppi
Järjestelmäkaappi
Koko tai muoto
Miditorni
Ikkunoitu sivupaneeli
Kyllä, karkaistu lasi
Väri
Musta
Sisäänrakennetut laitteet
2 x 140 mm PWM -tuuletin
I/O liittimet
1 x USB-C 3.2 Gen 2
2 x USB 3.2
1 x headphone/microphone
Tuetut emolevyt
ATX, microATX, Mini-ITX
Järjestelmäkaapin ominaisuudet
Ilmavirtaukseen optimoitu verkko, integroitu kaapelien hallinta, tukee jopa 360 mm vesijäähdytysjärjestelmää, pystysuora näytönohjain -valmius, tärinänvaimennusmuotoilu, sivupaneelin eristysmatot, irrotettavat pölysuotimet, supports 120/140 mm fans, tukee jopa 360 mm radiatoria edessä, tukee jopa 240 mm:n jäähdytintä yläpaneelissa, palautuspainike, 39,2 litran kapasiteetti, kohinanvaimennus, virtapainike
Virtalähde
Ei virransyöttöä (ATX / PS/2)
Ulkomitat (PxSxK)
23.1 cm x 45 cm x 46.3 cm
Paino
7.2 kg

Yleistä

Koko tai muoto
Miditorni
Ikkunoitu sivupaneeli
Kyllä
Ikkunoidun sivupaneelin materiaali
Karkaistu lasi
Emolevyn maksimikoko
ATX
Tuetut emolevyt
ATX, microATX, Mini-ITX
Sisäisten kiintolevyjen enimmäismäärä
7
Sisäänrakennetut laitteet
2 x 140 mm PWM -tuuletin
Tuotemateriaali
SGCC, ABS-muovi, karkaistu lasi
Väri
Musta
Jäähdytysjärjestelmä
Ylhäällä (top): 120/140 mm tuuletinasennus x 2 / tukee 2 x 120 mm:n tai 2 x 140 mm:n tuuletinta tai 120/240 mm:n jäähdytintä
Etu: 120/140 mm tuuletinasennus x 3 / tukee 2 x 140 mm:n tai 3 x 120 mm:n tuuletinta tai 360/280/240/140/120 mm:n jäähdytintä
Taka: 120/140 mm tuuletinasennus x 1 / tukee 1 x 120/140 mm tuuletinta tai 120/140 mm jäähdytintä
Etu: 140 mm tuuletin x 1 / 1200 kierrosta/min / 57,4 cfm / 21.9 dBA / Pulssileveyden moduloinnin (PWM) tuki, Pure Wings 3
Taka: 140 mm tuuletin x 1 / 1200 kierrosta/min / 57,4 cfm / 21.9 dBA / Pulssileveyden moduloinnin (PWM) tuki, Pure Wings 3
Prosessorin jäähdyttimen enimmäiskorkeus
178 mm
Videokortin enimmäispituus
368 mm
Virransyötön maksimipituus
180 mm
Järjestelmäkaapin ominaisuudet
Ilmavirtaukseen optimoitu verkko, integroitu kaapelien hallinta, tukee jopa 360 mm vesijäähdytysjärjestelmää, pystysuora näytönohjain -valmius, tärinänvaimennusmuotoilu, sivupaneelin eristysmatot, irrotettavat pölysuotimet, supports 120/140 mm fans, tukee jopa 360 mm radiatoria edessä, tukee jopa 240 mm:n jäähdytintä yläpaneelissa, palautuspainike, 39,2 litran kapasiteetti, kohinanvaimennus, virtapainike

Laajennus / Kytkeytyvyys

Laajennusmuistit
5 (yhteensä)/ 5 (vapaa) x sisäinen - 2.5"
2 (yhteensä)/ 2 (vapaa) x sisäinen - 3.5"
Laajennuspaikat
7
Liitännät
1 x USB-C 3.2 Gen 2
2 x USB 3.2
1 x headphone/microphone - miniliitin

Muuta

Sisältyvät lisävarusteet
Kaapelisolmut, ruuvit
Yhteensopivuusstandardit
RoHS 2011/65/EU, Triman, UKCA, REACH, WEEE

Virransyöttö

Virtalähde
Ei virransyöttöä
Teknisten tietojen vaatimustenmukaisuus
ATX / PS/2

Mitat & paino

Leveys
23.1 cm
Syvyys
45 cm
Korkeus
46.3 cm
Paino
7.2 kg

Mitat ja paino pakkauksen kanssa

Lähetysleveys
29.2 cm
Lähetyssyvyys
51.8 cm
Lähetyskorkeus
50.3 cm
Lähetyspaino
8.4 kg
