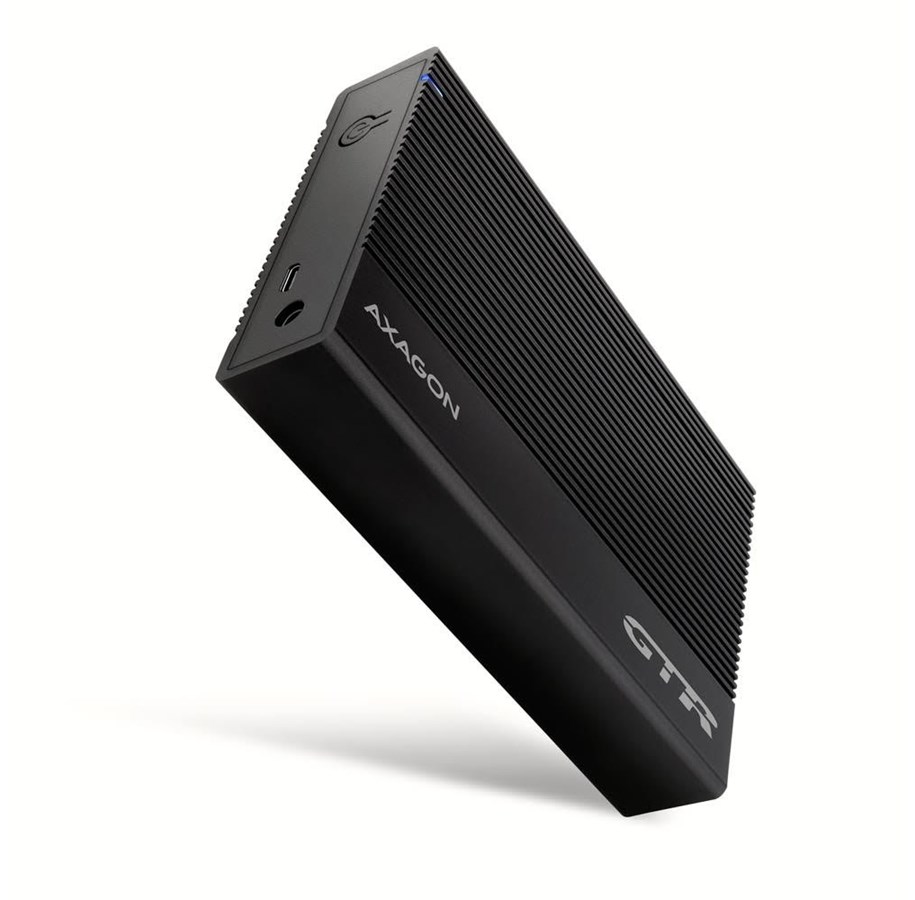

AXAGON SuperSpeed USB-C 5 Gbps Ribbed Box for 3.5" HDD

Ribbed aluminium external AXAGON EE35-GTR RIBBED box with USB 3.2 Gen 1 (USB 3.0) interface for 3.5" SATA HDD. The double-sided USB-C connector on the box together with the supplied USB-C → USB-A cable and USB-A → USB-C adapter enables a reliable connection to a computer.

Thanks to the USB 3.2 Gen 1 interface, the transfer rate is up to 5 Gbit/s. SATA 6 G interface with UASP support allows full speed of modern disks. Reading S.M.A.R.T. information monitors the condition of the external drive. Hibernation supported for connected disk and box.

The inner box frame fixes and protects the inserted disk. The ribbed aluminium box body helps cool and protect the drive. Rubber feet restrict movement on the table. The elegant box surface prevents unwanted fingerprints.

Input:

• USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB
• Speed up to 5 Gbit/s
• Connection via reversible USB type C female connector

Device support:

• SATA III – 6 Gb/s (600 MB/s) interface
• Supports 3.5" HDD
• Max. disk capacity – all without restriction

Other features:

• Compatible with USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0), backward compatible with USB 2.0
• Supports transmission rates 5000 / 480 Mbit/s (SuperSpeed / HighSpeed)
• Compliant with Serial ATA 3.0 (SATA/600), rates up to 6 Gb/s (600 MB/s)
• Compliant with Serial ATA 2.0 (SATA/300), rates up to 3 Gb/s (300 MB/s)
• Compliant with Serial ATA 1.0 (SATA/150), rates up to 1.5 Gb/s (150 MB/s)
• Total bandwidth determined by USB interface used (theor. 5 Gbit/s)
• Supports BOT (Bulk-Only Transport)
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later
• Supports S.M.A.R.T. for disk condition monitoring
• SSD boot support in external box
• Hot Plug support for connecting the device while running
• Full Plug and Play support
• HDD Auto Spindown – automatic spindown after 10 minutes of inactivity
• HDD Turn Off – turns off disk after removing device or putting PC to sleep
• Connection via USB 3.2 Gen 1 type C female connector
• USB-C / USB-A male cable 80 cm included
• USB-A → USB-C adapter included
• Blue LED indicates connection to USB port (permanent light) and data transfer (blinking)
• Box dimensions 174 × 113 × 33 mm
• Weight 300 g

Power supply:

• Compact external AC/DC adapter 12 V – 2 A (24 W) with 150 cm supply cable
• On/Off button on rear panel
• AC adapter dimensions 81 × 44 × 68 mm (incl. plug)
• AC adapter weight 103 g (incl. supply cable)

Supported operating systems:

• MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32-bit and 64-bit versions supported)
• Mac OS X 10.x and later
• Linux with kernel 2.6.x and later
• Note: Drivers are included with supported OS and installed automatically. No other drivers are required or available

Package contains:

• USB-C 3.2 Gen 1 external box for 3.5" SATA disk
• USB-C → USB-A cable 80 cm
• USB-A → USB-C adapter
• Power adapter 100–240 V / 12 V–2 A
• Self-adhesive rubber pads
• Mounting material and screwdriver
• Multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA
• Packed in a cardboard box
