ELDON Seinäkiinnitteinen 400x600x210

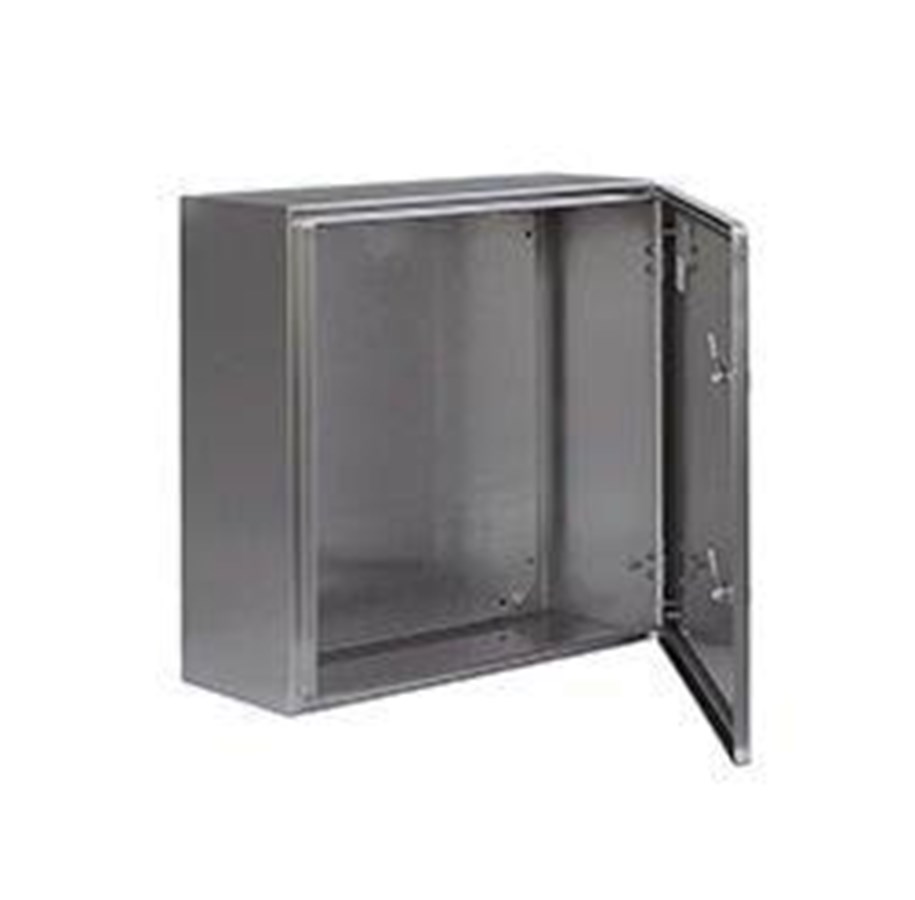

Wall cabinet 400x600x210 ASR0406021 Product description: Description: RFt wall cabinet 400x600x210 Material: AISI 304 polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-bent and fully welded. Door: 130° opening angle. Pre-polished AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a tight seal against dust and water ingress, Inside of the door has four welded threaded studs for mounting accessories Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism made of stainless steel; other versions can be supplied as an accessory Mounting plate : Fixed on M8 screws welded to the back wall of the cabinet In cabinets with a height of over 800 mm, the mounting plate has a bend on all four sides for extra stability When using AMG accessories, the mounting plate can be adjusted in depth Cable entry : No flange openings as standard to maximize sealing and clean lines Protection rating : In accordance with IP66 and NEMA4X,12,and13 IK10 Surface treatment : Polished for240 seconds (average0 .5 microns) Delivery includes : Mounting plate complete with fixing accessoriesand earthing connection.Packed in recycled packaging Additional information Use temperature regulation , ventilation ,and rain cover recommendedfor demanding outdoor use Please refer to general accessory sectionand technical chapterfor further information Technical specifications Color Stainless Steel Width600 Height400 Depth210
