ELDON Seinäkiinnitteinen 600x800x300

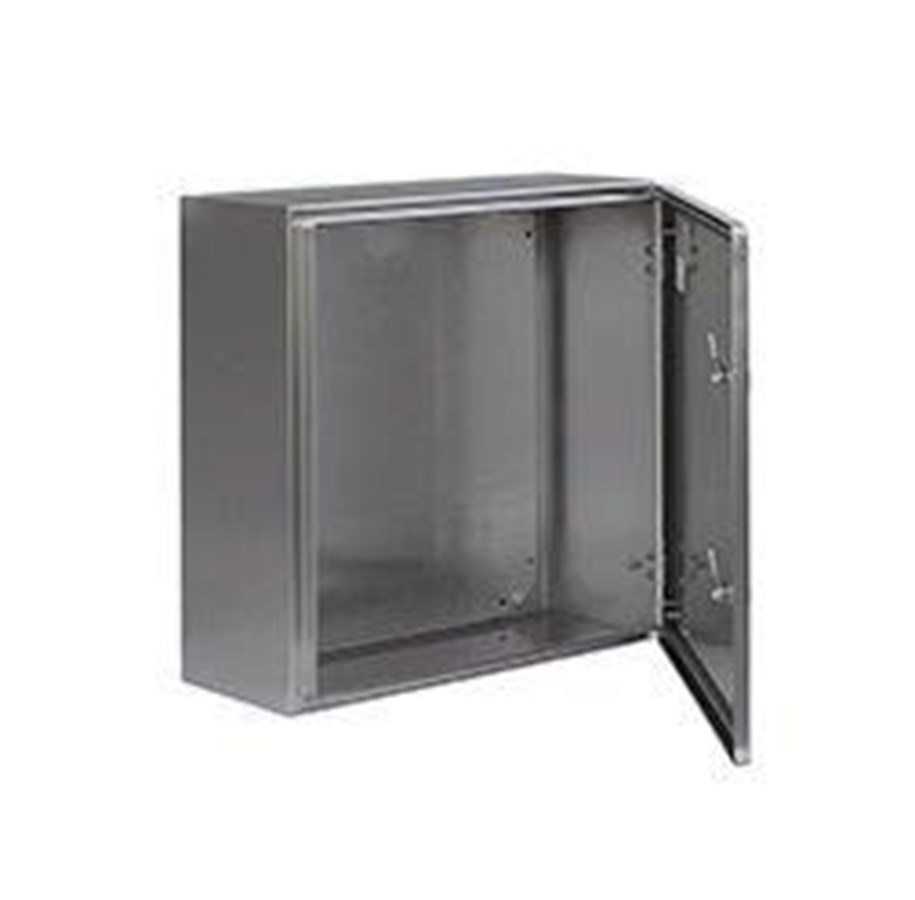

Wall cabinet 600x800x300 ASR0608030 Product description: Description: RFt wall cabinet 600x800x300 Material: AISI 304 brushed stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door: 130° opening angle. Pre-brushed AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a perfect seal against dust and water ingress, IP66 rated protection class according to EN60529 standard, NEMA4X,12 &13 rating according to UL50E standard Locks : Chrome plated DIN lock with anti-vibration mechanism (3 mm thick) as standard; Stainless steel locks or other versions can be supplied as an accessory Mounting plate : Fixed on M8 screws welded to the back of the enclosure In cabinets with height of over than or equal to 800 mm , mounting plate has a fold all around for extra stability When using AMG accessories , mounting plate depth can be adjusted Cable entry : No flange openings as standard for maximum sealing and clean lines Surface treatment : Brushed finish (240s average grain size =0,5 micron) Delivery includes : Mounting Plate complete with mounting hardware & earthing connection . Packed in recyclable packaging material Additional information Use of temperature control , ventilation & rainhood is recommended under demanding outdoor conditions Please refer General Accessories section & Technical Chapter for further details Technical specifications Color Stainless Steel Width [Inch] 31 Height [Inch] 24 Depth [Inch] 12
