ELDON Seinäkiinnitteinen 800x600x210

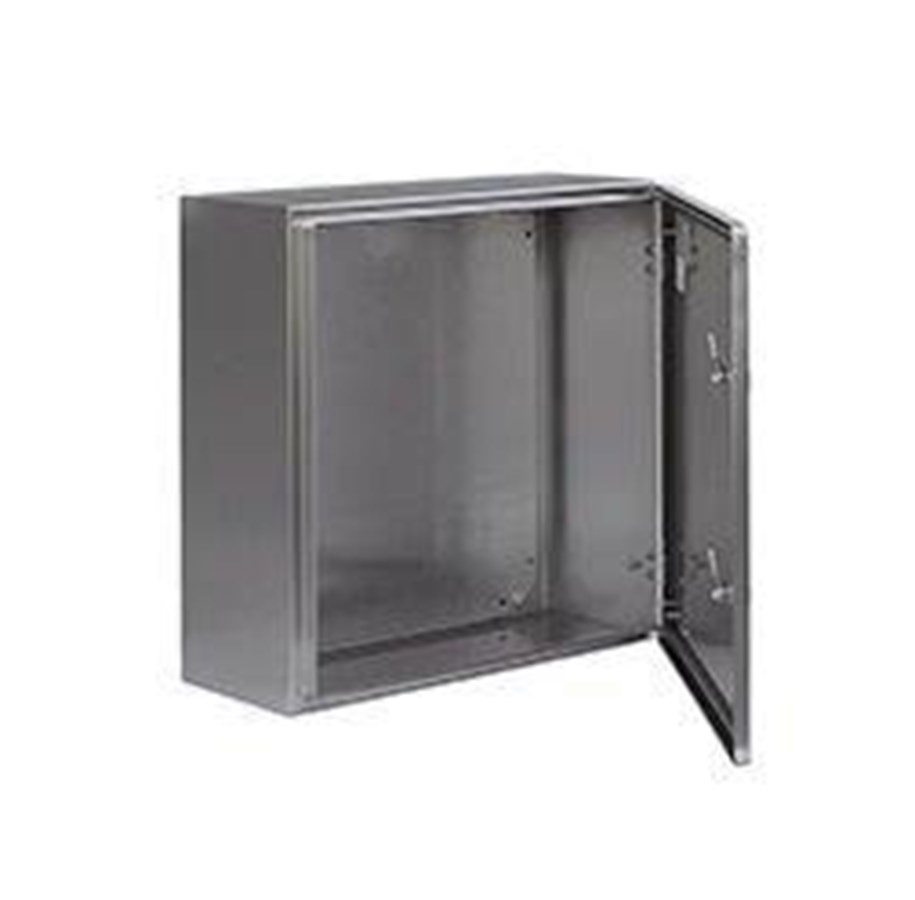

Wall cabinet 800x600x210 ASR0806021 Product description: Description: RFt wall cabinet 800x600x210 Material: AISI 304 polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door: 130° opening angle. Pre-polished AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a perfect seal against dust and water ingress, IP66 rated protection class against dust and water ingress, IK10 rated impact resistance rating Latch mechanism is a chrome-plated DIN lock with anti-vibration mechanism that provides secure locking of the door when closed Mounting plate is fixed to M8 screws welded to the back of the cabinet In cabinets with a height of over than 800 mm, mounting plates have an edge fold on all four sides for extra stability Cable entry without flange openings as standard to maximize sealing performance Surface finish is polished (240s average roughness value Ra =0,5 µm) Delivery includes mounting plate complete with fixing accessories packed in recyclable packaging Additional information Use of temperature control systems, ventilation systems or rain hoods are recommended for demanding outdoor applications Please refer to general accessories section and technical chapter for further information Technical specifications Color Stainless steel Width 600 Height 800 Depth 210
