FIBOX Ekivs63

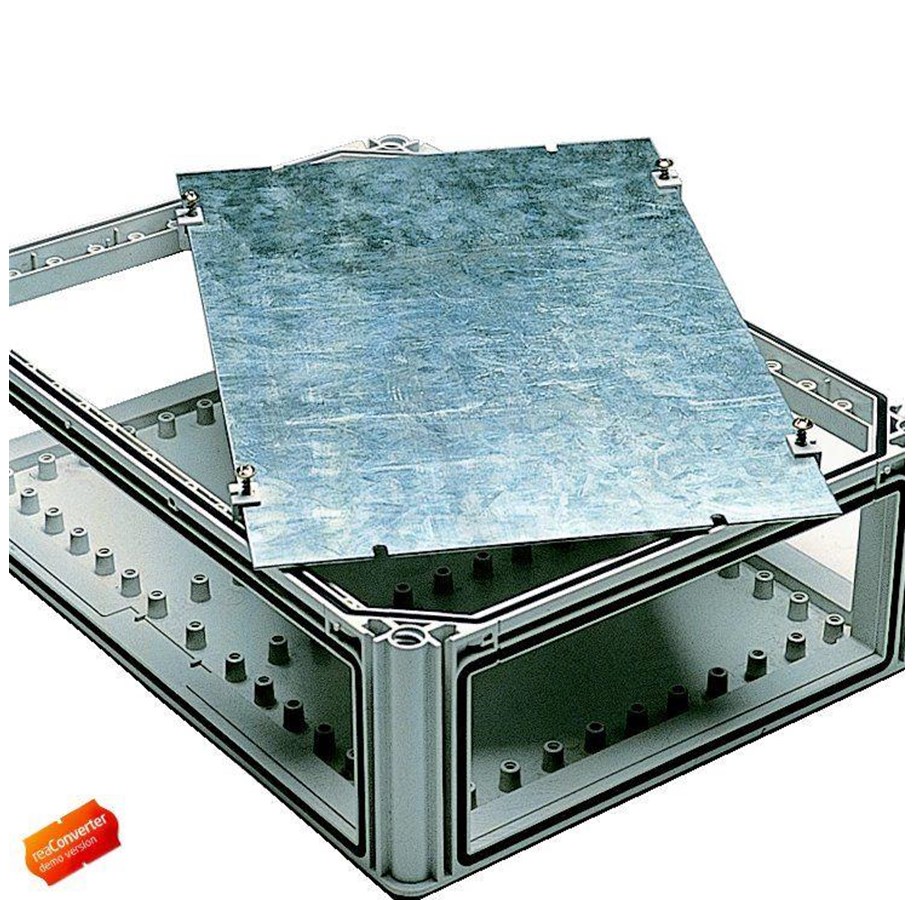

Mounting plate, galvanized steel 580x320x2 for EKIN63. Product description: Protection class according to EN 60529 IP65. Impact resistance according to EN 62262 IK08. Temperature range continuously -20 -- 80 Celsius. Protection: Double insulated. Color Ral 7035.Isolation voltage 690 V AC /800 VDC. Rated current 1250 Amps Short-circuit test 30 kA/0,3 sec..and peak of 65 kA UV resistant according to UL746C Very good Chemical resistant Very good Glow wire tested according to IEC960 degrees Built in accordance with EN60439 Environment and surroundings Halogen-free Flammability classification 94V1
