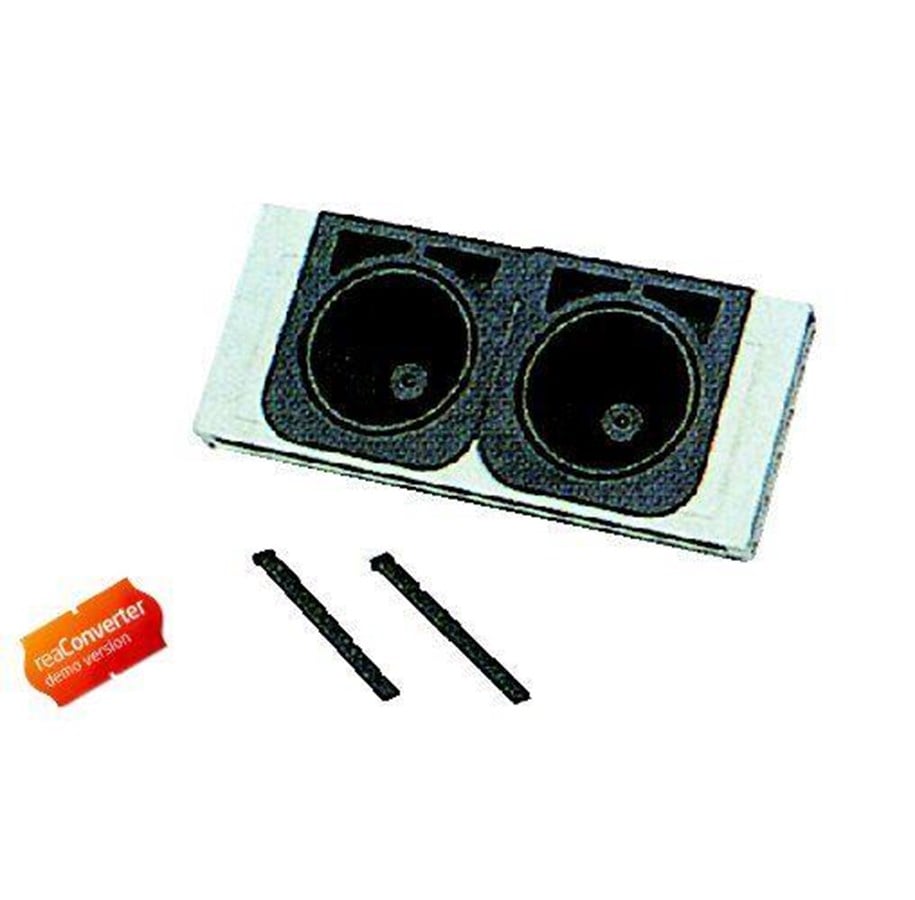

FIBOX F320-2k

F320-2K Cable Entry Flange Product Description: for side size 320 Cable Ø 2x75 mm. Protection class according to EN 60529 IP 65. Impact resistance according to EN 62262 IK 08. Temperature range continuously -20 -- 80 Celsius. Protection: Double insulated. Color Ral 7035.Isolation voltage  690 V AC /800 VDC.Nominal current rating  1250 Amp.Short-circuit test  30 kA/0,3 sec..and peak of 65 kA.UV resistant according to UL746C Very good.Chemical resistant Very good.Glow wire tested according to IEC960 degrees.Built in accordance with EN60439.Environment and surroundings Halogen-free.Flammability classification     94 V1 Technical specifications: Flange opening size:     320 Hole (Ø mm):     2 x75 mm
