LK Upotettu meter cabinet Tyyppi pme 150-l

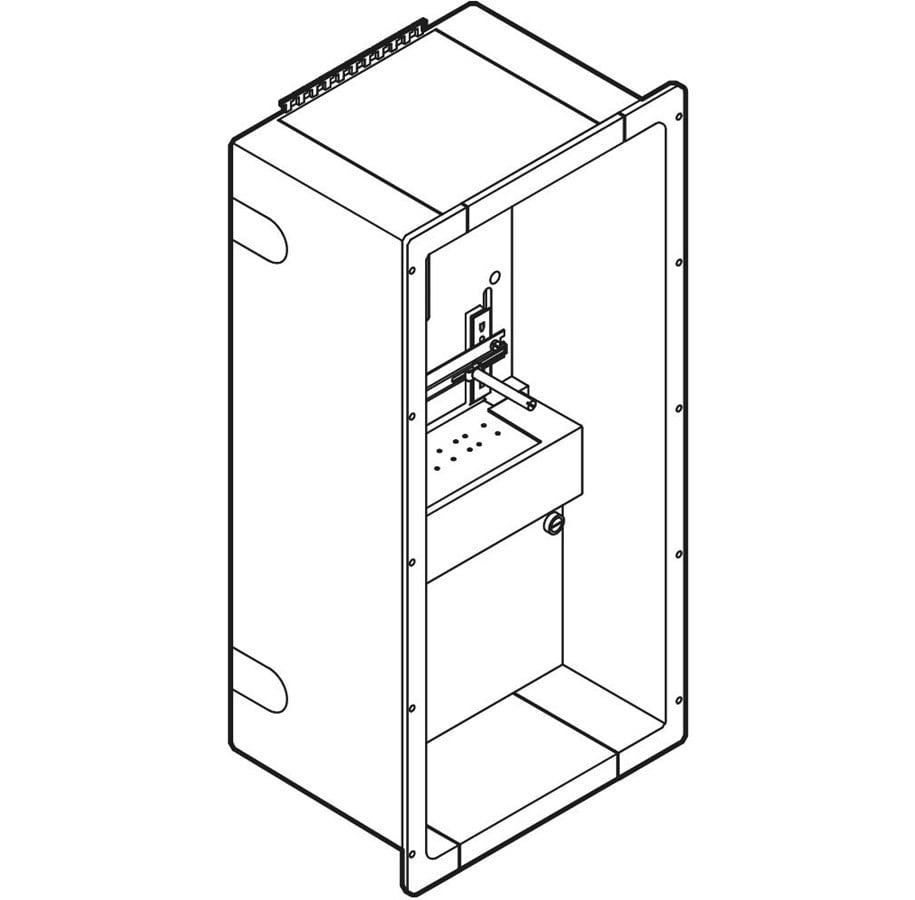

Meter board PME150-l for connection of wires. Product description: Application: Designed for flush mounting in sheet walls or masonry. When mounted in masonry, the installation box is secured with screws through the holes located on the edge of the box. When mounted in a sheet wall, use wall brackets. Can be assembled horizontally or vertically and can also be combined with PGSE150-18. For looping earth wire, branching clamp 169D1217 can be used. Cover set must be ordered separately.Construction: Consists of an installation box, base frame with meter terminal block, cover frame and terminal cover plate.The installation box is equipped with removable cable covers at top and bottom as well as knockout sheets on the back and sides of the installation box.The cover cap has sealable locking screws.Technical data:Rated current: Max 80 A.Enclosure class: IP20D.Insulation class: Fully insulated.Rated voltage : 400 V a.c.Ambient temperature : -10 °C to +35 °C.Terminals : Cu 4-25 mm2 , Al 16-25 mm2 only solid.Loop option : Cu1x16mm2+1x10mm2.Al not allowed.Earth loop connection : Branching clamp169D1217 can be used.Standards : FR2000.Electronic manual available online catalog.Technical specificationsTerminals:Cu4-25mm2 , Al16-25mm2 only solid.Ambient temperature (°C): -10°C to +35°C.Rated current:max80A.Insulation class:Fully insulated
