Tuotenumero: 2864957

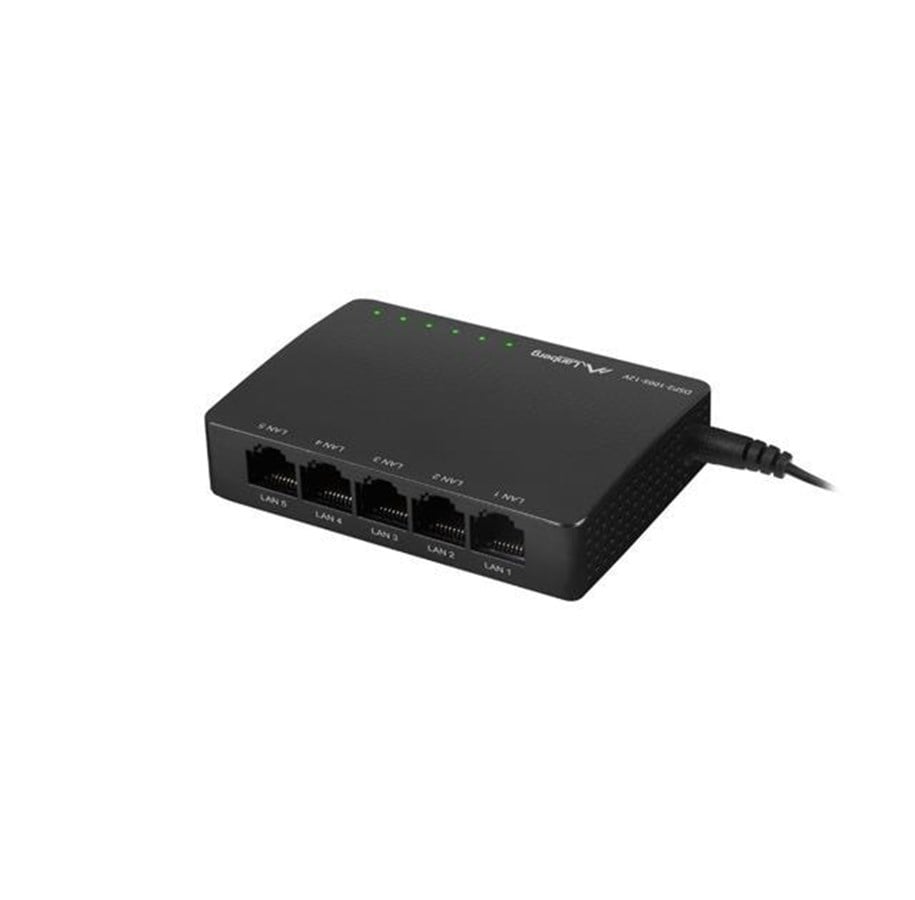

Lanberg DSP2-1005-12V - kytkin - 5 porttia - hallitsematon
Kytkin, hallitsematon, 5 x 10/100/1000, työpöytä, seinään asennettava, AC 100, 240 V
Varastossa
16,37 €
13,04 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
2 kpl
Varastossa - 2-5 arkipäivän toimitus
Lanberg DSP2-1005 is a compact, unmanaged desktop switch equipped with five Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug-and-Play operation principles. Product provides switching functions for five 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI/MDI-X support.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
Valmistaja
Tuotenumero
2864957
Malli
DSP2-1005-12V
Ean
5901969424164
Valmistajan kotisivuille
Tuotekuvaus
Lanberg DSP2-1005-12V - kytkin - 5 porttia - hallitsematon
Laitteen tyyppi
Kytkin - 5 porttia - hallitsematon
Alatyyppi
Gigabit Ethernet
Portit
5 x 10/100/1000
Suoritusteho
Vaihtokapasiteetti: 10 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
2000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, muovikotelo, Back Pressure Support, tukee passiivista PoE:ta, MAC address learning, MAC address aging
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Virransyöttö
AC 100 - 240 V (50/60 Hz)
Ulkomitat (PxSxK)
9.3 cm x 6.57 cm x 2.23 cm
Paino
140 g
Yleistä
Laitteen tyyppi
Kytkin - 5 porttia - hallitsematon
Kotelon tyyppi
Työpöytä, seinään asennettava
Alatyyppi
Gigabit Ethernet
Portit
5 x 10/100/1000
Suoritusteho
Vaihtokapasiteetti: 10 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
2000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, muovikotelo, Back Pressure Support, tukee passiivista PoE:ta, MAC address learning, MAC address aging
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Suoritin
1 x MediaTek MT7530D
Tilan ilmaisimet
Teho, linkki/toiminta
Laajennus / Kytkeytyvyys
Liitännät
5 x 1000Base-T RJ-45
Virransyöttö
Virtalähde
Ulkoinen virtasovitin
Tuotettu teho
12 V - 0.5 A
Vaadittava jännite
AC 100 - 240 V (50/60 Hz)
Virran kulutus (toiminnassa)
2.64 watti(a)
Muuta
Yhteensopivuusstandardit
Plug and Play, RoHS, WEEE
Mitat & Paino
Leveys
9.3 cm
Syvyys
6.57 cm
Korkeus
2.23 cm
Paino
140 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
40 °C
Toimintakosteus
0 - 85%
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
