Tuotenumero: 2864956

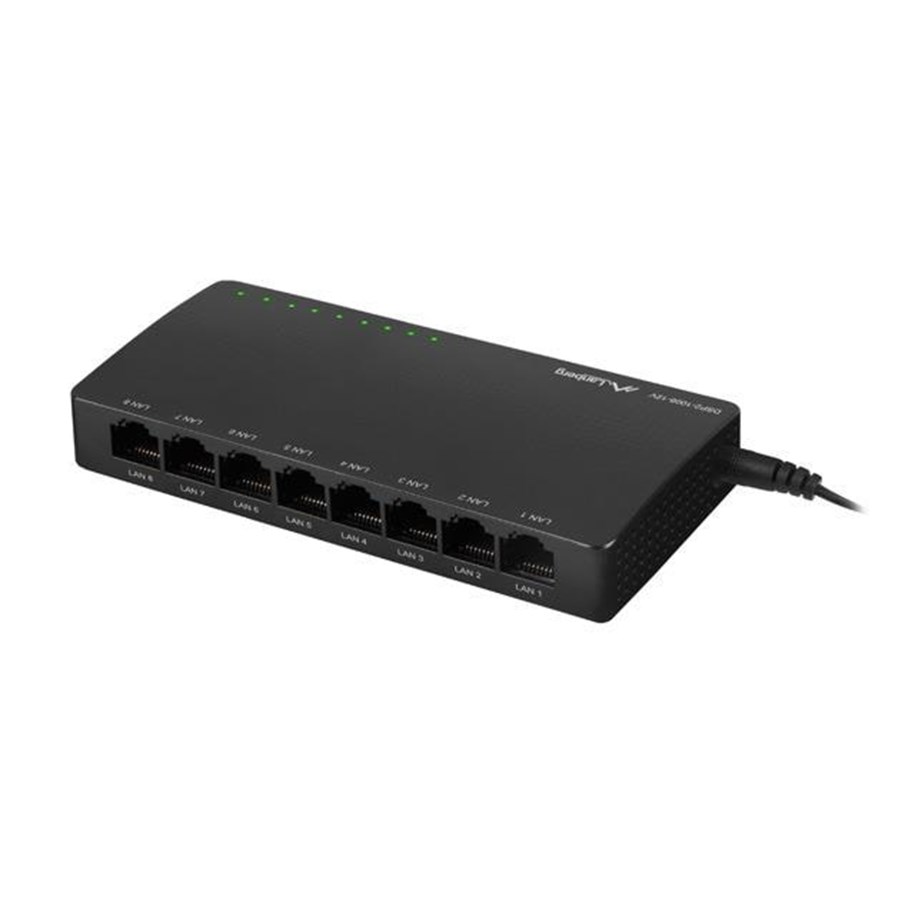

Lanberg DSP2-1008-12V 8-Port Gigabit Ethernet Unmanaged Switch
Kytkin, hallitsematon, 8 x 10/100/1000, työpöytä, seinään asennettava, AC 100, 240 V
25,21 €
20,09 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 4-7 arkipäivää toimitukseen
Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with eight Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug-and-Play operation principles. Product provides switching functions for eight 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI/MDI-X support.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.
Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.
Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.
Valmistaja
Tuotenumero
2864956
Malli
DSP2-1008-12V
Ean
5901969424171
Valmistajan kotisivuille
Tuotekuvaus
Lanberg DSP2-1008-12V - kytkin - 8 porttia - hallitsematon
Laitteen tyyppi
Kytkin - 8 porttia - hallitsematon
Alatyyppi
Gigabit Ethernet
Portit
8 x 10/100/1000
Suoritusteho
Vaihtokapasiteetti: 16 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
4000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, muovikotelo, Back Pressure Support, tukee passiivista PoE:ta, MAC address learning, MAC address aging
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Virransyöttö
AC 100 - 240 V (50/60 Hz)
Ulkomitat (PxSxK)
13.7 cm x 8.9 cm x 2.8 cm
Paino
240 g
Yleistä
Laitteen tyyppi
Kytkin - 8 porttia - hallitsematon
Kotelon tyyppi
Työpöytä, seinään asennettava
Alatyyppi
Gigabit Ethernet
Portit
8 x 10/100/1000
Suoritusteho
Vaihtokapasiteetti: 16 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
4000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, muovikotelo, Back Pressure Support, tukee passiivista PoE:ta, MAC address learning, MAC address aging
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Suoritin
1 x Realtek Semiconductor RTL8370N-VB
Tilan ilmaisimet
Teho, linkki/toiminta
Laajennus / Kytkeytyvyys
Liitännät
8 x 1000Base-T RJ-45
Virransyöttö
Virtalähde
Ulkoinen virtasovitin
Tuotettu teho
12 V - 0.5 A
Vaadittava jännite
AC 100 - 240 V (50/60 Hz)
Virran kulutus (toiminnassa)
4.53 watti(a)
Muuta
Yhteensopivuusstandardit
Plug and Play, RoHS, WEEE
Mitat & Paino
Leveys
13.7 cm
Syvyys
8.9 cm
Korkeus
2.8 cm
Paino
240 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
40 °C
Toimintakosteus
0 - 85%
