Tuotenumero: 2924446

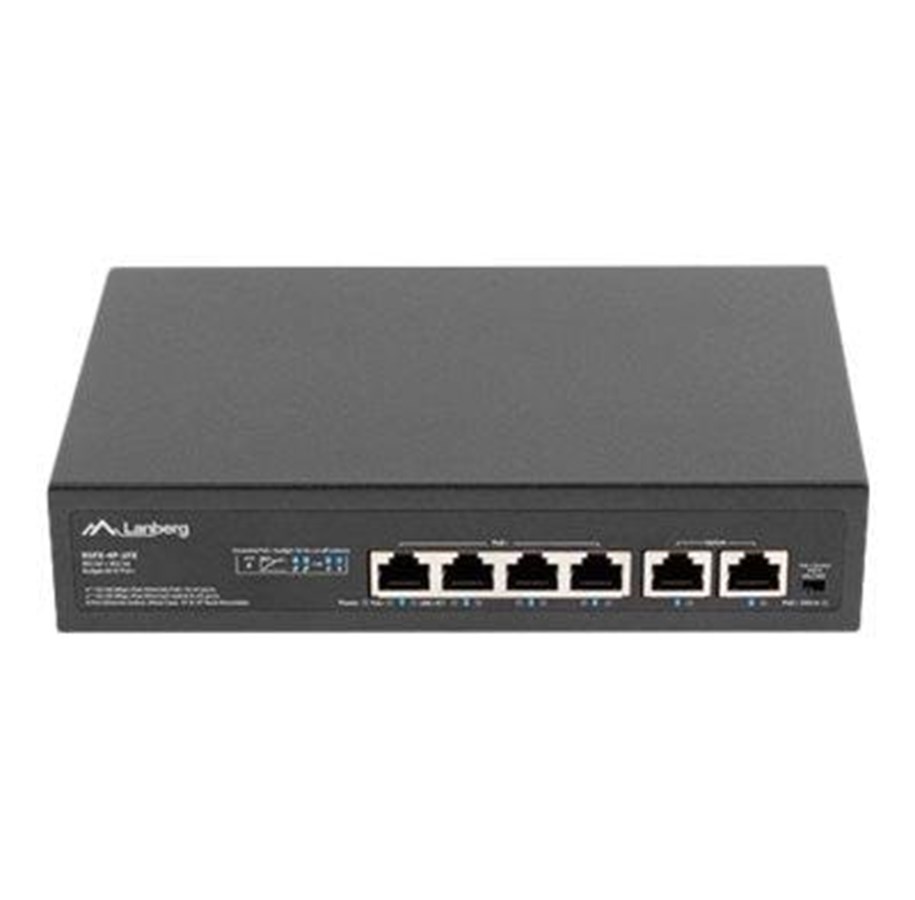

Lanberg RSFE-4P-2FE-60 - kytkin - 6 porttia - hallitsematon
Kytkin, hallitsematon, 2 x 10/100 (uplink) + 4 x 10/100 (PoE+), työpöytä, seinään asennettava, PoE+ (60 W)
27,98 €
22,30 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tilaustuote, 7-10 arkipäivää toimitukseen
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-4P-2FE-60 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Valmistaja
Tuotenumero
2924446
Malli
RSFE-4P-2FE-60
Ean
5901969428797
Valmistajan kotisivuille
Tuotekuvaus
Lanberg RSFE-4P-2FE-60 - kytkin - 6 porttia - hallitsematon
Laitteen tyyppi
Kytkin - 6 porttia - hallitsematon
Kotelon tyyppi
1U
Alatyyppi
Fast Ethernet
Portit
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
60 W
Suoritusteho
Vaihtokapasiteetti: 1,2 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
1000 syöttöä
Ominaisuudet
4KV ESD Protector, vuonhallinta
Yhteensopivuusstandardit
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Virransyöttö
AC 120/230 V (50/60 Hz)
Ulkomitat (PxSxK)
20 cm x 11.8 cm x 4.445 cm
Paino
730 g
Yleistä
Laitteen tyyppi
Kytkin - 6 porttia - hallitsematon
Kotelon tyyppi
Työpöytä, seinään asennettava 1U
Alatyyppi
Fast Ethernet
Portit
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
60 W
Suoritusteho
Vaihtokapasiteetti: 1,2 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
1000 syöttöä
Ominaisuudet
4KV ESD Protector, vuonhallinta
Yhteensopivuusstandardit
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Laajennus / Kytkeytyvyys
Liitännät
4 x 100Base-TX RJ-45 PoE+ - 30 W
2 x 100Base-TX RJ-45 maa-satelliittiyhteys
2 x 100Base-TX RJ-45 maa-satelliittiyhteys
Virransyöttö
Virtalähde
Sisäinen virtalähde
Vaadittava jännite
AC 120/230 V (50/60 Hz)
Virran kulutus (toiminnassa)
65 watti(a)
Muuta
Telineasennuspakkaus
Sisältää
Yhteensopivuusstandardit
RoHS, IP20
Mitat & Paino
Leveys
20 cm
Syvyys
11.8 cm
Korkeus
4.445 cm
Paino
730 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
40 °C
Vähimmäismivarastointilämpötila
-40 °C
Enimmäisvarastointilämpötila
70 °C
