Tuotenumero: 2224007

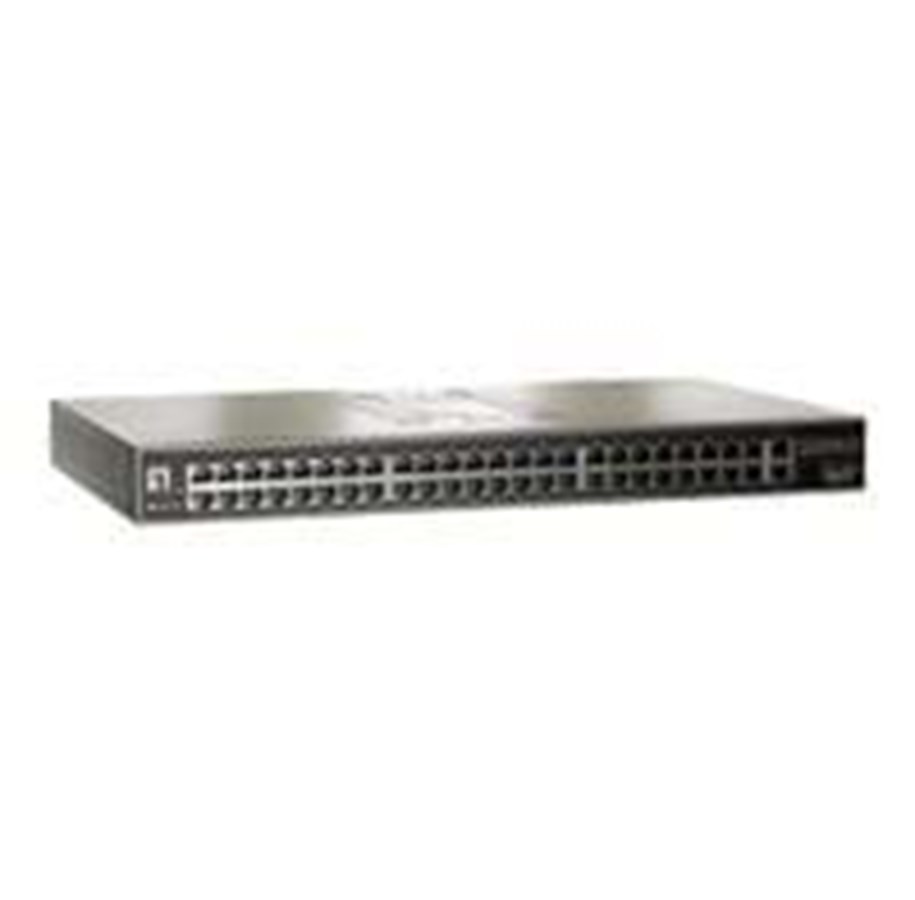

LevelOne GSW-5150
Kytkin, 48 x 10/100 + 1 x SFP + 2 x 10/100/1000, työpöytä
Tuotetta ei ole saatavilla tällä hetkellä
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-5150 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
GSW-5150 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.
GSW-5150 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or uplink ports. Each port can be used as general ports or uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
GSW-5150 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.
GSW-5150 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or uplink ports. Each port can be used as general ports or uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
Valmistaja
Tuotenumero
2224007
Malli
GSW-5150
Ean
4015867143131
Valmistajan kotisivuille
Tuotekuvaus
LevelOne GSW-5150 - kytkin - 48 porttia
Laitteen tyyppi
Kytkin - 48 porttia
Alatyyppi
Fast Ethernet
Portit
48 x 10/100 + 1 x SFP + 2 x 10/100/1000
MAC osoitetaulukon koko (Address Table Size)
8000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), pakettien suodatusreititin, laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Virransyöttö
AC 120/230 V (50/60 Hz)
Ulkomitat (PxSxK)
44 cm x 26 cm x 4.4 cm
Yleistä
Laitteen tyyppi
Kytkin - 48 porttia
Kotelon tyyppi
Työpöytä
Alatyyppi
Fast Ethernet
Portit
48 x 10/100 + 1 x SFP + 2 x 10/100/1000
MAC osoitetaulukon koko (Address Table Size)
8000 syöttöä
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), pakettien suodatusreititin, laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Käyttömuisti (RAM)
128 kt
Tilan ilmaisimet
Teho, tila, linkki/toiminta
Laajennus / Kytkeytyvyys
Liitännät
48 x 100Base-TX RJ-45
2 x 1000Base-T RJ-45
1 x SFP (mini-GBIC)
2 x 1000Base-T RJ-45
1 x SFP (mini-GBIC)
Virransyöttö
Virtalähde
Sisäinen virtalähde
Vaadittava jännite
AC 120/230 V (50/60 Hz)
Muuta
Telineasennuspakkaus
Sisältää
Yhteensopivuusstandardit
Plug and Play, FCC Luokka A -sertifioitu
Mitat & Paino
Leveys
44 cm
Syvyys
26 cm
Korkeus
4.4 cm
