Tuotenumero: 3356476

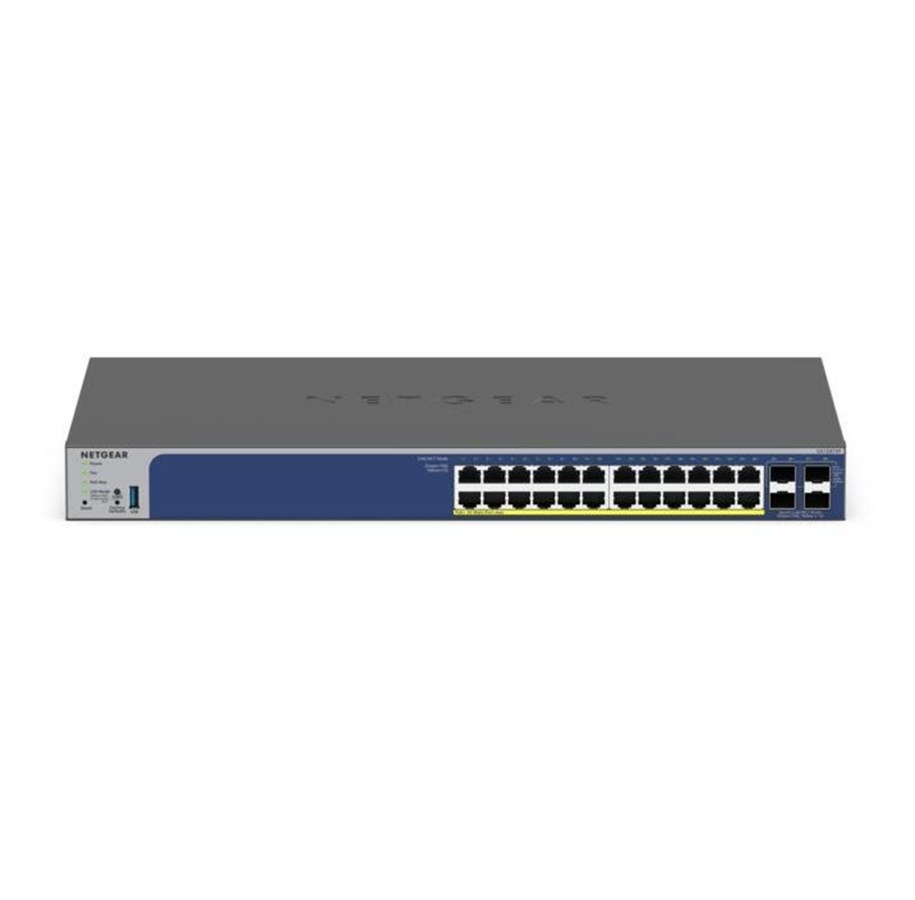

Netgear S3300-28X (GS728TX) - 28-Port Gigabit Ethernet Stackable Smart Switch with 2 Copper 10G and 2 SFP+ 10G Ports
V3, kytkin, L3 Lite, smart, 24 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+, työpöytä, telineeseen asennettava
356,00 €
283,67 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 5-8 arkipäivää toimitukseen
The ProSAFE S3300 Series are Gigabit Stackable Smart Switches of 4 10G ports, which can be used for uplinks and/or stacking between other S3300 switches. Dependable switched LAN network design mandates an architecture that can both scale as organization networks grow-and be flexible enough to provide support for faster server and storage connections needs. As SMBs produce and consume more data, Gigabit to the desktop increasingly needs to be underpinned with 10GbE connectivity to the core to ensure a consistent, seamless user experience. This generation of switches provides SMB customers with the most cost-effective 10G connections between the access and aggregation layer of the network. The ProSAFE S3300 Smart Stackable Series is the blueprint for a dependable future-proof network. From greenfield network requirements to network refresh projects, the ProSAFE S3300 series sets higher standards in defining flexibility and choice for SMBs looking to leverage reliable, future proof technologies at affordable price points. Packed with rich enterprise-class feature sets and advanced security measures, it is the only advanced smart switch platform to offer both dedicated 10GBase-T and SFP+ uplink and stacking connectivity in both PoE+ and non PoE configurations - a combination that delivers an unrivaled and powerful interconnect solution for access to core connectivity. With a choice of 24 or 48 port models, these switches can deliver on demanding tasks such as data replication and backup, video on demand and high volume transaction processing. Up to 6 switches across the series can be stacked for a total of 288 Gigabit access network ports, with 40Gbps stacking bandwidth and full redundancy for unsurpassed reliability. Add in the ability to deliver PoE+ to every port with supplemental RPS and application diversity is readily supported from PTZ IP camera surveillance solutions through to high powered wireless access points and VoIP phones. The inclusion of 10GBase-T uplink capability as standard ensures an affordable way to leverage existing copper installations - if Gigabit speeds and link aggregation meets current requirements, simply migrate to 10GbE connectivity at a pace and time to suit your needs. With lifetime warranty, lifetime NBD and lifetime online technical chat to back you up, you'll have access to an extensive support service to help protect your investment and reduce downtime risk over the long term.
Valmistaja
Tuotenumero
3356476
Malli
GS728TX-300EUS
Ean
606449173147
Valmistajan kotisivuille
Ota yhteyttä valmistajaan
Tuotekuvaus
NETGEAR Smart S3300-28X - v3 - kytkin - 28 porttia - smart - telineeseen asennettava
Laitteen tyyppi
Kytkin - 28 porttia - L3 Lite - smart - pinottava
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
24 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
Suoritusteho
Kaistanleveys: 128 Gbps
Edelleenlähetysarvo (64 tavun paketit): 95.2 Mpps
Edelleenlähetysarvo (64 tavun paketit): 95.2 Mpps
Kapasiteetti
Tuetut VLAN-verkot: 256
ACL-sisääntulot: 100
IPv4-reitit (staattinen): 32
DHCP snooping -pääsyt: 8000
ARP-sisäänmenot: 512
Lähetyspöydän sisäänpääsyt (Multicast): 512
Etusijajonot per portti: 8
ACL-sisääntulot: 100
IPv4-reitit (staattinen): 32
DHCP snooping -pääsyt: 8000
ARP-sisäänmenot: 512
Lähetyspöydän sisäänpääsyt (Multicast): 512
Etusijajonot per portti: 8
MAC osoitetaulukon koko (Address Table Size)
16 000 syöttöä
Jumbo-kehystuki
9KB
Reititysprotokolla
IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Kaukohallintaprotokolla
IPv4, IPv6, RADIUS, DHCP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TCP/IP, UDP, HTTPS, TFTP, HTTP, Syslog
Ominaisuudet
Vuonhallinta, väylöitys, VLAN-tuki, IGMP snooping, Syslog tuki, DoS hyökkäyksen esto, ALG tuki, portin peilaus (port mirroring), DiffServ tuki, WRR-jonotus, laittaa muistiin ja välittää edelleen (store and forward), Broadcast Storm Control, IPv6-tuki, Multicast Storm Control, Unicast Storm Control, SNTP-tuki, WRED, STP-tuki, RSTP-tuki, MSTP-tuki, DHCP snooping, ACL-tuki, QoS, MLD-snooping, DAI, DHCP-asiakas, Energy Efficient Ethernet, kaksi laitteistokuvaa, SPQ, CoS, IP source guard
Yhteensopivuusstandardit
IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af
Virransyöttö
(50/60 Hz)
Ulkomitat (PxSxK)
44 cm x 25.7 cm x 4.3 cm
Paino
3.14 kg
Lokalisointi
Euroopan unioni, Yhdistynyt kuningaskunta
Yleistä
Laitteen tyyppi
Kytkin - 28 porttia - L3 Lite - smart - pinottava
Kotelon tyyppi
Työpöytä, telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
24 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
Suoritusteho
Kaistanleveys: 128 Gbps
Edelleenlähetysarvo (64 tavun paketit): 95.2 Mpps
Edelleenlähetysarvo (64 tavun paketit): 95.2 Mpps
Kapasiteetti
Tuetut VLAN-verkot: 256
ACL-sisääntulot: 100
IPv4-reitit (staattinen): 32
DHCP snooping -pääsyt: 8000
ARP-sisäänmenot: 512
Lähetyspöydän sisäänpääsyt (Multicast): 512
Etusijajonot per portti: 8
ACL-sisääntulot: 100
IPv4-reitit (staattinen): 32
DHCP snooping -pääsyt: 8000
ARP-sisäänmenot: 512
Lähetyspöydän sisäänpääsyt (Multicast): 512
Etusijajonot per portti: 8
MAC osoitetaulukon koko (Address Table Size)
16 000 syöttöä
Jumbo-kehystuki
9KB
Pinon enimmäisyksikkömäärä
6
Reititysprotokolla
IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Kaukohallintaprotokolla
IPv4, IPv6, RADIUS, DHCP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TCP/IP, UDP, HTTPS, TFTP, HTTP, Syslog
Tunnistusmenetelmä
RADIUS, TACACS+
Ominaisuudet
Vuonhallinta, väylöitys, VLAN-tuki, IGMP snooping, Syslog tuki, DoS hyökkäyksen esto, ALG tuki, portin peilaus (port mirroring), DiffServ tuki, WRR-jonotus, laittaa muistiin ja välittää edelleen (store and forward), Broadcast Storm Control, IPv6-tuki, Multicast Storm Control, Unicast Storm Control, SNTP-tuki, WRED, STP-tuki, RSTP-tuki, MSTP-tuki, DHCP snooping, ACL-tuki, QoS, MLD-snooping, DAI, DHCP-asiakas, Energy Efficient Ethernet, kaksi laitteistokuvaa, SPQ, CoS, IP source guard
Yhteensopivuusstandardit
IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af
Suoritin
: 400 MHz
Käyttömuisti (RAM)
256 Mt
Flash-muisti
64 Mt
Tilan ilmaisimet
Linkki/toiminta, portin lähetysnopeus, teho, tuuletin, PoE max
Laajennus / Kytkeytyvyys
Liitännät
24 x 10/100/1000 Base-T RJ-45
2 x 10GBase-T RJ-45 uplink/pinoaminen
2 x 10Gbit LAN SFP+ uplink/pinoaminen
1 x USB 2.0 Type A
2 x 10GBase-T RJ-45 uplink/pinoaminen
2 x 10Gbit LAN SFP+ uplink/pinoaminen
1 x USB 2.0 Type A
Virransyöttö
Virtalähde
Sisäinen virtalähde
Vaadittava jännite
(50/60 Hz)
Virran kulutus (toiminnassa)
28.18 watti(a)
Ominaisuudet
Redundant Power System (RPS) liitin
Muuta
Telineasennuspakkaus
Sisältää
Keskimääräinen vikaväli (MTBF)
278,559 tuntia
Yhteensopivuusstandardit
CISPR 22 Class A, cUL, EN 60950, IEC 950, UL 1950, EN55024, CSA 22.2 No. 950, EN 55022 Class A, EN50082-1, CCC, RoHS, FCC Part 15 A, C-Tick Class A, VCCI Class A
Lokalisointi
Euroopan unioni, Yhdistynyt kuningaskunta
Mitat & Paino
Leveys
44 cm
Syvyys
25.7 cm
Korkeus
4.3 cm
Paino
3.14 kg
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
0 - 90% (höyrystymätön)
Vähimmäismivarastointilämpötila
-20 °C
Enimmäisvarastointilämpötila
70 °C
Varastointikosteus
0 - 95% (höyrystymätön)
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
