Tuotenumero: 2597354

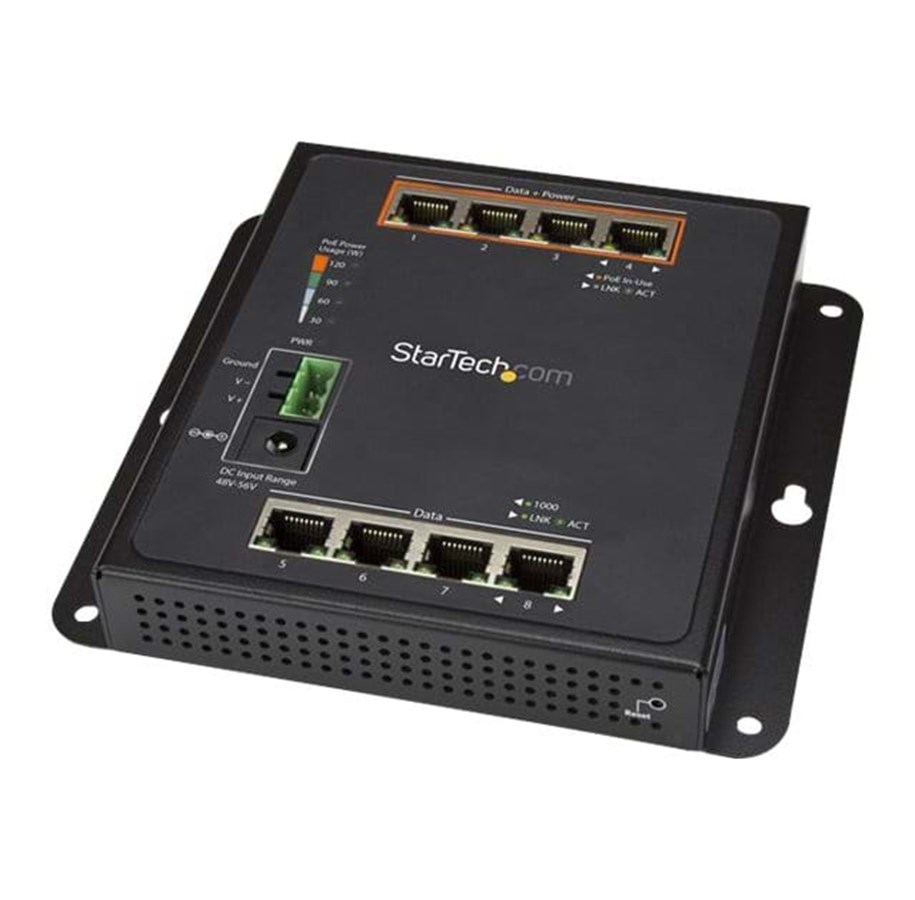

StarTech.com 8-portin (4 PoE+) Gigabit Ethernet-kytkin - hallittu - seinäkiinnitys etupaneelilla
Managed, Wall Mount with Front Access, Kytkin, Hallinnoitu, 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+), seinään asennettava, PoE+ (120 W), tasavirta
406,49 €
323,90 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 6-9 arkipäivää toimitukseen
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.
The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).
With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.
The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).
With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
Valmistaja
Tuotenumero
2597354
Malli
IES81GPOEW
Ean
0065030871112
Valmistajan kotisivuille
Tuotekuvaus
Startech Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - Managed Network Switch (IES81GPOEW) - kytkin - 8 porttia - Hallinnoitu
Laitteen tyyppi
Kytkin - 8 porttia - Hallinnoitu
Alatyyppi
Gigabit Ethernet
Portit
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
120 W
Suoritusteho
Tiedonsiirtonopeus: 2 Gbps
Kapasiteetti
Välimuistin kapasiteetti (Mt): 0.512
Jumbo-kehystuki
9KB
Reititysprotokolla
IGMP, MLD
Kaukohallintaprotokolla
HTTP
Ominaisuudet
Layer 2 -kytkennät, IPv6-tuki, kaksisuuntainen toiminto, seinäasennettava, TFTP-tuki, tagged VLAN, 6KV ESD Protector, 802.1x todennus, ICMP, 6KV EFT-suoja
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Virransyöttö
DC 12 - 48 V
Ulkomitat (PxSxK)
14.8 cm x 13.4 cm x 2.5 cm
Paino
625 g
Väri
Musta
Yleistä
Laitteen tyyppi
Kytkin - 8 porttia - Hallinnoitu
Kotelon tyyppi
Seinään asennettava
Alatyyppi
Gigabit Ethernet
Portit
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
120 W
Suoritusteho
Tiedonsiirtonopeus: 2 Gbps
Kapasiteetti
Välimuistin kapasiteetti (Mt): 0.512
Jumbo-kehystuki
9KB
Reititysprotokolla
IGMP, MLD
Kaukohallintaprotokolla
HTTP
Ominaisuudet
Layer 2 -kytkennät, IPv6-tuki, kaksisuuntainen toiminto, seinäasennettava, TFTP-tuki, tagged VLAN, 6KV ESD Protector, 802.1x todennus, ICMP, 6KV EFT-suoja
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Tilan ilmaisimet
Teho, PoE
Laajennus / Kytkeytyvyys
Liitännät
4 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x päätelohko
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x päätelohko
Virransyöttö
Vaadittava jännite
DC 12 - 48 V
Muuta
Väri
Musta
Sisältyvät lisävarusteet
4 magneettia, DIN-rail mounting kit, 4 ruuvia, kiinnitysnastat, lukitusnastat, 4 aluslevyä, 8 RJ45-pölysuojusta
Keskimääräinen vikaväli (MTBF)
>100,000 tuntia
Yhteensopivuusstandardit
FCC, RoHS, WEEE, IP30, RCM
Mitat & Paino
Leveys
14.8 cm
Syvyys
13.4 cm
Korkeus
2.5 cm
Paino
625 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
-40 °C
Enimmäiskäyttölämpötila
75 °C
Toimintakosteus
5 - 95 % (ei tiivistetty)
