Tuotenumero: 2597355

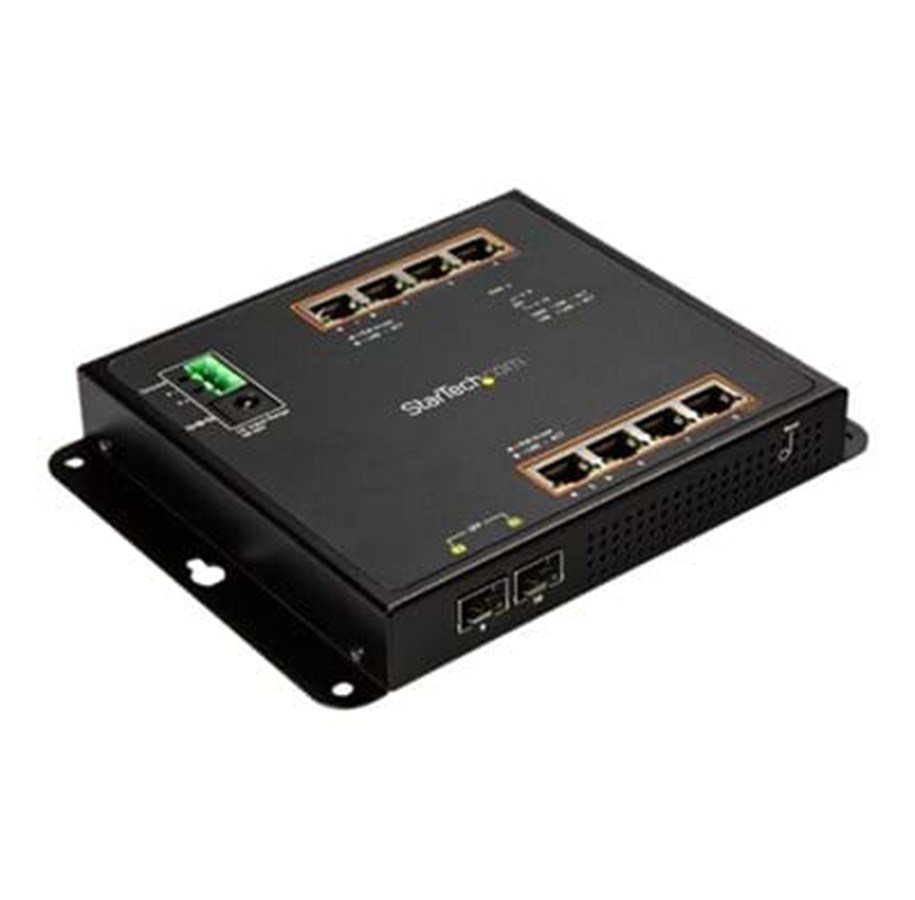

StarTech.com 8-portin PoE+ Gigabit Ethernet-kytkin ja 2 SFP-yhteyttä - hallittu - seinäkiinnitys etupaneelilla.
Managed, Wall Mount with Front Access, Kytkin, Hallinnoitu, 8 x 10/100/1000 (PoE+) + 2 x SFP, DIN-rail asennettava, seinään asennettava, PoE+ (200 W)
496,97 €
395,99 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tilaustuote, 12-15 arkipäivää toimitukseen
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
Valmistaja
Tuotenumero
2597355
Malli
IES101GP2SFW
Ean
0065030871198
Valmistajan kotisivuille
Tuotekuvaus
Startech Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - kytkin - 10 porttia - Hallinnoitu
Laitteen tyyppi
Kytkin - 10 porttia - Hallinnoitu
Alatyyppi
Gigabit Ethernet
Portit
8 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
200 W
Suoritusteho
Tiedonsiirtonopeus: 2 Gbps
Jumbo-kehystuki
9KB
Reititysprotokolla
IGMP, MLD
Kaukohallintaprotokolla
HTTP
Ominaisuudet
Vuonhallinta, Layer 2 -kytkennät, IPv6-tuki, kaksisuuntainen toiminto, seinäasennettava, TFTP-tuki, tagged VLAN, 6KV ESD Protector, 802.1x todennus, ICMP, 6KV EFT-suoja
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Ulkomitat (PxSxK)
14.8 cm x 13.4 cm x 2.5 cm
Paino
496 g
Väri
Musta
Suunniteltu malleihin
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST
Yleistä
Laitteen tyyppi
Kytkin - 10 porttia - Hallinnoitu
Kotelon tyyppi
DIN-kiskoon kiinnitettävä, seinään asennettava
Alatyyppi
Gigabit Ethernet
Portit
8 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
200 W
Suoritusteho
Tiedonsiirtonopeus: 2 Gbps
Jumbo-kehystuki
9KB
Reititysprotokolla
IGMP, MLD
Kaukohallintaprotokolla
HTTP
Ominaisuudet
Vuonhallinta, Layer 2 -kytkennät, IPv6-tuki, kaksisuuntainen toiminto, seinäasennettava, TFTP-tuki, tagged VLAN, 6KV ESD Protector, 802.1x todennus, ICMP, 6KV EFT-suoja
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Tilan ilmaisimet
Teho
Laajennus / Kytkeytyvyys
Liitännät
8 x 1000Base-TX RJ-45 PoE+ - 30 W
2 x 1000Base-TX SFP
1 x päätelohko
2 x 1000Base-TX SFP
1 x päätelohko
Muuta
Väri
Musta
Sisältyvät lisävarusteet
4 magneettia, DIN-rail mounting kit, 4 ruuvia, 2 SFP-pölysuojusta, kiinnitysnastat, lukitusnastat, 4 aluslevyä, 8 RJ45-pölysuojusta
Keskimääräinen vikaväli (MTBF)
>100,000 tuntia
Yhteensopivuusstandardit
FCC, RoHS, WEEE, IP30, RCM
Mitat & Paino
Leveys
14.8 cm
Syvyys
13.4 cm
Korkeus
2.5 cm
Paino
496 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
-40 °C
Enimmäiskäyttölämpötila
75 °C
Toimintakosteus
5 - 95 % (ei tiivistetty)
Yhteensopivuustiedot
Suunniteltu malleihin
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
