Tuotenumero: 2481635
StarTech.com Teollisuus

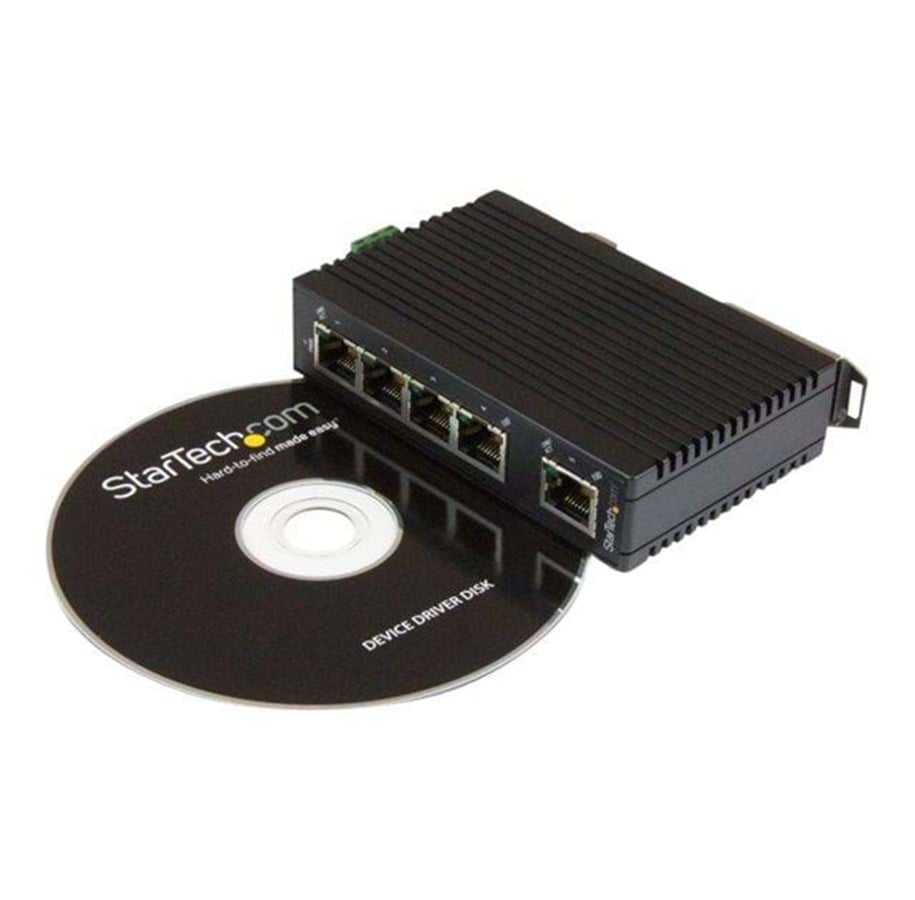

Kytkin, hallitsematon, 5 x 10/100, DIN-rail asennettava
118,42 €
94,36 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch. This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Valmistaja
Tuotenumero
2481635
Malli
IES5102
Ean
0065030859745
Valmistajan kotisivuille
Tuotekuvaus
Startech 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch (IES5102) - kytkin - 5 porttia - hallitsematon
Laitteen tyyppi
Kytkin - 5 porttia - hallitsematon
Alatyyppi
Fast Ethernet
Portit
5 x 10/100
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, QoS, Jumbo Frames-tuki, muovikotelo, Energy Efficient Ethernet, 56 Mt:n pakettipuskurimuisti
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Ulkomitat (PxSxK)
11 cm x 7 cm x 2.5 cm
Paino
148 g
Väri
Musta
Suunniteltu malleihin
P/N: NETRS2322P
Yleistä
Laitteen tyyppi
Kytkin - 5 porttia - hallitsematon
Kotelon tyyppi
DIN-kiskoon kiinnitettävä
Alatyyppi
Fast Ethernet
Portit
5 x 10/100
Ominaisuudet
Vuonhallinta, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, QoS, Jumbo Frames-tuki, muovikotelo, Energy Efficient Ethernet, 56 Mt:n pakettipuskurimuisti
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Tilan ilmaisimet
Teho, aktiivinen, jännitteellinen, linkki/toiminta
Laajennus / Kytkeytyvyys
Liitännät
4 x 100Base-TX RJ-45
1 x 100Base-TX RJ-45 maa-satelliittiyhteys
1 x 100Base-TX RJ-45 maa-satelliittiyhteys
Virransyöttö
Virtalähde
Ulkoinen virtasovitin
Virran kulutus (toiminnassa)
2.12 watti(a)
Muuta
Väri
Musta
Sisältyvät lisävarusteet
3 nastan virtapäätelohko
Keskimääräinen vikaväli (MTBF)
1,179,133 tuntia
Yhteensopivuusstandardit
EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, IP30
Mitat & Paino
Leveys
11 cm
Syvyys
7 cm
Korkeus
2.5 cm
Paino
148 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
-10 °C
Enimmäiskäyttölämpötila
60 °C
Toimintakosteus
10 - 90 % (ei kondensoitu)
Vähimmäismivarastointilämpötila
-25 °C
Enimmäisvarastointilämpötila
85 °C
Varastointikosteus
10 - 90 % (ei kondensoitu)
Yhteensopivuustiedot
Suunniteltu malleihin
P/N: NETRS2322P
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
