Tuotenumero: 3316846

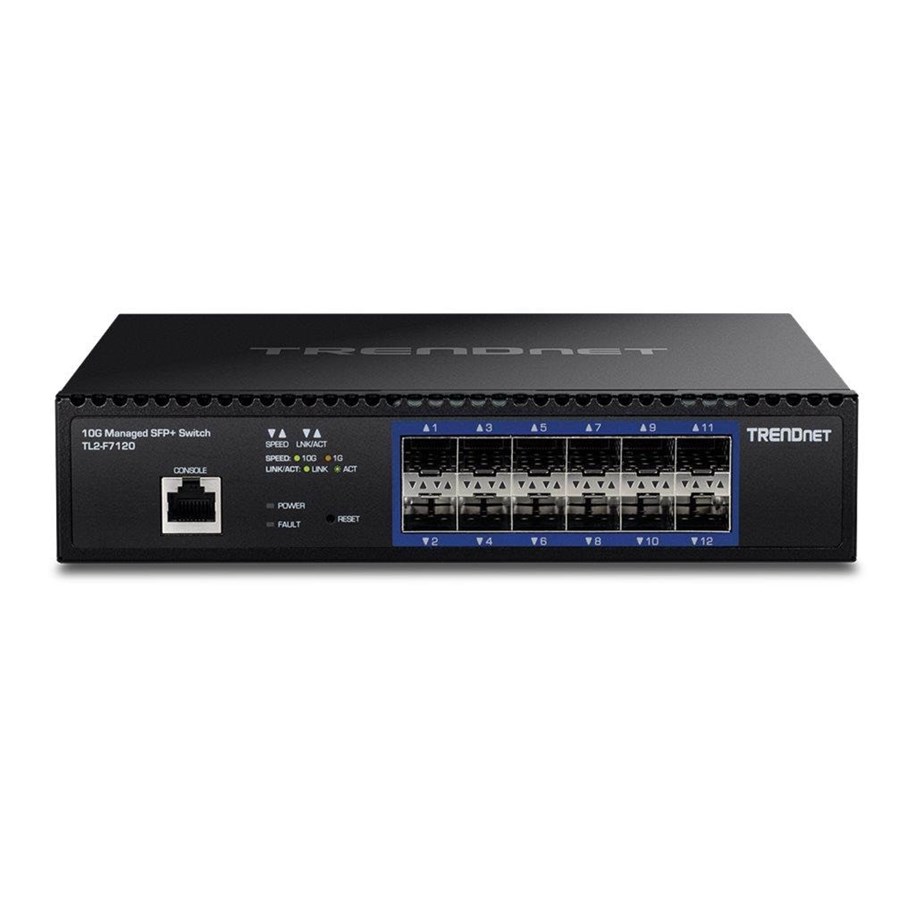

TRENDnet TL2-F7120 - switch - 12 ports - Managed - rack-mountable - TAA Compliant
Kytkin, Hallinnoitu, 12 x 10 Gigabit SFP+, telineeseen asennettava, TAA-yhteensopiva
341,90 €
272,43 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen
TRENDnet's 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
Valmistaja
Tuotenumero
3316846
Malli
TL2-F7120
Ean
0710931140972
Valmistajan kotisivuille
Tuotekuvaus
TRENDnet TL2-F7120 - kytkin - 12 porttia - Hallinnoitu - telineeseen asennettava - TAA-yhteensopiva
Laitteen tyyppi
Kytkin - 12 porttia - Hallinnoitu
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
10 Gigabit Ethernet
Portit
12 x 10 Gigabit SFP+
Suoritusteho
Kytkemiskapasiteetti: 240 Gbps
Tiedonsiirtonopeus: 20 Gbps
Puskurimuisti: 2 MB
Edelleenlähetysarvo: 178,6 Mpps
Tiedonsiirtonopeus: 20 Gbps
Puskurimuisti: 2 MB
Edelleenlähetysarvo: 178,6 Mpps
MAC osoitetaulukon koko (Address Table Size)
32 000 syöttöä
Jumbo-kehystuki
10KB
Reititysprotokolla
IGMP, IGMPv2, IGMPv3, MSTP, RSTP
Kaukohallintaprotokolla
SNMP 1, SNMP 3, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9
Ominaisuudet
Layer 2 -kytkennät, verkkopohjainen hallinta, CLI-hallinta, IGMP snooping, IPv6-tuki, LACP, VLAN-tuki, IPv4-tuki, QoS, Smart Fan, DNS-tuki, LLDP-tuki, ARP-tuki, ICMPv4/ICMPv6 -tuki, MAC-pohjainen pääsynhallinta (MAC), SNTP-tuki, järjestelmäloki, VCT-tekniikka, Rapid Convergence Spanning Tree Protocol, kaistanleveyden hallinta, CoS, MSTP-tuki, jonon suunnittelutuki, Static Link Aggregation, DoS, MLD-snooping
Yhteensopivuusstandardit
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Virransyöttö
Vaihtovirta 100-240 V (50/60 Hz)
Ulkomitat (PxSxK)
23 cm x 21 cm x 4.4 cm
Paino
1.6 kg
TAA-yhteensopivuus
Kyllä
Yleistä
Laitteen tyyppi
Kytkin - 12 porttia - Hallinnoitu
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
10 Gigabit Ethernet
Portit
12 x 10 Gigabit SFP+
Suoritusteho
Kytkemiskapasiteetti: 240 Gbps
Tiedonsiirtonopeus: 20 Gbps
Puskurimuisti: 2 MB
Edelleenlähetysarvo: 178,6 Mpps
Tiedonsiirtonopeus: 20 Gbps
Puskurimuisti: 2 MB
Edelleenlähetysarvo: 178,6 Mpps
MAC osoitetaulukon koko (Address Table Size)
32 000 syöttöä
Jumbo-kehystuki
10KB
Reititysprotokolla
IGMP, IGMPv2, IGMPv3, MSTP, RSTP
Kaukohallintaprotokolla
SNMP 1, SNMP 3, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9
Ominaisuudet
Layer 2 -kytkennät, verkkopohjainen hallinta, CLI-hallinta, IGMP snooping, IPv6-tuki, LACP, VLAN-tuki, IPv4-tuki, QoS, Smart Fan, DNS-tuki, LLDP-tuki, ARP-tuki, ICMPv4/ICMPv6 -tuki, MAC-pohjainen pääsynhallinta (MAC), SNTP-tuki, järjestelmäloki, VCT-tekniikka, Rapid Convergence Spanning Tree Protocol, kaistanleveyden hallinta, CoS, MSTP-tuki, jonon suunnittelutuki, Static Link Aggregation, DoS, MLD-snooping
Yhteensopivuusstandardit
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Sisäänrakennetut laitteet
Valodiodipaneeli
Laajennus / Kytkeytyvyys
Liitännät
12 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+
1 x hallinto RJ-45 konsoli
1 x hallinto RJ-45 konsoli
Virransyöttö
Vaadittava jännite
Vaihtovirta 100-240 V (50/60 Hz)
Virran kulutus (toiminnassa)
20 watti(a)
Muuta
Sisältyvät kaapelit
1 x RJ-45-RS-232-kaapeli
Telineasennuspakkaus
Sisältää
Yhteensopivuusstandardit
NDAA, FCC, UL
TAA-yhteensopivuus
Kyllä
Mitat & Paino
Leveys
23 cm
Syvyys
21 cm
Korkeus
4.4 cm
Paino
1.6 kg
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
Jopa 90 % (ei-kondensoituva)
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
