Tuotenumero: 2979322

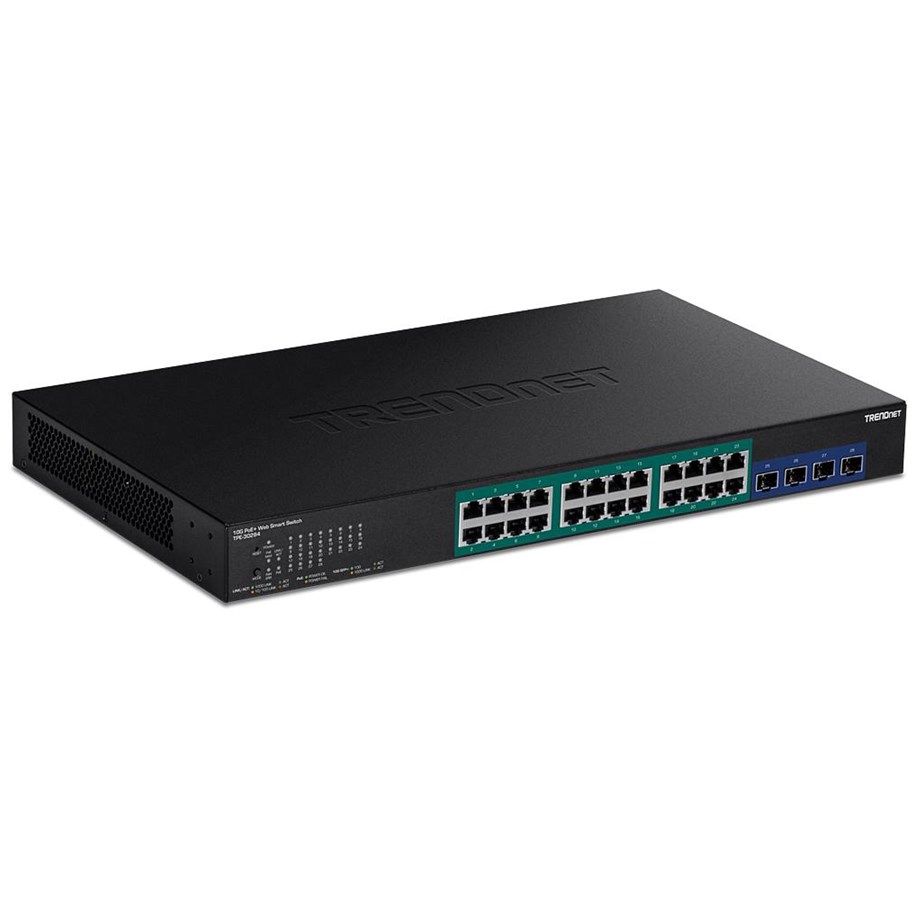

TRENDnet TPE-30284 28-Port Gigabit Web Smart PoE+ Switch

Kytkin, smart, 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, telineeseen asennettava, PoE+ (370 W), AC 100, 240 V, TAA-yhteensopiva

442,25 € 352,39 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.

Valmistaja
Tuotenumero
2979322
Malli
TPE-30284
Ean
0710931161878
Valmistajan kotisivuille
Tuotekuvaus
TRENDnet TPE 30284 - kytkin - 28 porttia - smart - telineeseen asennettava - TAA-yhteensopiva
Laitteen tyyppi
Kytkin - 28 porttia - smart
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
370 W
Suoritusteho
Kytkemiskapasiteetti: 128 Gbps
Forwarding performance (64-byte packet size): 95.2 Mpps
Kapasiteetti
VLAN groups: 256
MAC osoitetaulukon koko (Address Table Size)
16 000 syöttöä
Jumbo-kehystuki
12KB
Reititysprotokolla
IGMPv2, IGMP, IGMPv3
Kaukohallintaprotokolla
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Ominaisuudet
DHCP-tuki, VLAN-tuki, IGMP snooping, Syslog tuki, portin peilaus (port mirroring), MAC-osoitesuodatus, IPv6-tuki, vuorosuuntainen toiminto, kaksisuuntainen toiminto, SNTP-tuki, STP-tuki, RSTP-tuki, VCT-tekniikka, MSTP-tuki, DHCP snooping, ACL-tuki, QoS, MLD-snooping, LLDP-tuki, LACP, Traffic Control, SNMP trap, MIB, GVRP, CoS, SP, tagged VLAN, DoS, per portin kaistanleveyden hallinta, 2 tuuletinta, 1,5Mt pakettipuskurimuisti, Storm Control, portin suodatus, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, silmukantunnistin
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Virransyöttö
AC 100 - 240 V (50/60 Hz)
Ulkomitat (PxSxK)
44 cm x 24.9 cm x 4.4 cm
Paino
3.94 kg
TAA-yhteensopivuus
Kyllä

Yleistä

Laitteen tyyppi
Kytkin - 28 porttia - smart
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
370 W
Suoritusteho
Kytkemiskapasiteetti: 128 Gbps
Forwarding performance (64-byte packet size): 95.2 Mpps
Kapasiteetti
VLAN groups: 256
MAC osoitetaulukon koko (Address Table Size)
16 000 syöttöä
Jumbo-kehystuki
12KB
Reititysprotokolla
IGMPv2, IGMP, IGMPv3
Kaukohallintaprotokolla
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Salausalgoritmi
TLS, SSL 3.0, SSL 2.0
Tunnistusmenetelmä
RADIUS, TACACS+
Ominaisuudet
DHCP-tuki, VLAN-tuki, IGMP snooping, Syslog tuki, portin peilaus (port mirroring), MAC-osoitesuodatus, IPv6-tuki, vuorosuuntainen toiminto, kaksisuuntainen toiminto, SNTP-tuki, STP-tuki, RSTP-tuki, VCT-tekniikka, MSTP-tuki, DHCP snooping, ACL-tuki, QoS, MLD-snooping, LLDP-tuki, LACP, Traffic Control, SNMP trap, MIB, GVRP, CoS, SP, tagged VLAN, DoS, per portin kaistanleveyden hallinta, 2 tuuletinta, 1,5Mt pakettipuskurimuisti, Storm Control, portin suodatus, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, silmukantunnistin
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Laajennus / Kytkeytyvyys

Liitännät
24 x 1000Base-T RJ-45 PoE+
4 x 10Gbit LAN SFP+

Virransyöttö

Virtalähde
Sisäinen virtalähde
Vaadittava jännite
AC 100 - 240 V (50/60 Hz)
Virran kulutus (toiminnassa)
23.7 watti(a)

Muuta

Telineasennuspakkaus
Sisältää
Keskimääräinen vikaväli (MTBF)
287,724 tuntia
Yhteensopivuusstandardit
UL, FCC
TAA-yhteensopivuus
Kyllä

Mitat & Paino

Leveys
44 cm
Syvyys
24.9 cm
Korkeus
4.4 cm
Paino
3.94 kg

Ympäristötiedot

Vähimmäiskäyttölämpötila
-5 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
95 % (höyrystymätön)

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
