Tuotenumero: 3238103

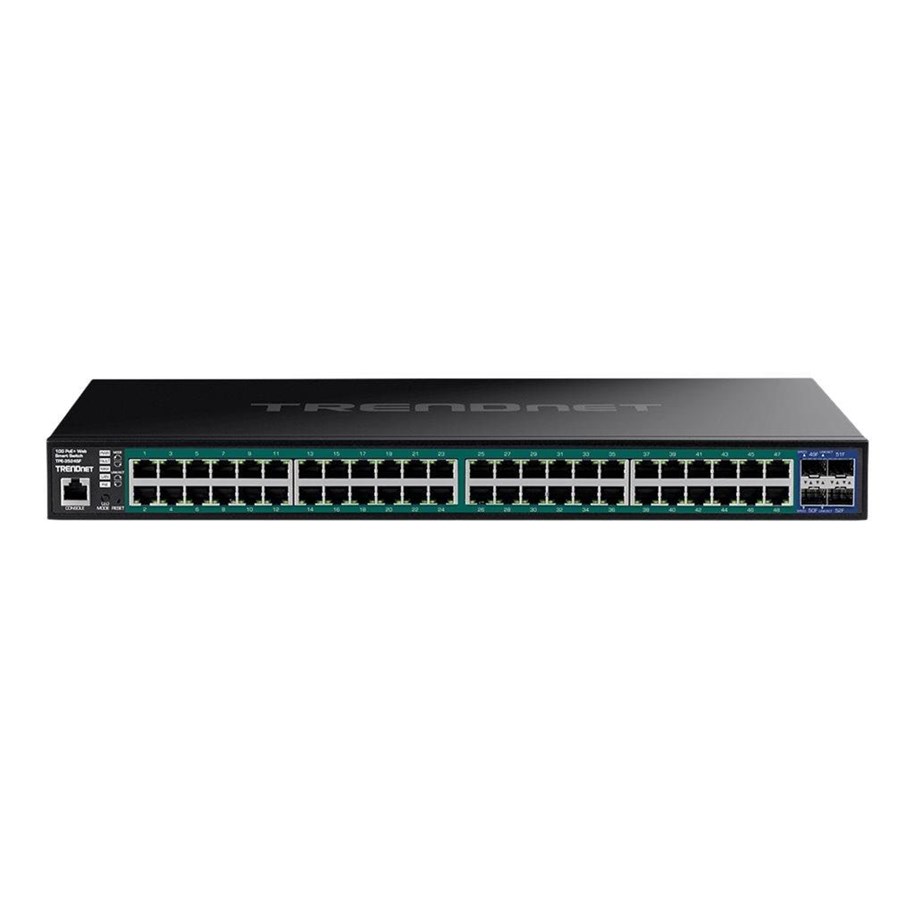

TRENDnet TPE-3524SF - switch - 52-port web - 52 ports - smart - rack-mountable - TAA Compliant
Kytkin, 52-port, web, L2+, smart, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, työpöytä, telineeseen asennettava, PoE+ (740 W), TAA-yhteensopiva
831,99 €
662,94 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen
TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also features 10G SFP+ ports to support long-distance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Valmistaja
Tuotenumero
3238103
Malli
TPE-3524SF
Ean
0710931162523
Valmistajan kotisivuille
Tuotekuvaus
TRENDnet TPE-3524SF - kytkin - 52-port, web - 52 porttia - smart - telineeseen asennettava - TAA-yhteensopiva
Laitteen tyyppi
Kytkin - 52 porttia - L2+ - smart
Kotelon tyyppi
Telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
740 W
Suoritusteho
Kytkemiskapasiteetti: 176 Gbps
Forwarding performance (64-byte packet size): 130.95 Mpps
Forwarding performance (64-byte packet size): 130.95 Mpps
Kapasiteetti
VLAN groups: 256
ARP-taulukko: enint. 128
ARP-taulukko: enint. 128
MAC osoitetaulukon koko (Address Table Size)
32 000 syöttöä
Jumbo-kehystuki
9KB
Kaukohallintaprotokolla
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Ominaisuudet
DHCP-tuki, VLAN-tuki, IGMP snooping, IPv6-tuki, kaksisuuntainen toiminto, DHCP snooping, QoS, MLD-snooping, ylivirtasuoja, sähkökatkosuoja, GVRP, staattinen reititys, SP, DoS, per portin kaistanleveyden hallinta, DSCP-tuki, dual image support, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP fast leave, Inter-VLAN Routing, WRR, silmukantunnistin, block unknown multicast, verkkopohjainen hallinta, Smart Fans, MAC-Port Binding, LLDP-MED, HOL-tukoksen esto
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Virransyöttö
Vaihtovirta 100-240 V (50/60 Hz)
Ulkomitat (PxSxK)
44 cm x 31 cm x 4.4 cm
Paino
4.725 kg
TAA-yhteensopivuus
Kyllä
Yleistä
Laitteen tyyppi
Kytkin - 52 porttia - L2+ - smart
Kotelon tyyppi
Työpöytä, telineeseen asennettava 1U
Alatyyppi
Gigabit Ethernet
Portit
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budjetti
740 W
Suoritusteho
Kytkemiskapasiteetti: 176 Gbps
Forwarding performance (64-byte packet size): 130.95 Mpps
Forwarding performance (64-byte packet size): 130.95 Mpps
Kapasiteetti
VLAN groups: 256
ARP-taulukko: enint. 128
ARP-taulukko: enint. 128
MAC osoitetaulukon koko (Address Table Size)
32 000 syöttöä
Jumbo-kehystuki
9KB
Kaukohallintaprotokolla
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Salausalgoritmi
TLS, SSL 3.0, SSL 2.0
Tunnistusmenetelmä
RADIUS, TACACS+
Ominaisuudet
DHCP-tuki, VLAN-tuki, IGMP snooping, IPv6-tuki, kaksisuuntainen toiminto, DHCP snooping, QoS, MLD-snooping, ylivirtasuoja, sähkökatkosuoja, GVRP, staattinen reititys, SP, DoS, per portin kaistanleveyden hallinta, DSCP-tuki, dual image support, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP fast leave, Inter-VLAN Routing, WRR, silmukantunnistin, block unknown multicast, verkkopohjainen hallinta, Smart Fans, MAC-Port Binding, LLDP-MED, HOL-tukoksen esto
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Sisäänrakennetut laitteet
3 tuuletinta
Tilan ilmaisimet
Tila
Laajennus / Kytkeytyvyys
Liitännät
48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 10Gbit LAN SFP+
1 x konsoli RJ-45
4 x 10Gbit LAN SFP+
1 x konsoli RJ-45
Virransyöttö
Virtalähde
Sisäinen virtalähde
Vaadittava jännite
Vaihtovirta 100-240 V (50/60 Hz)
Muuta
Sisältyvät lisävarusteet
Power cable (1.5 m)
Sisältyvät kaapelit
1 x konsolijohto - 1 m
Telineasennuspakkaus
Sisältää
Keskimääräinen vikaväli (MTBF)
70,599 tuntia
Yhteensopivuusstandardit
UL, FCC, NDAA
TAA-yhteensopivuus
Kyllä
Mitat & Paino
Leveys
44 cm
Syvyys
31 cm
Korkeus
4.4 cm
Paino
4.725 kg
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
95 % (höyrystymätön)
