Tuotenumero: 2637909

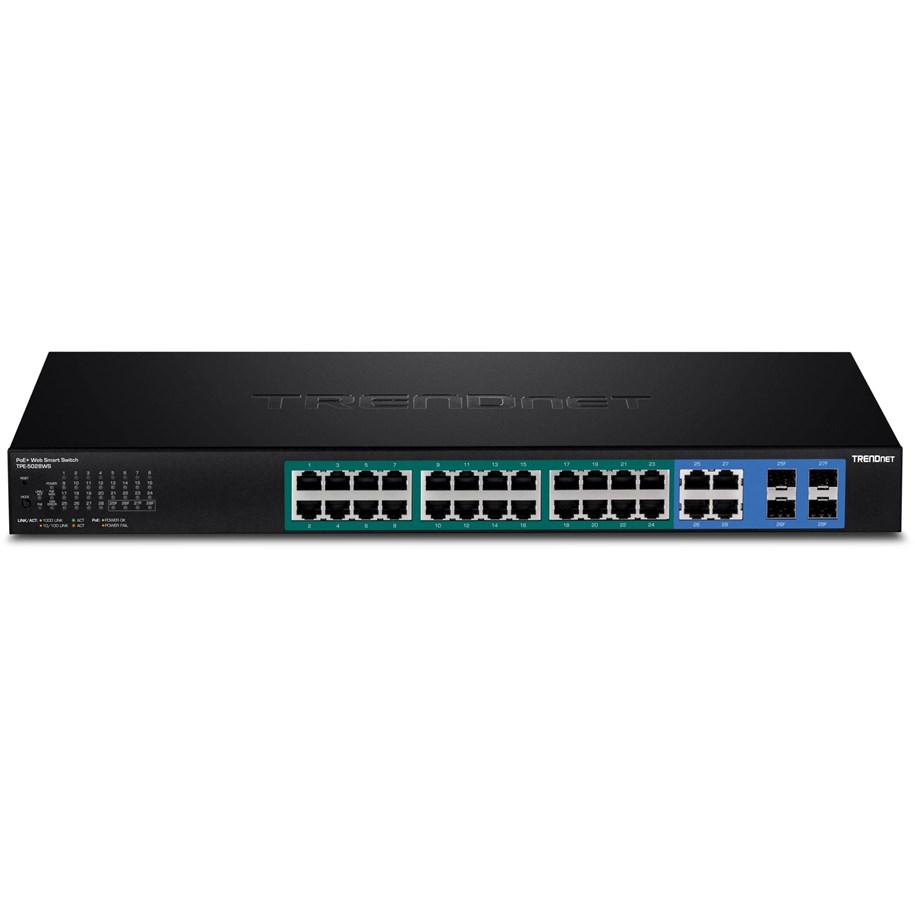

TRENDnet TPE-5028WS 28-Port Gigabit Web Smart PoE+
Kytkin, smart, 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP, työpöytä, telineeseen asennettava, PoE+ (370 W), AC 100, 240 V, TAA-yhteensopiva
504,10 €
401,67 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 5-8 arkipäivää toimitukseen
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
Valmistaja
Tuotenumero
2637909
Malli
TPE-5028WS
Ean
710931161182
Valmistajan kotisivuille
Kytkin tyyppi
Hallittu
Quality of Service -tuki
Kyllä
Verkkosivupohjainen hallinta
Kyllä
MIB-tuki
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Basic kytkentä RJ-45 Ethernet-porttien määrä
24
Peruskytkentä RJ-45 Ethernet-porttien tyyppi
Gigabit Ethernet (10/100/1000)
Combo SFP-porttien määrä
4
Virtaliitin
DC-tulo jakkiliitin
Verkkostandardit
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Porttien peilaus
Kyllä
Täysin kaksipuolinen
Kyllä
Linkkien yhdistäminen
Kyllä
STP-Protokolla
Kyllä
Head-of-line (HOL) blocking
Kyllä
VLAN-tuki
Kyllä
Virtuaalisen LAN:n ominaisuudet
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
MAC-osoitetaulukko
8000 entries
Kytkentäkapasiteetti
56 Gbit/s
Forwarding rate
41,7 Mpps
Jumbo Frames -tuki
Kyllä
Jumbo frames
10000
Laitteen puskurimuistiin
4,1 MB
Pääsynhallintalista
Kyllä
IGMP snooping
Kyllä
Tietoturva-algoritmit
HTTPS, SNMP, SSL/TLS
MAC-osoitteensuodatus
Kyllä
Multicast-tuki
Kyllä
Multicast MAC-osoitetaulukko
256 entries
Telineasennus
Kyllä
Kotelo
1U
Tuotteen väri
Musta
Kotelon materiaali
Lineaarinen pientiheyspolyeteeni (LLDPE)
LED-merkkivalot
Kyllä
Tuulettimien määrä
2 tuuletin(ta)
Yhteensopivat käyttöjärjestelmät
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Melutaso
52 dB
Keskimääräinen vikaantumisaika
277,604 h
AC-syöttöjännite
100 - 240 V
AC-syöttötaajuus
50 - 60 Hz
Virrankulutus
30 W
Tehonkulutus (maks.)
446 W
Power over Ethernet -tuki
Kyllä
Power over Ethernet plus (PoE +) -porttien määrä
24
Power over Ethernet (PoE) arvioitu kokonaismäärä
370 W
Käyttölämpötila (T-T)
-5 - 50 °C
Käytön suhteellinen kosteus (H-H)
0 - 95%
Tuotteen leveys
440 mm
Tuotteen syvyys
250 mm
Tuotteen korkeus
44 mm
Paino
3,92 kg
Sisältää johdot
AC
Pika-aloitusopas
Kyllä
Telineasennussarja
Kyllä
Resurssi-CD
Kyllä
Sertifiointi
CE, FCC
Harmonoidun järjestelmän nimikkeistökoodi (HS)
85176990
Hallintaominaisuudet
Kytkin tyyppi
Hallittu
Quality of Service -tuki
Kyllä
Verkkosivupohjainen hallinta
Kyllä
MIB-tuki
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Liitettävyys
Basic kytkentä RJ-45 Ethernet-porttien määrä
24
Peruskytkentä RJ-45 Ethernet-porttien tyyppi
Gigabit Ethernet (10/100/1000)
Combo SFP-porttien määrä
4
Virtaliitin
DC-tulo jakkiliitin
Verkko
Verkkostandardit
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Porttien peilaus
Kyllä
Täysin kaksipuolinen
Kyllä
Linkkien yhdistäminen
Kyllä
STP-Protokolla
Kyllä
Head-of-line (HOL) blocking
Kyllä
VLAN-tuki
Kyllä
Virtuaalisen LAN:n ominaisuudet
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
Datasiirto
MAC-osoitetaulukko
8000 entries
Kytkentäkapasiteetti
56 Gbit/s
Forwarding rate
41,7 Mpps
Jumbo Frames -tuki
Kyllä
Jumbo frames
10000
Laitteen puskurimuistiin
4,1 MB
Suojaus
Pääsynhallintalista
Kyllä
IGMP snooping
Kyllä
Tietoturva-algoritmit
HTTPS, SNMP, SSL/TLS
MAC-osoitteensuodatus
Kyllä
Monilähetysominaisuudet
Multicast-tuki
Kyllä
Multicast MAC-osoitetaulukko
256 entries
Suunnittelu
Telineasennus
Kyllä
Kotelo
1U
Tuotteen väri
Musta
Kotelon materiaali
Lineaarinen pientiheyspolyeteeni (LLDPE)
LED-merkkivalot
Kyllä
Tuulettimien määrä
2 tuuletin(ta)
Suorituskyky
Yhteensopivat käyttöjärjestelmät
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Melutaso
52 dB
Keskimääräinen vikaantumisaika
277,604 h
Virranhallinta
AC-syöttöjännite
100 - 240 V
AC-syöttötaajuus
50 - 60 Hz
Virrankulutus
30 W
Tehonkulutus (maks.)
446 W
Power over Ethernet (PoE)
Power over Ethernet -tuki
Kyllä
Power over Ethernet plus (PoE +) -porttien määrä
24
Power over Ethernet (PoE) arvioitu kokonaismäärä
370 W
Ympäristöolosuhteet
Käyttölämpötila (T-T)
-5 - 50 °C
Käytön suhteellinen kosteus (H-H)
0 - 95%
Paino ja mitat
Tuotteen leveys
440 mm
Tuotteen syvyys
250 mm
Tuotteen korkeus
44 mm
Paino
3,92 kg
Pakkauksen sisältö
Sisältää johdot
AC
Pika-aloitusopas
Kyllä
Telineasennussarja
Kyllä
Pakkaustiedot
Resurssi-CD
Kyllä
Sertifikaatit
Sertifiointi
CE, FCC
Logistiikkatiedot
Harmonoidun järjestelmän nimikkeistökoodi (HS)
85176990
