Tuotenumero: 2284088

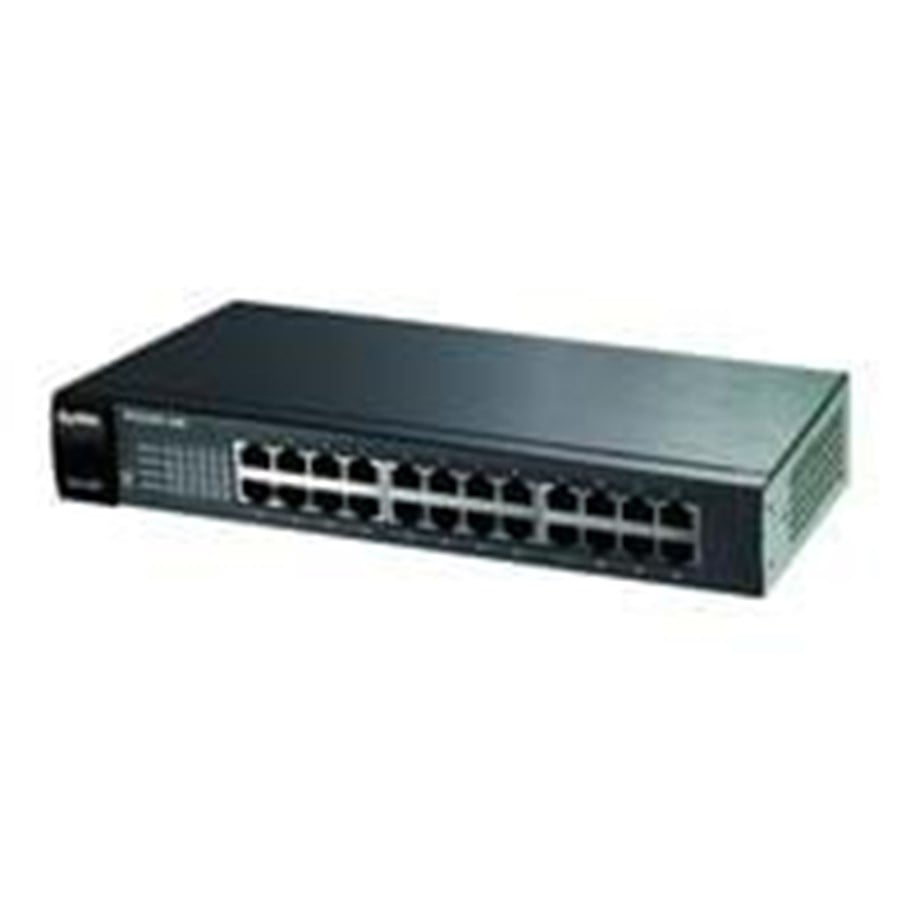

ZyXEL ES-1100-24E 24-Port Unmanaged Switch

Switch, unmanaged, 24 x 10/100, desktop

53,08 € 42,30 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 5-8 arkipäivää toimitukseen

The environment-aware switch 1100 series - Fast Ethernet offers 10/100M Ethernet speeds critical to the next-generation network applications, and it also provides power-saving functions to reduce energy consumption for lower operating cost.

The switch 1100 series - Fast Ethernet comprises of unmanaged Fast Ethernet switches that provide an inexpensive solution for Fast Ethernet connections to the desktop with outstanding performance. The switch 1100 series - Fast Ethernet is an ideal solution for bandwidth-intensive applications such as high-resolution photo delivery, video/audio streaming and downloading as well as server farm connections.

The full switch 1100 series has been designed to boost your network with better performance and efficiency. With the N-way auto-negotiation function, the switch 1100 series - Fast Ethernet connects the network counterparts with the highest possible data speed and activates the duplex mode automatically.

Unlike shared 10/100 Mbps networks, the switch 1100 series - Fast Ethernet eliminates congestion by providing dedicated bandwidth; and its duplex mode doubles the effective bandwidth by enabling two-way communications. The store-and-forward service brings low latency and error-free packet delivering, while the Plug-and-Play and multiple network protocol compatibility of the switch 1100 series - Fast Ethernet makes installation and management easier and faster than ever.

With embedded rackmount brackets, the desktop size devices can fits into your rack environment easily. No matter how intense your network demand is, the switch 1100 series - Fast Ethernet supports your needs with an affordable and reliable network solution designed especially for small businesses.

Verkkokaapelit

Valmistaja
Tuotenumero
2284088
Malli
ES1100-24E-EU01F
Ean
4718937560059
Valmistajan kotisivuille
Kytkin tyyppi
Hallitsematon
Basic kytkentä RJ-45 Ethernet-porttien määrä
24
Virtaliitin
DC-tulo jakkiliitin
Verkkostandardit
IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G-tuki
Ei
Virranhallinnan tuki
Kyllä
Broadcast Storm Control
Kyllä
Auto MDI/MDI-X
Kyllä
MAC-osoitetaulukko
8000 entries
Kytkentäkapasiteetti
4,8 Gbit/s
Tuettu tiedonsiirtonopeus
10/100 Mbps
Suurin tiedonsiirtonopeus
0,1 Gbit/s
Jumbo Frames -tuki
Kyllä
Laitteen puskurimuistiin
0,256 MB
Pinottava
Kyllä
Tuotteen väri
Musta
LED-merkkivalot
Kyllä
Turvallisuus
EN 60950-1, IEC 60950-1, RoHS
Tulojännite
100 - 240 V
Power over Ethernet -tuki
Ei
Mitat (LxSxK)
267 x 162 x 42 mm
Verkko-ominaisuudet
Fast Ethernet
Syötteen taajuus
50/60 Hz
Paino (brittiläinen)
1,28 kg (2.82 lbs)
Mitat (L x S x K) (brittiläinen)
267 x 162,1 x 41,9 mm (10.5 x 6.38 x 1.65")
Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-40 - 70 °C
Käytön suhteellinen kosteus (H-H)
10 - 95%
Käyttölämpötila (T-T)
32 - 122 ° F
Paino
1,28 kg
Pakkauksen koko
325 x 227 x 71 mm
Pakkauksen paino
2,1 kg
Sertifiointi
FCC 15, CE EMC

Hallintaominaisuudet

Kytkin tyyppi
Hallitsematon

Liitettävyys

Basic kytkentä RJ-45 Ethernet-porttien määrä
24
Virtaliitin
DC-tulo jakkiliitin

Verkko

Verkkostandardit
IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G-tuki
Ei
Virranhallinnan tuki
Kyllä
Broadcast Storm Control
Kyllä
Auto MDI/MDI-X
Kyllä

Datasiirto

MAC-osoitetaulukko
8000 entries
Kytkentäkapasiteetti
4,8 Gbit/s
Tuettu tiedonsiirtonopeus
10/100 Mbps
Suurin tiedonsiirtonopeus
0,1 Gbit/s
Jumbo Frames -tuki
Kyllä
Laitteen puskurimuistiin
0,256 MB

Suunnittelu

Pinottava
Kyllä
Tuotteen väri
Musta
LED-merkkivalot
Kyllä
Turvallisuus
EN 60950-1, IEC 60950-1, RoHS

Virranhallinta

Tulojännite
100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet -tuki
Ei

Muut ominaisuudet

Mitat (LxSxK)
267 x 162 x 42 mm
Verkko-ominaisuudet
Fast Ethernet
Syötteen taajuus
50/60 Hz
Paino (brittiläinen)
1,28 kg (2.82 lbs)
Mitat (L x S x K) (brittiläinen)
267 x 162,1 x 41,9 mm (10.5 x 6.38 x 1.65")

Ympäristöolosuhteet

Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-40 - 70 °C
Käytön suhteellinen kosteus (H-H)
10 - 95%
Käyttölämpötila (T-T)
32 - 122 ° F

Paino ja mitat

Paino
1,28 kg

Pakkaustiedot

Pakkauksen koko
325 x 227 x 71 mm
Pakkauksen paino
2,1 kg

Sertifikaatit

Sertifiointi
FCC 15, CE EMC

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
