Tuotenumero: 2181753

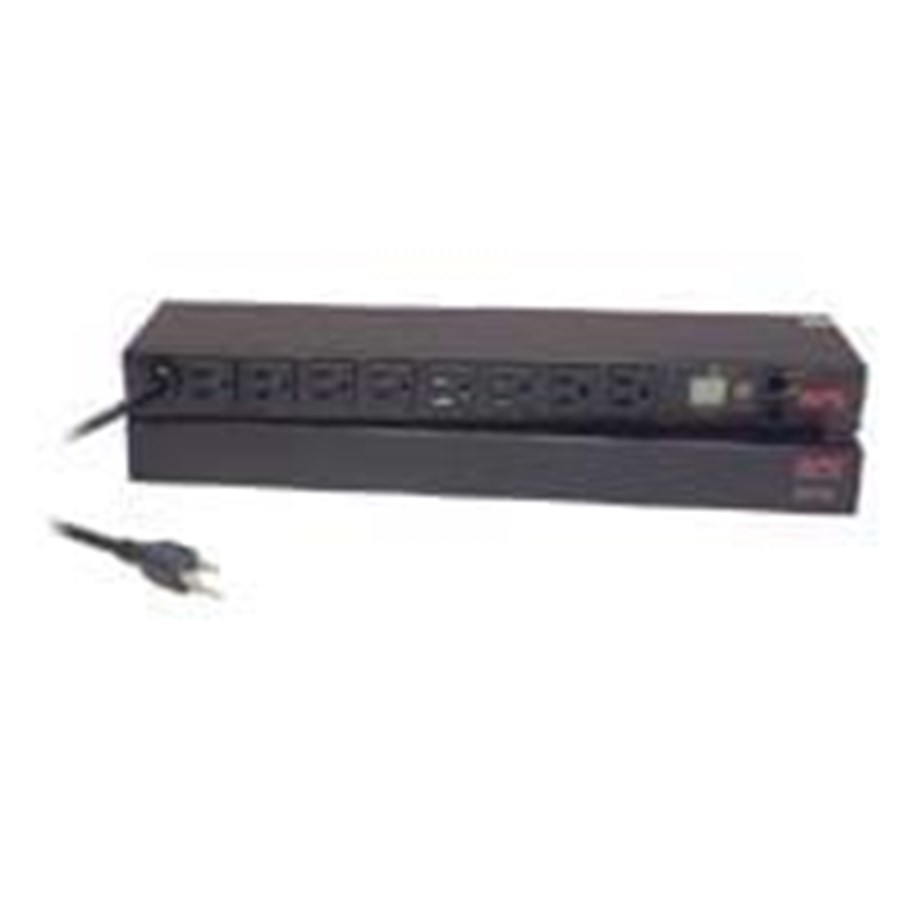

APC RACK PDU KYTKETTY 1U 15A 100/120V
Virranjakelukaista (telineasennettava), Vaihtovirta 120 V, Ethernet 10/100, tulo: NEMA 5-15, lähtöliittimet: 8 (NEMA 5-15), 1U, 19", musta malleihin P/N: AR3100, SU3000RMNET-1EW, SUM3000RMXL2U, SUM3000RMXL2U-TU, SURTA3000XL, SURTA3000XL-TU
714,77 €
569,54 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tilaustuote, 16-19 arkipäivää toimitukseen
Switched Rack PDUs provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.
APC by Schneider Electric Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads.
Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by Schneider Electric's StruxureWare solution.
Network Management - Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote Individual Outlet Control - Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds - Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities).
Local Current Monitoring Display - The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only).
Power Delays - Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load Indicator LED - Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash Upgradeable - Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only).
APC by Schneider Electric Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads.
Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by Schneider Electric's StruxureWare solution.
Network Management - Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote Individual Outlet Control - Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds - Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities).
Local Current Monitoring Display - The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only).
Power Delays - Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load Indicator LED - Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash Upgradeable - Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only).
Palvelu ja tuki
-
APC Extended Warranty (Renewal tai High Volume)
Tilaustuote, toimitusaikaa ei voida ilmoittaa94,69 €
Valmistaja
Tuotenumero
2181753
Malli
AP7900
Ean
0731304205722
Tuotekuvaus
APC Switched Rack PDU - virranjakelukaista
Laitteen tyyppi
Virranjakelukaista - telineasennettava
Telineen koko
19" - 1U
Paino
2 kg
Tulojännite
Vaihtovirta 120 V
Lähtöjännite
Vaihtovirta 120 V
Tuloliittimet
1 x NEMA 5-15 virtaliitin
Lähtöliittimet
8 x NEMA 5-15 virtaliitin
Verkkoyhteydet
Ethernet 10/100
Kaukohallintaprotokolla
SNMP, Telnet, HTTP
Väri
Musta
Järjestelmävaatimukset
Microsoft Windows NT 4.0, Microsoft Windows 98/2000/XP
Ulkomitat (PxSxK)
44.4 cm x 10.8 cm x 4.5 cm
Suunniteltu malleihin
P/N: AR3100, SU1400RMXLB3U, SU1400RMXLB3U-TRAD, SU1400RMXLB3U-TU, SU2200RMXL3U-TU, SU3000RMNET-1EW, SU5000R5TBXFMR, SU5000R5TBXFMR-TU, SUA1000RM2U-TU, SUA1000RMUS, SUA1500R2X93-TU, SUA1500RMUS, SUA3000, SUA3000RM2U-TU, SUA750RMJ1UB, SUM3000RMXL2U, SUM3000RMXL2U-TU, SURTA3000XL, SURTA3000XL-TU
Yleistä
Laitteen tyyppi
Virranjakelukaista - telineasennettava
Korkeus (Telineyksikköä)
1U
Telineen koko
19"
Väri
Musta
Virtalähde
Tulojännite
Vaihtovirta 120 V
Toimitettu frekvenssi
50/60 Hz
Tuloliittimet
1 x NEMA 5-15 virtaliitin
Tehon lähtöliittimien yksityiskohdat
8 x NEMA 5-15 virtaliitin
Lähtöjännite
Vaihtovirta 120 V 50/60 Hz
Enimmäissähkövirta
12 A
Verkkoyhteydet
Etähallinta liitäntä
Ethernet 10/100
Kaukohallintaprotokolla
SNMP, Telnet, HTTP
Laajennus / Kytkeytyvyys
Liitännät
1 x hallinta (Ethernet) - RJ-45
1 x hallinta - RJ-12
1 x hallinta - RJ-12
Muuta
Sisältyvät kaapelit
Virtajohto - integroitu - 3.66 m
Sarjakaapeli - ulkoinen
Sarjakaapeli - ulkoinen
Telineasennuspakkaus
Sisältää
Ominaisuudet
LED näyttö
Yhteensopivuusstandardit
FCC Luokka A -sertifioitu, UL, cUL, ICES-003, VCCI Class A ITE, UL 60950
Ohjelmisto / Järjestelmävaatimukset
Vaadittu käyttöjärjestelmä
Microsoft Windows NT 4.0, Microsoft Windows 98/2000/XP
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
45 °C
Vähimmäismivarastointilämpötila
-25 °C
Enimmäisvarastointilämpötila
65 °C
Toimintakosteus
0 - 95%
Varastointikosteus
0 - 95%
Mitat & paino
Leveys
44.4 cm
Syvyys
10.8 cm
Korkeus
4.5 cm
Paino
2 kg
Yhteensopivuustiedot
Suunniteltu malleihin
P/N: AR3100, SU1000R2BX120, SU1000RM, SU1000RM2U, SU1000RMNET, SU1400R2BX120, SU1400R2X122, SU1400RM, SU1400RM2U, SU1400RMBX120, SU1400RMNET, SU1400RMX176, SU1400RMXL3U, SU1400RMXLB3U, SU1400RMXLB3U-TRAD, SU1400RMXLB3U-TU, SU1400RMXLNET, SU1500RMX155, SU2000R3X155, SU2200R3BX120, SU2200R3X106, SU2200R3X147, SU2200R3X152, SU2200R3X152-TU, SU2200R3X167, SU2200RM, SU2200RM3U, SU2200RMNET, SU2200RMXL3U, SU2200RMXL3U-TU, SU2200RMXLNET, SU2200RMXLTNET, SU2200RMXLTX153, SU3000R3BX120, SU3000R3BX135, SU3000R3X145, SU3000R3X145-TU, SU3000RM3U, SU3000RMJ3U, SU3000RMNET, SU3000RMNET-1EW, SU3000RMT3U, SU3000RMTX136, SU3000RMX93, SU3000RMXL3U, SU5000R5TBXFMR, SU5000R5TBXFMR-TU, SU5000RMT5U, SU5000RMT5U-TU, SU5000RMT5UXFMR, SU700R2BX120, SU700R2BX120-TU, SU700RM2U, SUA1000RM2U, SUA1000RM2U-TU, SUA1000RMUS, SUA1500R2X93-TU, SUA1500RMUS, SUA3000, SUA3000RM2U, SUA3000RM2U-TU, SUA750RM1U, SUA750RM2U, SUA750RM2U-TU, SUA750RMJ1UB, SUM3000RMXL2U, SUM3000RMXL2U-TU, SURTA3000XL, SURTA3000XL-TU
