Schertler GIULIA-X-A Acoustic Amplifier - Anthracite

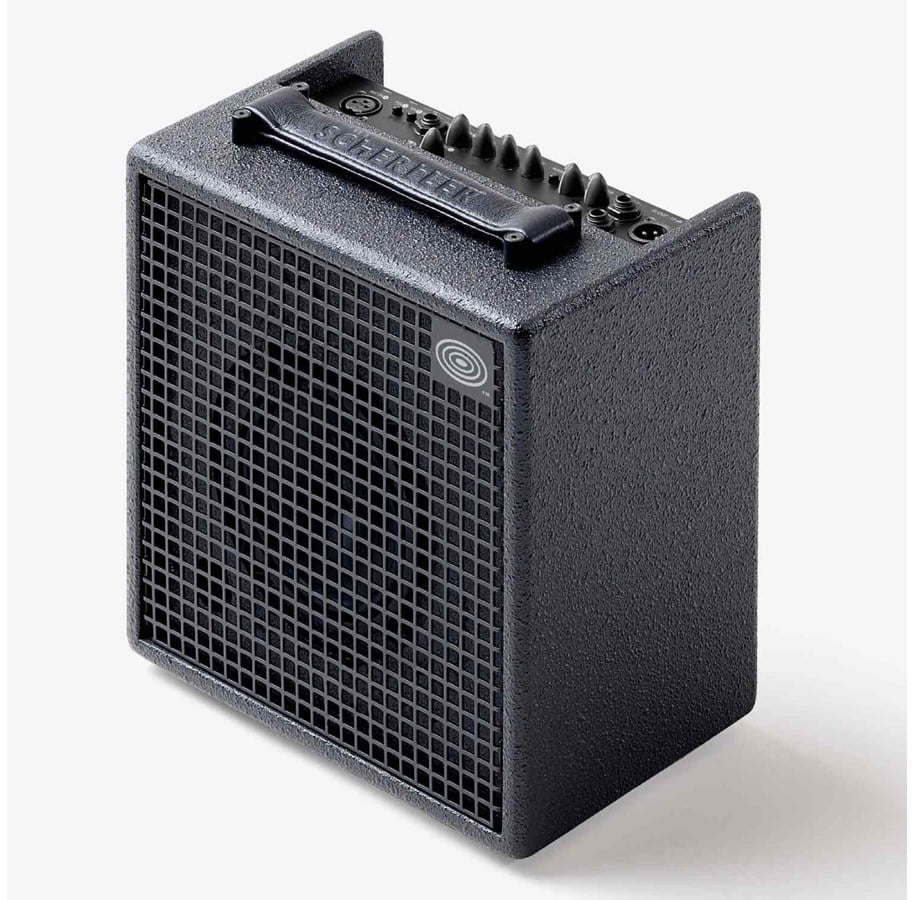

GIULIA X-A is a compact Swiss-made amplifier for acoustic instruments. It delivers 70 W of bi-amplified analogue power and features a coaxial 1" tweeter and 5.5" woofer in an optimized 2-way bass reflex design. The Class-A preamp is built without integrated circuits and with no negative feedback, ensuring natural and detailed sound. With two inputs for instrument and microphone, it is ideal for practice, home studio use, and as a preamp via the DI output.
GIULIA X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this amp provides 70 W (108 dB SPL) of bi-amplified analogue power. GIULIA X has a coaxial speaker system with a 1" dome tweeter and 5.5" woofer. It is designed with an optimized 2-way bass reflex construction.
GIULIA X is ideal for those seeking no-compromise acoustic instrument amplification, while keeping things small and simple. Perfect for practice and home studio use, it is also recommended as a high-quality preamp in venues, connected to Front of House via the DI Out. The two inputs can accept one instrument and a vocal microphone.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.
Specifications
- Weight: 7.5 kg
- Dimensions (L×D×H): 27 cm × 18 cm × 28 cm
- Frequency Response (@ ±3 dB): 55 to 20kHz
- Sensitivity (1W/1m) @1 kHz: 92.5 dB
- Power: 70 W pure analogue power amp
- SPL Max: 108 dB
- Speakers: Coaxial 1" dome tweeter, 5.5" woofer
- Construction: 12 mm birch BB laminated
- System - Format: Two way, bi-amplified - Bass reflex
- Mic In connector: XLR
- Mic In sensitivity: -52 dB
- Mic In impedance: 4.7 kΩ
- Instrument In connector: 1/4" jack unbalanced
- Instrument In sensitivity: -47 dB
- Instrument In impedance: 820 kΩ
- Stereo In connector: n.a.
- Stereo In sensitivity: n.a.
- Stereo In impedance: n.a.
- Insert: On master
- Line Out Connector: 1/4" jack
- Line Out level: 0 dBu
- Line Out impedance: 200 Ω
- DI Out connector: XLR
- DI Out leve: -15 dBu
- DI Out impedance: 200 Ω
- Aux Out connector: n.a.
- Aux Out level: n.a.
- Aux Out impedance: n.a.
- Phones connector: n.a.
- Phones level: n.a.
- Phantom Power (nominal): 24 VDC
- Stat Power (10 VDC): Yes
- Effect: Spring-type digital reverb
- Preamp: Class-A, no negative feedback, no integrated circuits
- Footswitch: n.a.
- Stand mounting: n.a.
- Version: Anthracite
