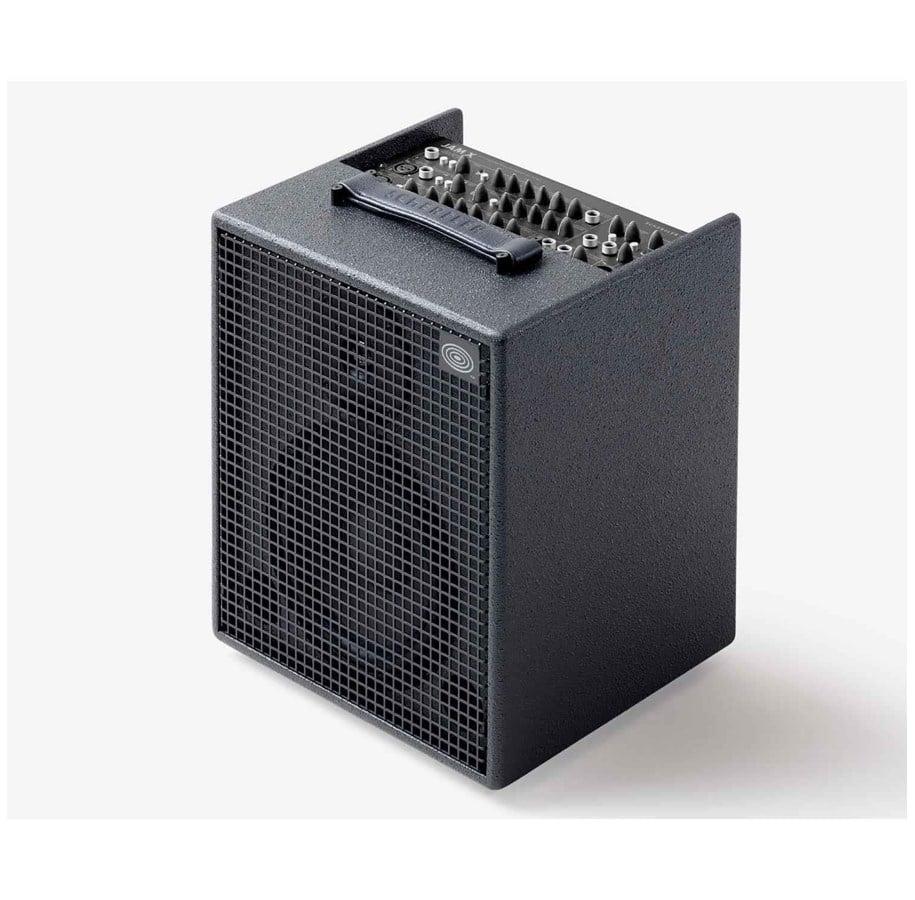

Schertler JAM X-A Acoustic Amplifier
The SCHERTLER JAM X is a premium 5-channel amplifier delivering 240 W of bi-amplified analogue power with an 8" woofer and 1" dome tweeter. It offers clear, natural sound and a wide frequency range - perfect for acoustic instruments and vocals in both studio and live settings.
JAM X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this flagship 5-channel amp provides 240 W (117 dB SPL) of bi-amplified analogue power. JAM X is equipped with a 1" dome tweeter and 8" woofer. It is designed with an optimized 2-way bass reflex construction.
JAM X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.
Specifications
- Weight: 12.5 kg
- Dimensions (L×D×H): 32.4 cm × 29.7 cm × 38 cm
- Frequency Response (@ ±3dB): 40 Hz to 20 kHz
- Sensitivity (1 W / 1 m) @1 kHz: 95 dB
- Power: 240 W pure analogue power amp
- SPL Max: 117 dB
- Speakers: 1" dome tweeter, 8" woofer
- Construction: 12 mm birch BB laminated
- System - Format: Two way, bi-amplified - Bass reflex
- Mic In connector: XLR
- Mic In sensitivity: -52 dB
- Mic In impedance: 4.7 kΩ
- Instrument In connector: 1/4" jack unbalanced
- Instrument In sensitivity: -47 dB
- Instrument In impedance: 820 kΩ
- Stereo In connector: 1/8" jack stereo
- Stereo In sensitivity: -10 dBu
- Stereo In impedance: 40 kΩ
- Insert: On master
- Line Out connector: 1/4" jack
- Line Out level: 0 dBu
- Line Out impedance: 200 Ω
- DI Out connector: XLR
- DI Out level: -∞ to +6 dBu
- DI Out impedance: 180 Ω
- Aux Out connector: 1/4" jack unbalanced
- Aux Out level: 0 dBu
- Aux Out impedance: 200 Ω
- Phones connector: n.a.
- Phones level: n.a.
- Phantom Power (nominal): 24 VDC
- Stat Power (10 VDC): Yes
- Effect: Spring-type digital reverb with decay
- Preamp: Class-A, no negative feedback, no integrated circuits
- Footswitch: n.a.
- Stand mounting: Flange mount ⌀ 36 mm, h=102 mm
