Tuotenumero: 2611818

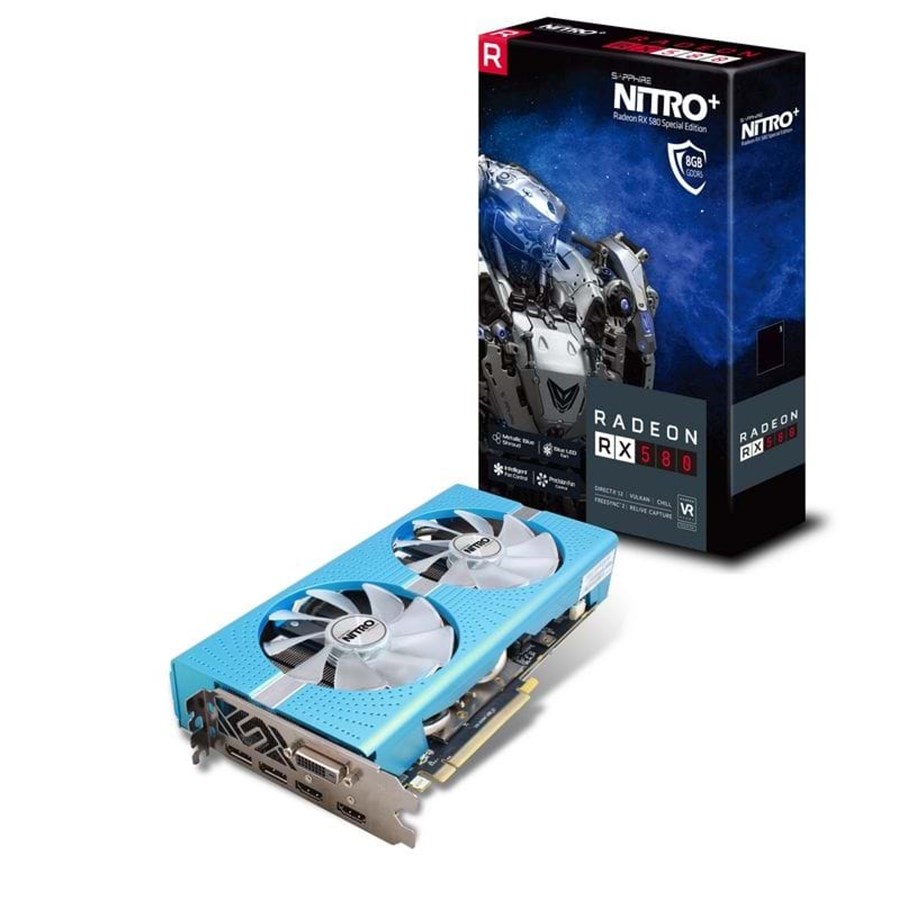

Sapphire Radeon RX 580 NITRO+ SE - 8GB GDDR5 RAM - Näytönohjaimet

Näytönohjain, AMD Radeon RX 580 Overclocked (Core clock 1430 MHz), 2304 Stream ydintä, 8 GB GDDR5 (Memory clock 8.4 GHz), PCI-Express 3.0, DVI-D, 2 x HDMI, 2 x DisplayPort - 11265-21-20G

Tuotetta ei ole saatavilla tällä hetkellä

In order to protect your card, the SAPPHIRE NITRO+ series cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. The SAPPHIRE NITRO+ cards are designed with robust VRM cooling and have a high thermal conductivity pad on the backplate to take away the heat efficiently and effectively. The graphics card is more than another component; it's the beating heart of your gaming system. It should look as good as it costs. With tasteful shroud design augmented by RGB LEDs, each card is practically a piece of art. You can even change the colors of the LED, for your own customized design. Black Diamond Chokes are cooler and more power efficient than a normal choke.The NITRO Boost switch increases the boost clock and power limit for higher performance to unleash the gaming performance of the card. SAPPHIRE's Dual-X cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The form of blades means greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs. Now it's easier than ever to connect and use an external Radeon graphics card. With AMD XConnect technology, external GPU enclosures configured with Radeon graphics can easily connect and disconnect to a compatible ultrathin notebook or 2-in 1 over Thunderbolt 3 at any time, just like a USB flash drive! AMD CrossFire technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFire harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance. AMD CrossFire technology ready graphics cards fit practically every budget.

Kotelot - lisätarvikkeet

Valmistaja
Tuotenumero
2611818
Malli
11265-21-20G
Ean
4895106283077
Tuotekuvaus
Sapphire NITRO+ RX 580 - Special Edition - näytönohjain - Radeon RX 580 - 8 Gt - metallinsininen
Laitteen tyyppi
Näytönohjain
Väylätyyppi
PCI Express 3.0 x16
Grafiikkamoottori
AMD Radeon RX 580
Muisti
8 Gt GDDR5
Ydinkello
1430 MHz
Virtaprosessorit
2304
Tehokas muistikello
8.4 GHz
Muistiliitäntä
256-bit
Enimmäistarkkuus
5120 x 2880
Max resoluution yksityiskohdat
DisplayPort: 5120 x 2880 / HDMI: 4096 x 2160 / DVI: 2560 x 1600
Tuettu näyttöjen enimmäismäärä
5
Rajapintojen tiedot
2 x HDMI
2 x DisplayPort
DVI-D
API-tuettu
DirectX 12, OpenGL 4.5, OpenCL 2.0
Ulkomitat (PxSxK)
4.3 cm x 26 cm x 13.5 cm
Kotelon väri
Metallinsininen
Pakkaustyyppi
Lite-vähittäismyynti

Yleistä

Laitteen tyyppi
Näytönohjain
Väylätyyppi
PCI Express 3.0 x16
Grafiikkamoottori
AMD Radeon RX 580
Ydinkello
1430 MHz
Virtaprosessorit
2304
Prosessitekniikka
14 nm
VR-yhteensopiva
Kyllä
Enimmäistarkkuus
5120 x 2880 at 60 Hz
Max resoluution yksityiskohdat
DisplayPort: 5120 x 2880 / HDMI: 4096 x 2160 / DVI: 2560 x 1600
Tuettu näyttöjen enimmäismäärä
5
Rajapintojen tiedot
2 x HDMI
2 x DisplayPort
DVI-D
API-tuettu
DirectX 12, OpenGL 4.5, OpenCL 2.0
Ominaisuudet
Dual Bios, High dynamic-range (HDR) rendering, AMD Eyefinity Technology, AMD CrossFireX Technology, Shader Model 5.0, Graphics Core Next (GCN), Dual ball Bearing Fan, UEFI BIOS, 2.2 x slot Fan Cooler, FreeSync Technology, AMD LiquidVR Technology, Frame Rate Target Control(FRTC), AMD VR Ready Premium, AMD XConnect Technology, NITRO Fan Check, NITRO Quick Connect -järjestelmä, NITRO Glow RGB LED, NITRO CoolTech, NITRO Free Flow, NITRO Boost, Intelligent Fan Control (IFC) III, Black Diamond Chokes 4, Sapphire Dual-X Cooling Technology, fuse protection, Radeon Chill, Radeon ReLive

Muisti

Koko
8 Gt
Tekniikka
GDDR5 SDRAM
Tehokas kellonopeus
8.4 GHz
Väyläleveys
256-bit

Järjestelmävaatimukset

Vaadittu käyttöjärjestelmä
Microsoft Windows 7 / 10
Vaadittava virtalähde
500 W
Lisävaatimukset
6-nastaiset + 8-nastaiset PCI Express -virtaliittimet

Muuta

Virran kulutus (toiminnassa)
250 watti(a)
Sisältyvät lisävarusteet
Taustalevy
Yhteensopivuusstandardit
DisplayPort 1.4
Leveys
4.3 cm
Syvyys
26 cm
Korkeus
13.5 cm
Kotelon väri
Metallinsininen
Pakkaustiedot
Lite-vähittäismyynti

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
