Näyttö- & audiokytkimet - ATEN Video Splitter VS98A - VS98A
Tuotenumero: 2038897

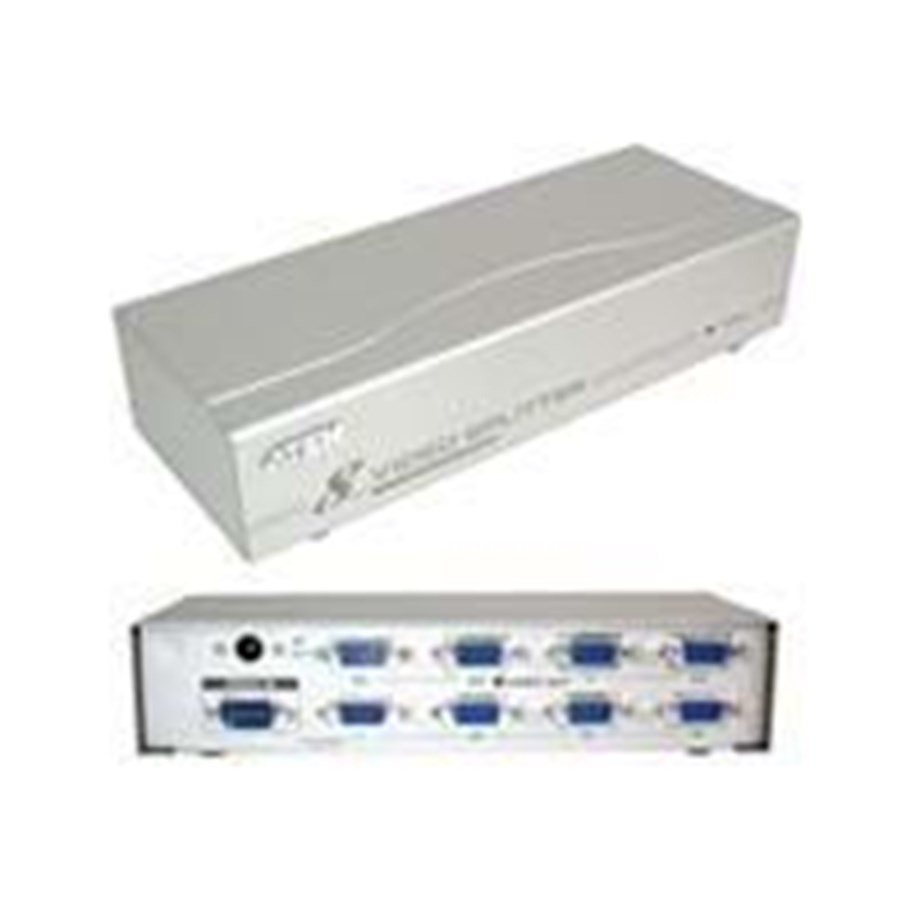

ATEN Video Splitter VS98A

Videon linjanjakaja, 8 x VGA, työpöytä

70,11 € 56,54 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 4-7 arkipäivää toimitukseen

The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to eight video outputs for monitors using analog signals. The signal boost obtained by using the VS98A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.
Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. These units have a bandwidth of 200MHz (which is 150 million cycles per second) and that is 25 times greater than a simple TV signal. This huge bandwidth allows for the transmission of large amounts of information at a very high rate of speed, and thus you can use the very high-resolution setting of 1792 x 1344 in 24 or 32-bit true color mode at a refresh rate of 60Hz.

Valmistaja
Tuotenumero
2038897
Malli
VS98A
Ean
4710423770836
Valmistajan kotisivuille
Tuotekuvaus
ATEN VS98A - videon linjanjakaja - 8 porttia
Laitteen tyyppi
Videon linjanjakaja - 8 porttia - sarjaankytkettävä (cascadable)
Alatyyppi
VGA
Portit
8 x VGA
Ulkomitat (PxSxK)
7.5 cm x 20 cm x 4.5 cm
Paino
0.53 kg

Yleistä

Laitteen tyyppi
Videon linjanjakaja - 8 porttia - sarjaankytkettävä (cascadable)
Kotelon tyyppi
Työpöytä
Alatyyppi
VGA
Portit
8 x VGA
Enimmäis-ryöppymyssyvyys
3
Enimmäistarkkuus
1920 x 1440 @ 60 Hz
Maksimi videotaajuus
300 MHz
Tilan ilmaisimet
Teho

Laajennus / Kytkeytyvyys

Liitännät
8 x VGA-lähtö HD-15
1 x VGA-tulo HD-15

Virransyöttö

Virtalähde
Ulkoinen virtasovitin
Virran kulutus (toiminnassa)
3.94 watti(a)

Muuta

Yhteensopivuusstandardit
DDC-2B, DDC

Mitat & Paino

Leveys
7.5 cm
Syvyys
20 cm
Korkeus
4.5 cm
Paino
0.53 kg

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
