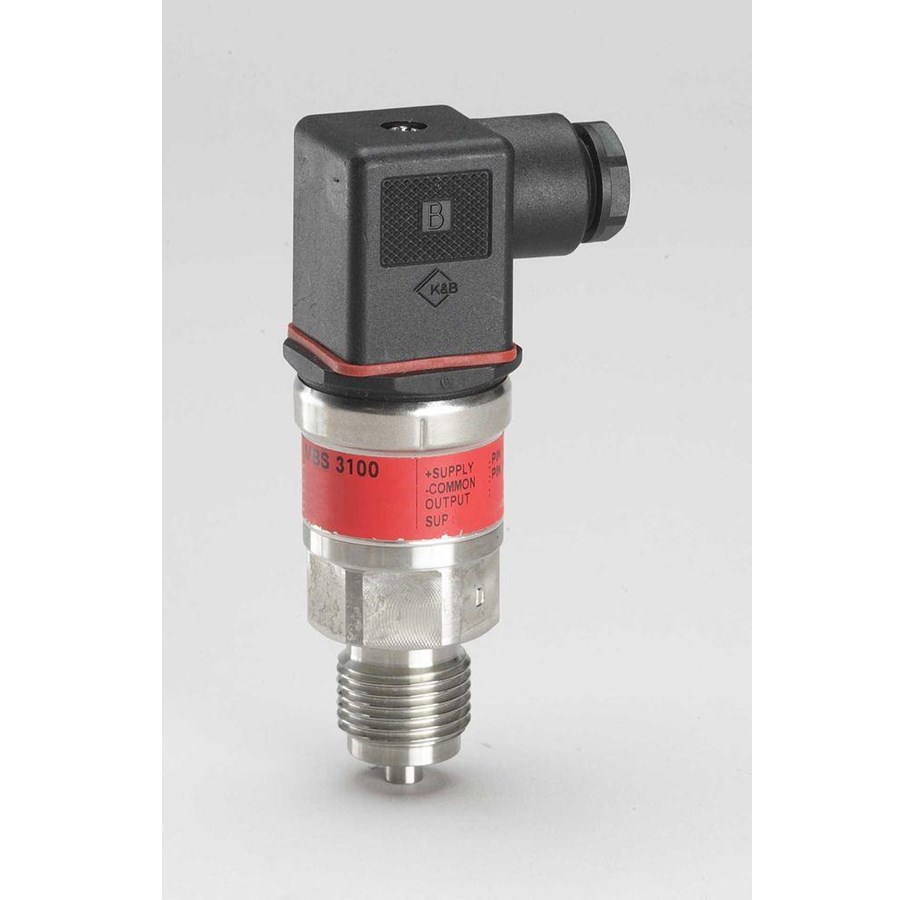

Danfoss Mbs 3100 pressuretransmitter rel 0-10 bar 4-20ma g12

MBS 3100 Pressure Transmitter Rel 0-10 bar 4-20mA G12 Product Description: MBS 3100, Compact pressure transmitters with marine approvals. The compact marine-approved pressure transmitter MBS 3100 is designed for maritime applications and provides reliable pressure measurement even in the most demanding industrial environments. The pressure transmitter is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS and MRS and is characterized by a 4-20 mA output signal, absolute and relative versions with measuring ranges from 0-1 bar to 0-600 bar as well as cables and connectors for a wide range of pressure and electrical connections. Good vibration stability, robust construction and EMC specifications to meet the requirements of the marine sector.,•4 -20 mA output signal •Operating temperature -40 to +85° C •Pressure range: 0 - 600 bar •Standard pressure connection G1/4A DIN16288,G1/4A,O-ring DIN3852G1/2ADIN16288•Available with all marine approvals•Customized for maritime use Technical Specifications: Pressure reference: Gauge (relative)Pressure connection: G1/2Output signal (mA): 4 - 20 mASupply voltage (V DC):10.00 -32.00 V
