Tuotenumero: 2759444

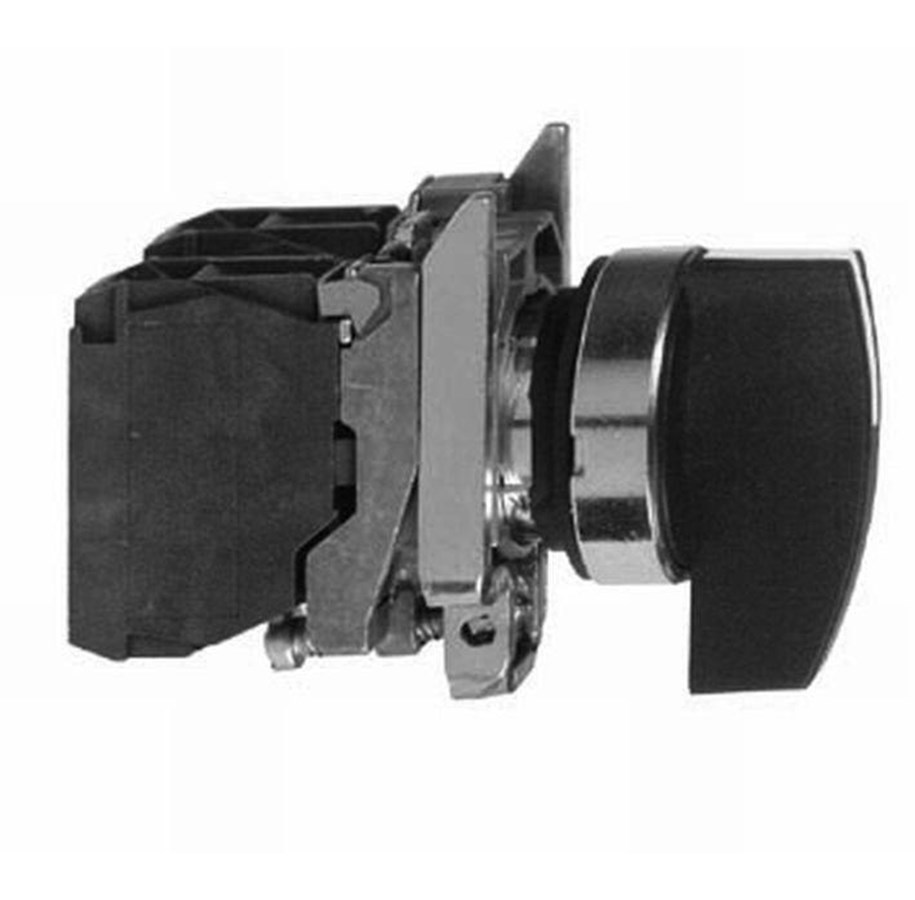

Schneider Electric Harmony rotary switch complete with long Kahva and 3 fixed

musta täydellinen valitsin kytkin Ø22 3-asento pysyvä 2NO

37,02 € 29,50 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 3-6 arkipäivää toimitukseen

Harmony rotary switch complete with long handle and 3 fixed positions 2xNO, XB4BJ33. Product description: Push buttons, switches and diodes with chrome-plated metal front ring, Ø 22 mm. Very wide range of products including push buttons, impulse push buttons with multiple functions in the same Ø22 hole, switches and key handles. Diodes (LED-, incandescent- or neon bulbs) are also available as well as combined functions such as contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) can be assembled by the customer. Connection to contact element: screw terminal with self-tightening feature, plug-in-with connector or ready-made cables, spade connectors and spring terminals are all options available for connection. High power contacts (10A) normally have a rating of 6A while gold contacts have early closing/late breaking features that make them robust and safe for use in harsh environments.Certified and approved to meet requirements on all continents: EN/IEC UL CSA CCC Gost JIS NEMA...CE marked up to IP66 IP69K Electric contact has low load but high power capabilities making it suitable for use in rugged environments where high-pressure cleaning dust extreme temperatures may be present.There is a complete set of accessories designed for applications that require daily exposure to high-pressure cleaning dust extreme temperatures etc., which can be found under More Links.Simple installation requires only one installation program secured by a single locking screw that prevents rotation; common accessories are also available.Technical specifications include two NO contacts long handle type three fixed positions among others

Valmistaja
Tuotenumero
2759444
Malli
XB4BJ33
Ean
3389110887105
Valmistajan kotisivuille
Tuotteen väri
Musta
International Protection (IP)-koodi
IP67
Ylijännitekategoria
Luokka I
Mekaaninen kestävyys (sykliä)
1000000
Sähköinen kestävyys (sykliä)
1000000
Tuotteen leveys
30 mm
Tuotteen syvyys
68 mm
Tuotteen korkeus
48 mm
Paino
105 g
Pakkauksen paino
104 g
Pakkauksen syvyys
56 mm
Pakkauksen leveys
90 mm
Pakkauksen korkeus
38 mm
Lukumäärä per pakkaus
1 kpl
Käyttölämpötila (T-T)
-40 - 70 °C
Varastointilämpötila
-40 - 70 °C

Ominaisuudet

Tuotteen väri
Musta
International Protection (IP)-koodi
IP67
Ylijännitekategoria
Luokka I
Mekaaninen kestävyys (sykliä)
1000000
Sähköinen kestävyys (sykliä)
1000000

Paino ja mitat

Tuotteen leveys
30 mm
Tuotteen syvyys
68 mm
Tuotteen korkeus
48 mm
Paino
105 g
Pakkauksen paino
104 g
Pakkauksen syvyys
56 mm
Pakkauksen leveys
90 mm
Pakkauksen korkeus
38 mm
Lukumäärä per pakkaus
1 kpl

Ympäristöolosuhteet

Käyttölämpötila (T-T)
-40 - 70 °C
Varastointilämpötila
-40 - 70 °C

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
