Schneider Electric Sieni työntää mutta pää

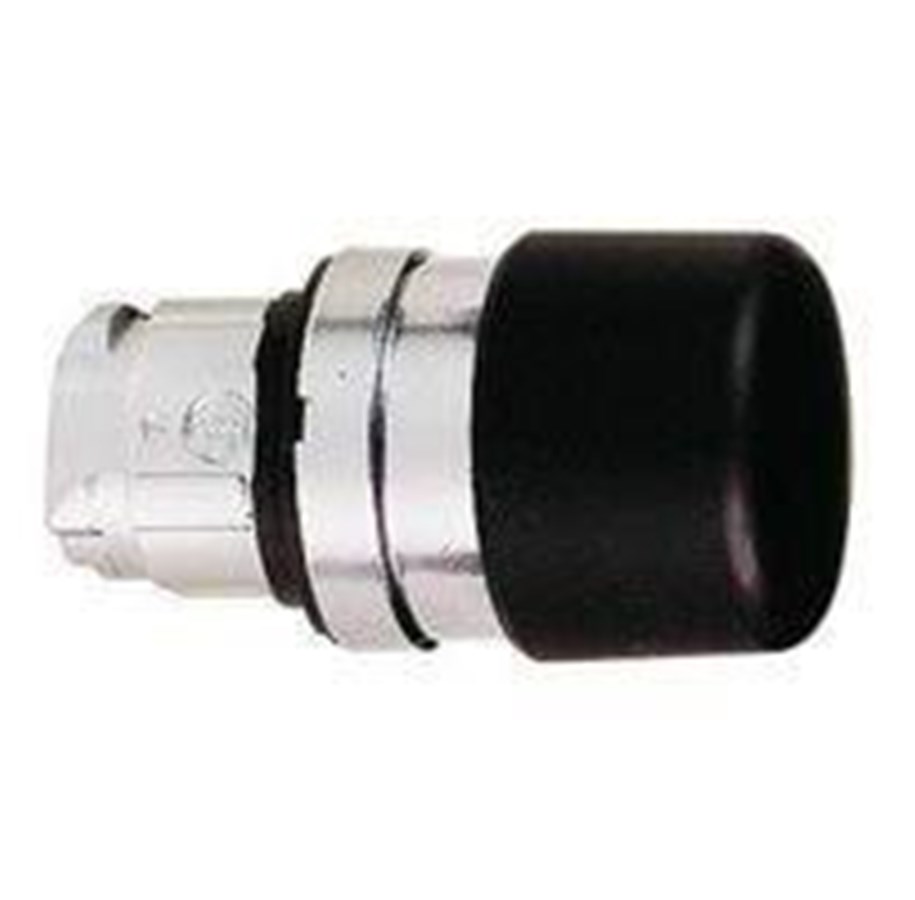

Pushbutton switch with Ø30 head. Product description: Pushbuttons, switches, and diodes with chrome-plated metal front rings, Ø 22 mm. Very wide range of products including pushbuttons with impulse function, pushbuttons with multiple functions in the same Ø22 hole, switches and key grips, diodes (LED-, incandescent- or neon bulbs), combined functions such as contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) are assembled at the customer's site. Connection to contact element: screw terminal with self-tightening feature; plug-in connector or pre-made cables; spade connectors; spring terminals. High-power contacts (10A) normally 6A. Gold contacts for early closing and late breaking. Robust and safe certified to meet requirements on all continents: EN/IEC UL CSA CCC Gost JIS NEMA... CE marked up to IP66 IP69K Electric contact with low load and high power Rugged connection screws that do not require tightening Also available for use in harsh environments A complete set of accessories is available for applications that are subjected to high-pressure cleaning dust extreme temperatures etc More information can be found under Additional Links Simple and fast installation requires only one installation program Secured by a single locking screw (rotation-proof) Common accessories Technical specifications Color: Black Diameter(Ø mm): Ø30
