Tuotenumero: 3403098

Digi TX40 - wireless router - WWAN - Wi-Fi 6 Bluetooth - desktop - Wireless router Wi-Fi 6

Langaton reititin, WWAN 1GbE Dual Band AT&T, T-Mobile, Verizon Wireless malleihin P/N: 76002121, 76002136

2 442,79 € 1 946,45 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tilaustuote, toimitusaikaa ei voida ilmoittaa

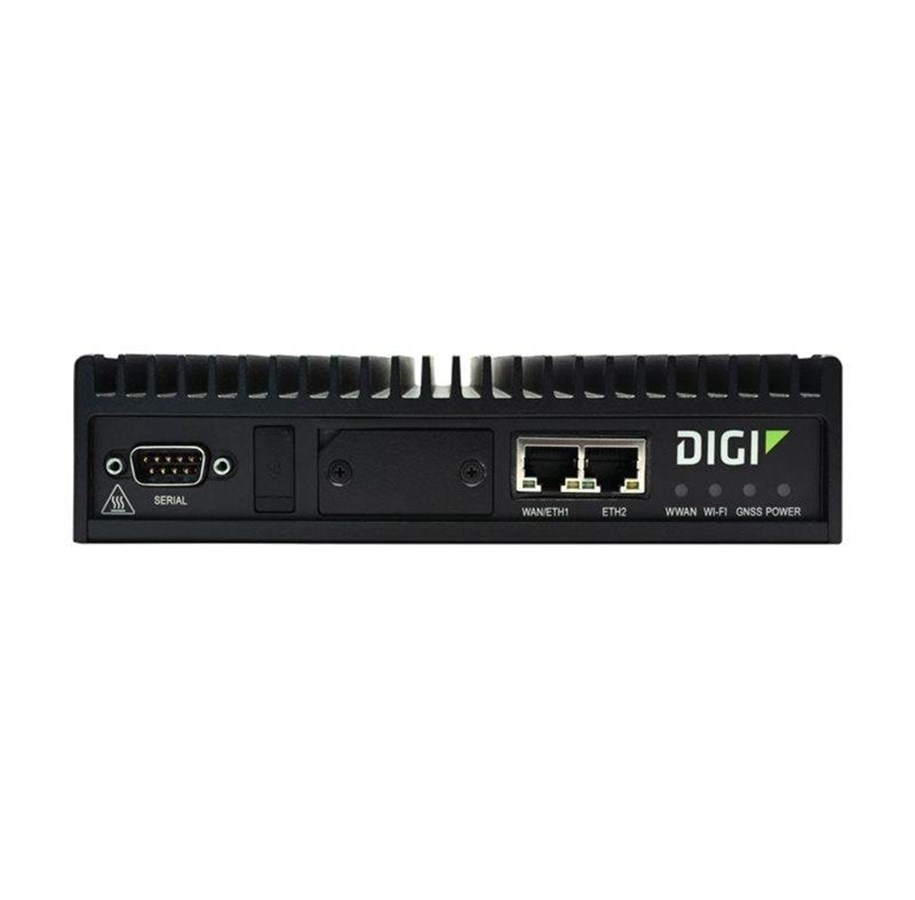

The Digi TX40 is a versatile wireless cellular modem designed to meet demanding connectivity needs across various environments. Offering a robust chassis combined with built-in GPS, GLONASS, Beidou, and Galileo capabilities, this device ensures accurate positioning and navigation features for any application. It operates seamlessly in extreme conditions, with a minimum operating temperature of -34 °C and a maximum of 74 °C, while maintaining functionality in humidity levels ranging from 0% to 95% non-condensing. Equipped with extensive mobile broadband support, including 5G and LTE Advanced Pro along with multiple cellular bands, it provides reliable Internet access for smart devices. The networking capabilities include both wired and wireless connectivity options, supporting Ethernet, Fast Ethernet, Gigabit Ethernet, and Wi-Fi standards from 802.11a to ax. Security features such as VPN support, firewall, and various encryption algorithms enhance data safety, making the Digi TX40 an ideal choice for businesses needing reliable and secure network communication.

Valmistaja
Tuotenumero
3403098
Malli
TX40-A500
Valmistajan kotisivuille
Tuotekuvaus
Digi TX40 - langaton reititin - WWAN - Wi-Fi 6, Bluetooth - työpöytä
Laitteen tyyppi
Langaton reititin - langaton kännykkämodeemi
Kotelon tyyppi
Työpöytä
Palveluntarjoaja
AT&T, T-Mobile, Verizon Wireless
Matkapuhelimen protokolla
LTE Advanced Pro Cat 20, 5G
Mobiilikaista
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19
WAN-porttien määrä
1
Tiedonsiirtoprotokolla
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Taajuuskaista
2.4 GHz / 5 GHz
Verkko / Siirtoprotokolla
DHCP, UDP, TCP
Reititysprotokolla
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Kaukohallintaprotokolla
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Ominaisuudet
NAT-tuki, NAPT tuki, VLAN-tuki, Syslog tuki, sisällön suodatus, MAC-osoitesuodatus, ATS, IPSec-asiakas, dynaaminen DNS, DNS-palvelin, Captive Portal, NTP-palvelin, IP-monilähetys, mDNS, OpenVPN client -osa
Yhteensopivuusstandardit
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n
Ulkomitat (PxSxK)
19.8 cm x 13.8 cm x 4.4 cm
Paino
1 kg
Suunniteltu malleihin
P/N: 76002121, 76002136

Yleistä

Laitteen tyyppi
Langaton reititin
Palveluntarjoaja
AT&T, T-Mobile, Verizon Wireless
Kotelon tyyppi
Työpöytä
Liitettävyystekniikka
Langaton, langallinen
Tiedonsiirtoprotokolla
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Taajuuskaista
2.4 GHz / 5 GHz
Verkko / Siirtoprotokolla
DHCP, UDP, TCP
Reititysprotokolla
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Kaukohallintaprotokolla
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Salausalgoritmi
FIPS 197, WPA, WPA2, WPA3, FIPS 140-2, SSL 3.0, SHA-1, MD5, RSA, DES, 3DES, AES 256 bittiä, IKEv1, IKEv2
Tunnistusmenetelmä
RADIUS, X.509 varmennukset, TACACS+
Ominaisuudet
NAT-tuki, NAPT tuki, VLAN-tuki, Syslog tuki, sisällön suodatus, MAC-osoitesuodatus, ATS, IPSec-asiakas, dynaaminen DNS, DNS-palvelin, Captive Portal, NTP-palvelin, IP-monilähetys, mDNS, OpenVPN client -osa
Yhteensopivuusstandardit
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, PTCRB, IEC 62368-1 CB Scheme, e-mark certified, FCC Part 15 B, IC, UKCA, MIL-STD-810H
Sisäänrakennetut laitteet
GPS, GLONASS, Beidou, Galileo
Tilan ilmaisimet
Teho, GNSS, Wi-Fi, WWAN, Ethernet-linkki/toiminta

Tietoliikenne

Tyyppi
Langaton kännykkämodeemi
Matkapuhelimen protokolla
LTE Advanced Pro Cat 20, 5G
Mobiilikaista
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19

Laajennus / Kytkeytyvyys

Liitännät
LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Sarja: 1 x RS-232 - 9-nastainen D-Sub (DB-9)
USB 3.0: 1 x 9 pin USB Type A
Laajennuspaikat
2 (yhteensä)/ 2 (vapaa) x Mini-SIM

Virransyöttö

Virtalähde
Ulkoinen virtasovitin

Mitat & Paino

Leveys
19.8 cm
Syvyys
13.8 cm
Korkeus
4.4 cm
Paino
1 kg

Ympäristötiedot

Vähimmäiskäyttölämpötila
-34 °C
Enimmäiskäyttölämpötila
74 °C
Toimintakosteus
0 - 95% (höyrystymätön)

Yhteensopivuustiedot

Suunniteltu malleihin
P/N: 76002121, 76002136

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
