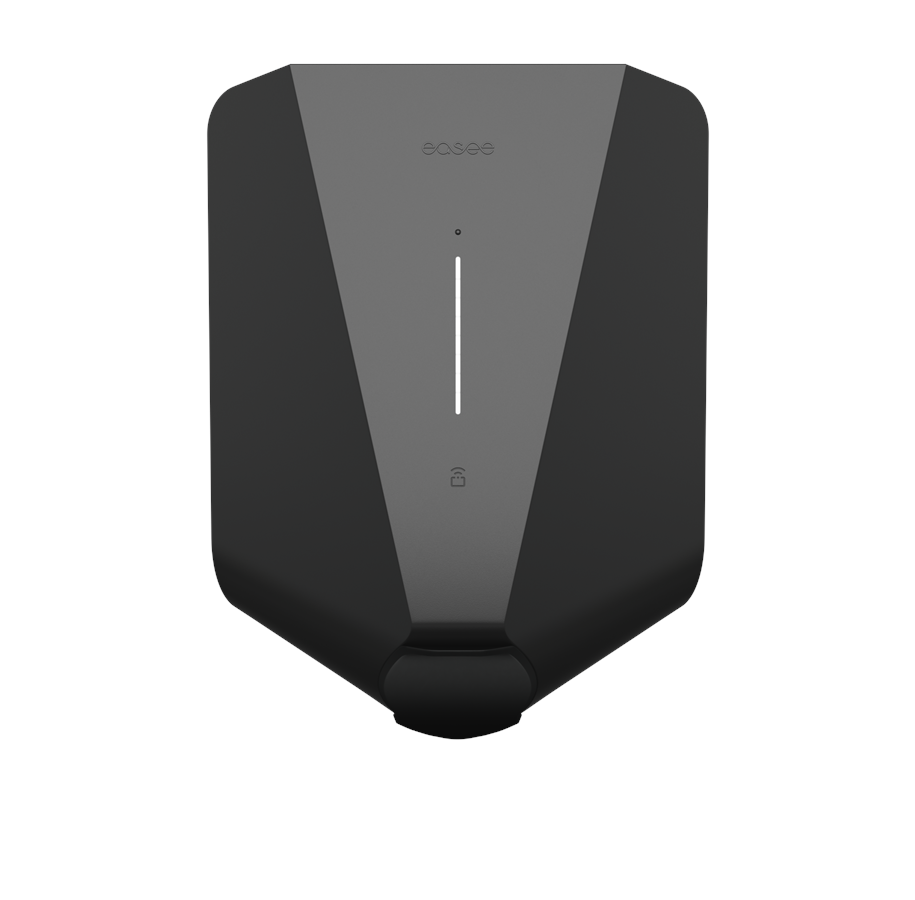

Easee UP charging box 1.4-22kW with kWh meter 4G and WiFi Black

Discover Easee's reliable and future-proof electric car charger for your home charging needs. Charge Up supports all electric cars, phases and power grids and delivers the highest possible power. The advanced and smart safety features contribute to safe charging.

Charge Up can charge up to 7.4 kW on a single-phase circuit and up to 22 kW on a three-phase circuit. Install up to three chargers per charging station in your home. The charger is continuously updated with the latest functionality.

• Easee LinkTM local load and phase balancing.
• Automatic queuing system.
• Permanent locking of the Type 2 cable.
• Integrated RFID reader (NFC/ISO 14443 and MIFARE Classic®).
• Universal, fits all types of electric cars and power supplies.
• Full control with Easee App or third-party integrations.
• Manufacturer's warranty: 5 years according to Easee's warranty terms.

General

• Dimensions (mm): H: 256 x W: 193 x D: 106.
• Wall mounting (mm): c/c
• H: 160 x W: 125.
• Operating temperature: -30 °C to +40 °C.
• Weight: 1.5 kg.

Connectivity

• Wi-Fi 2.4 GHz b/g/n. Bluetooth BLE 4.2. Built-in LTE Cat M1. OCPP 1.6J
• Easee Link (between chargers / between charger and Equalizer).
• Built-in RFID/NFC reader for access control.
• Easee App for control and monitoring.

Charging power

• 1-phase: 1.4 kW (6 A) - 7.4 kW (32 A).
• TN 3-phase: 4.1 kW (6 A) - 22 kW (32 A).
• IT 3-phase: 2.4 kW (6 A) - 12.7 kW (32 A).

Electrical

• Voltage: 3x 230 V / 400 V AC (±10%).
• Mains frequency: 50 Hz.
• Mains: TN, IT, TT.
• Connection point: Type-2 contact (Mode 3).
• Automatic adjustment of charging speed based on available power.
• Automatic charging with solar energy.
• Automatic phase balancing.

Connection point fault protection

• Integrated residual current device type A 30 mA AC according to EN 60947-2 and 6 mA device for detecting DC residual currents (RDC-DD) according to IEC 62955, 9.9. Temperature monitoring.
• Overload protection.
• Degree of protection: IP54 (back plate is IP22 without cover).
• Impact resistance: IK10.
• Overvoltage category III.
• Anti-theft.

Complies with the following regulations

• 2014/53/EU (RED).
• 2011/65/EU (RoHS).
• 2014/30/EU (EMC).
• 2014/35/EU (LVD).

Easee App

• Check charging.
• View charger status.
• Lock/unlock charging cable.
• Approve charging with app.
• Charging session summary.
• Lifetime consumption counter.
• Overview of available energy.
• Configuration
