Noratel 4562035548

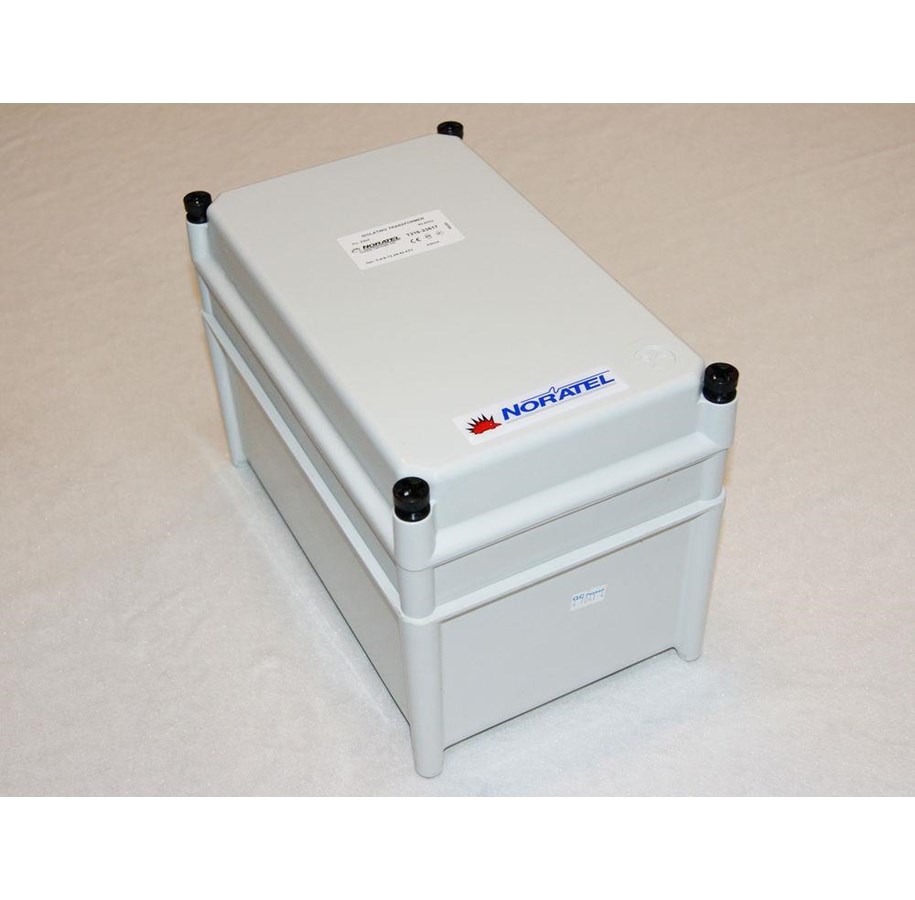

Elfrost transformer 230/0-130V-190V/10.5A-160V-230V/9A 2070VA IP65 T240-27677 Product description: GTO protection transformer Type T240-27677 Primary voltage 230V Secondary voltage 0 - 130V - 190V - Maximum current of 10.5A Secondary voltage of160V -230 V - Maximum current of9A Power output is2070VA Enclosed in an IP65 casing, these single-phase isolation transformers are designed and manufactured according to EN61558-2-4 standards and CE marked. The transformers have separate windings and are impregnated with heat-cured varnish. The transformer is built into an APO type enclosure, optimized for installation dimensions and minimal losses. Application: Used in connection with frost protection of water pipes, the transformers must be protected against overcurrents and short circuits according to the rated current / short circuit current in the applicable installation regulations.Special designs available upon request.
