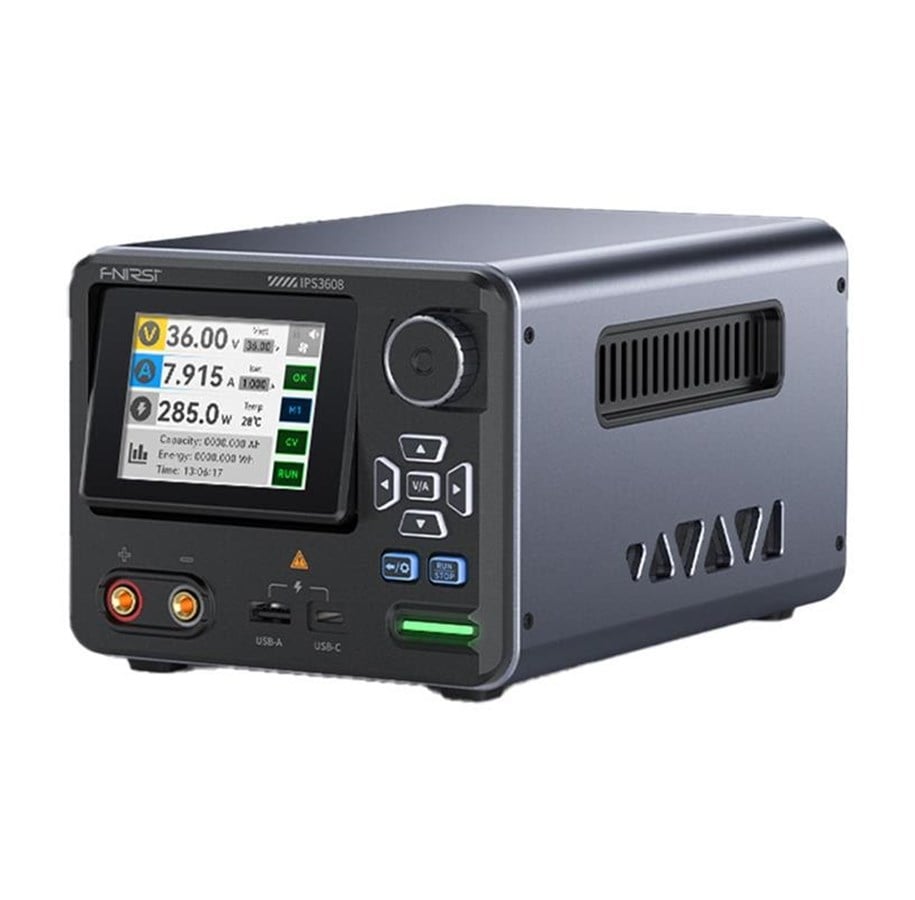

FNIRSI IPS3608 Intelligent Digital AC-DC Power Supply

The FNIRSI IPS3608 is a professional intelligent digital AC-DC power supply developed for engineers, technicians, laboratories, and research environments that demand accurate, stable, and programmable power output. Delivering up to 285 W of power with ultra-low ripple performance of just 10 mV, it provides exceptionally clean energy suitable for sensitive electronic circuits and precision testing applications. High-efficiency MOSFET technology combined with LC filtering minimizes electrical noise and improves overall performance. The power supply automatically switches between constant voltage (CV) and constant current (CC) modes, ensuring stable operating conditions and repeatable results across a wide range of applications.

A durable CNC-machined aluminum enclosure enhances heat dissipation and mechanical strength, while the intelligent cooling system actively regulates temperature during demanding workloads. The 2.8-inch TFT color display offers multiple viewing modes, adjustable brightness, and selectable light or dark themes for comfortable operation. Advanced software integration enables real-time monitoring, data logging, curve recording, preset management, sequential output control, and voltage/current scanning. Built-in USB-A and USB-C ports with support for PD, QC, FCP, SCP, and AFC fast-charging protocols further expand the device’s functionality. Comprehensive protection systems safeguard both the power supply and connected equipment during operation.

Performance highlights:
• Programmable AC-DC laboratory power supply with 285 W output
• Ultra-low ripple performance of only 10 mV for clean power delivery
• Automatic switching between constant voltage (CV) and constant current (CC) modes
• High-efficiency MOSFET design with LC filtering for reduced noise and interference
• Durable CNC-machined aluminum housing with intelligent active cooling
• 2.8-inch TFT color display with adjustable brightness and viewing angle
• Multiple interface layouts with selectable light and dark display themes
• Save up to six custom presets for voltage, current, and protection settings
• PC software support for monitoring, data logging, and curve analysis
• Sequential output and voltage/current scanning functions
• USB-A and USB-C ports with PD, QC, FCP, SCP, and AFC fast charging support
• Eight integrated protections including overvoltage, overcurrent, overload, overheating, reverse polarity, reverse current, undervoltage, and short-circuit protection
