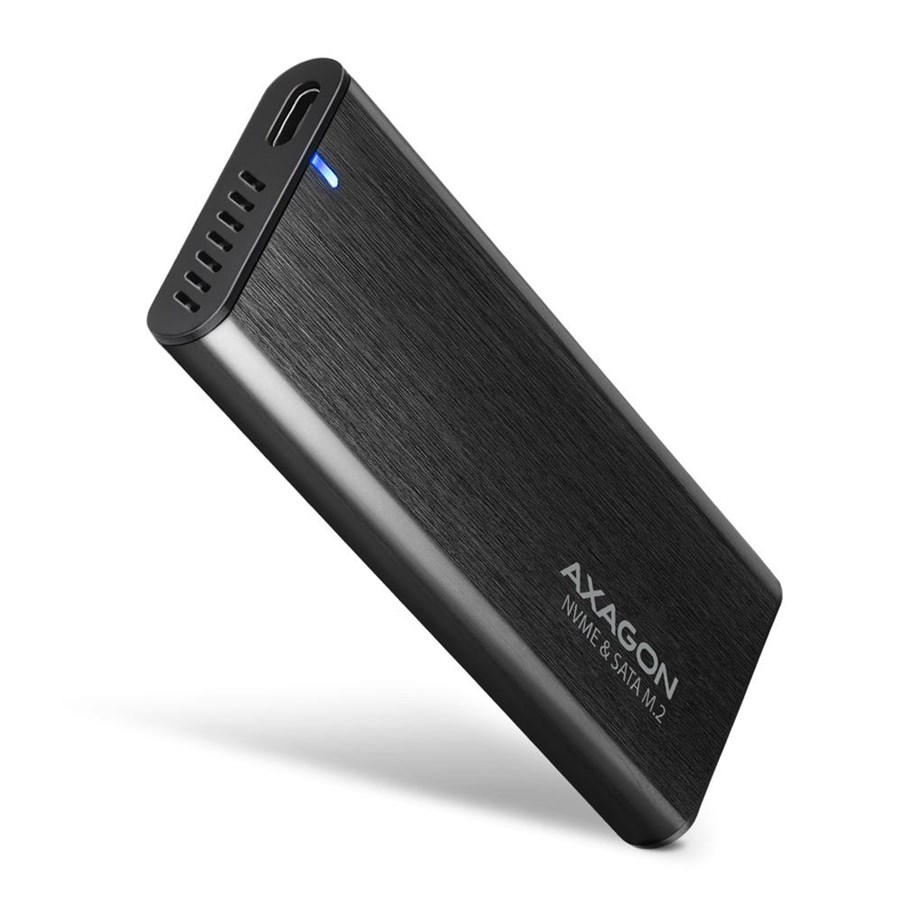

AXAGON SuperSpeed USB-C 10 Gbps Raw Box for NVMe & SATA M.2 SSD

The universal external AXAGON EEM2-SB2 RAW Box with a USB 3.2 Gen 2 interface is designed for M.2 NVMe or SATA SSDs. The double-sided USB-C connector ensures a reliable connection. The package includes both a USB-C to USB-C cable and a USB-C to USB-A adapter, allowing you to connect the box to any available USB port on your notebook.

The second-generation high-speed USB interface allows you to enjoy the full speed of modern M.2 SSDs. With transfer rates of up to 10 Gbit/s via the USB 3.2 Gen 2 interface, this external M.2 enclosure supports advanced features such as UASP, TRIM, and S.M.A.R.T. for monitoring the drive’s health. It also supports standby mode when idle.

A unique feature of this box, thanks to the new chipset, is its compatibility with both M.2 NVMe and SATA drives. You don’t have to worry about which type of M.2 drive you install. It supports SSD lengths of 42, 60, and 80 mm, in both single- and double-sided formats, with no capacity limits.

The screwless design allows for easy assembly and quick replacement of M.2 SSDs, making it ideal for data migration, testing, or drive swapping.

The outer metal body in elegant black features a brushed finish that resists fingerprints. The rounded design ensures comfortable handling, while the aluminium construction, ventilation holes, and thermal pad provide excellent cooling for your SSD. This extends the drive’s lifespan and helps prevent performance slowdown due to thermal throttling.

By inserting an M.2 SSD, you can easily create a compact, high-speed external drive compatible with computers, notebooks, mobile phones, and tablets.

Input

• USB 3.2 Gen 2 (USB 3.1 Gen 2) SuperSpeed USB 10 Gbit/s.
• Speed up to 10 Gbit/s.
• Connection via reversible USB Type-C female connector.

Device support

• NVMe M.2 SSDs
• SATA M.2 SSDs
• Supports M key and B+M key card formats
• NGFF 75-pin M key slot for M.2 drives

Other features

• Compatible with USB 3.2 Gen 2; backward compatible with USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) and USB 2.0.
• Supports transfer rates of 10 000 / 5 000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed).
• Supports M key or B+M key NVMe (PCI Express) and SATA (AHCI) M.2 SSDs without capacity limitations.
• Supports M.2 sizes 2242, 2260, 2280 mm (single- or double-sided).
• Compliant with PCI Express 3.1a, NVMe 1.3, Serial ATA 3.2, and USB Mass Storage Class specifications.
• Maximum theoretical transfer rate up to 10 Gbit/s; real transfer rate approximately 1 000 MB/s (1 GB/s).
• Supports BOT (Bulk-Only Transport) and UASP (USB Attached SCSI) for faster transfers in Windows 8 and later.
• Supports TRIM to maintain SSD performance and S.M.A.R.T. for drive condition monitoring.
• Supports SSD boot in the external enclosure.
• Hot Plug and Plug-and-Play support.
• Standby mode activates after 5 minutes of inactivity.
• Powered via USB 3.0 bus (up to 900 mA) – no external power supply needed.
• Blue LED indicator shows connection (steady) and data transfer (blinking).
• Aluminium body with thermal pad ensures effective heat dissipation.
• Higher surface temperature is normal and improves heat transfer.
• USB Type-C female connector; includes 20 cm USB Type-C to USB Type-C cable and USB-C to USB-A adapter.

Other data

• External box dimensions: 94 × 41 × 10 mm.
• Weight: 35 g (without cable or SSD).

Supported operating systems

• Windows 7 / 8 / 8.1 / 10 / 11 and later (all 32- and 64-bit versions).
• Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later.
• macOS X 10.x and later.
• Linux kernel 2.6.x and later.
• Android (OS and device support required).

Note: When using Windows 7, verify OS and driver support with the SSD manufacturer.

Package contents

• AXAGON EEM2-SB2 USB-C 3.2 Gen 2 external box for M.2 NVMe / SATA SSDs
• USB-C to USB-C cable (20 cm) and USB-C to USB-A adapter
• 1 × thermal pad
• Mounting material
• Multilingual guide (CZ, DE, DK, EN, ES, FI, FR, GR, HR, HU, IT, NL, PL, PT, RO, RU, SK, SV, TR, BG, CN, ARA)
• Packed in a cardboard box with hanging hole
