Tuotenumero: 3445637

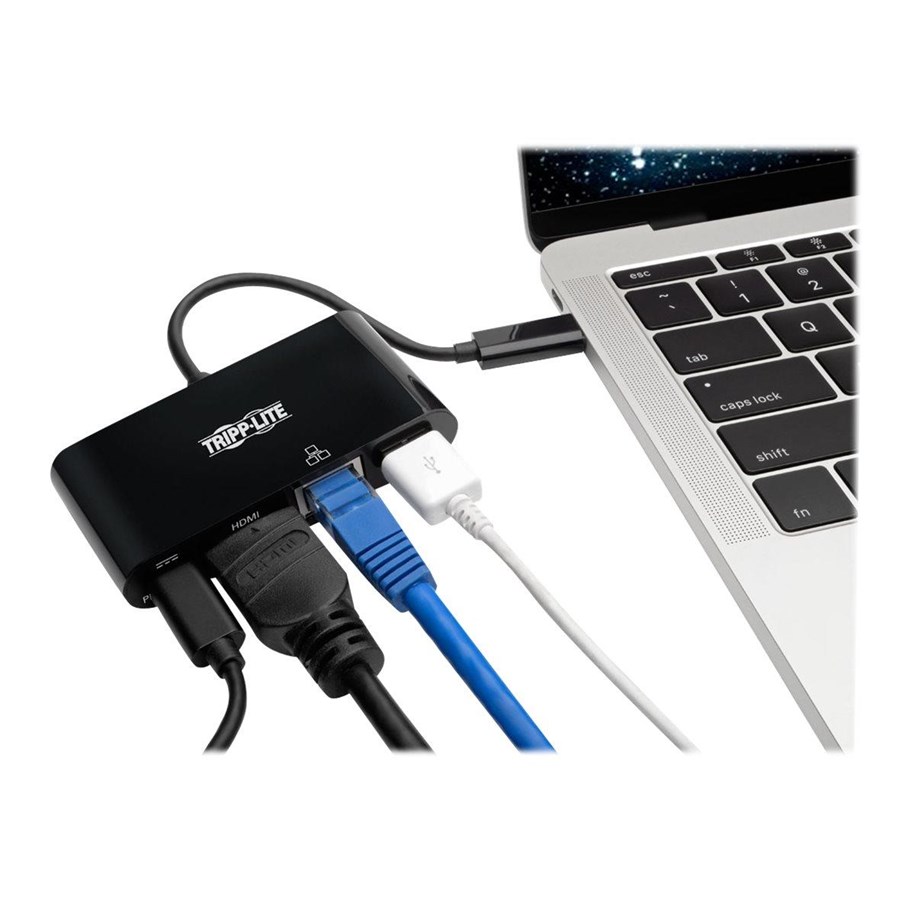

Eaton Series USB C to HDMI Multiport Video Adapter Converter w/ USB-A Hub USB-C PD Charging Port & Gigabit Ethernet Port Thunderbolt 3 Compatible USB Type C to HDMI USB Type-C

Telakointiasema, USB-C, HDMI, 1GbE

133,58 € 106,44 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen

This USB 3.1 to HDMI adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and 4K video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network - all at the same time.With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.To send 7.1-channel surround sound and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (sold separately). The HDMI port supports UHD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz.The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. The port provides up to 5V/1.5A (7.5W) of fast-charging power to mobile devices.The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-H4GUB-C is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W).The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.The plug-and-play USB to HDMI adapter works with all operating systems. It requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.The U444-06N-H4GUB-C comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Valmistaja
Tuotenumero
3445637
Malli
U444-06N-H4GUBC
Ean
0037332209146
Valmistajan kotisivuille
Isäntäkoneen käyttöliittymä
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 (3.1 sukupolvi 1) A-tyypin porttien määrä
1
HDMI-porttien lukumäärä
1
USB 3.2 Gen 2 (3.1 Gen 2) C-tyypin porttien määrä
1
Ethernet LAN (RJ-45) -portit
1
Verkkostandardit
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X
Kyllä
Täysin kaksipuolinen
Kyllä
Tuotteen väri
Musta
Liittimiä
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Plug & Play -yhteensopiva
Kyllä
Kotelon materiaali
Polyvinyylikloridi (PVC)
Alkuperämaa
Vietnam
Sertifiointi
CE, FCC, RoHS, REACH
Virtalähteen malli
USB
Virrankulutus
2,8 W
Käyttölämpötila (T-T)
0 - 45 °C
Varastointilämpötila
-10 - 70 °C
Käytön suhteellinen kosteus (H-H)
10 - 85%
Säilytysympäristön kosteus
5 - 90%
Tuotteen leveys
39,9 mm
Tuotteen syvyys
80 mm
Tuotteen korkeus
14,5 mm
Paino
45,36 g
Pakkauksen leveys
140 mm
Pakkauksen syvyys
100,1 mm
Pakkauksen korkeus
23,1 mm
Pakkauksen paino
90 g
Tuotepakkauksen GTIN (EAN/UPC)
10037332209143
Määrä per tuotepakkaus
10 kpl
Tukkupakkauksen leveys
294,9 mm
Tuotepakkauksen pituus
134,9 mm
Tukkupakkauksen korkeus
119,9 mm
Tuotepakkauksen paino
680 g
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84719000

Liitettävyys

Isäntäkoneen käyttöliittymä
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 (3.1 sukupolvi 1) A-tyypin porttien määrä
1
HDMI-porttien lukumäärä
1
USB 3.2 Gen 2 (3.1 Gen 2) C-tyypin porttien määrä
1

Verkko

Ethernet LAN (RJ-45) -portit
1
Verkkostandardit
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X
Kyllä
Täysin kaksipuolinen
Kyllä

Suorituskyky

Tuotteen väri
Musta
Liittimiä
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Plug & Play -yhteensopiva
Kyllä
Kotelon materiaali
Polyvinyylikloridi (PVC)
Alkuperämaa
Vietnam
Sertifiointi
CE, FCC, RoHS, REACH

Virranhallinta

Virtalähteen malli
USB
Virrankulutus
2,8 W

Ympäristöolosuhteet

Käyttölämpötila (T-T)
0 - 45 °C
Varastointilämpötila
-10 - 70 °C
Käytön suhteellinen kosteus (H-H)
10 - 85%
Säilytysympäristön kosteus
5 - 90%

Paino ja mitat

Tuotteen leveys
39,9 mm
Tuotteen syvyys
80 mm
Tuotteen korkeus
14,5 mm
Paino
45,36 g

Pakkaustiedot

Pakkauksen leveys
140 mm
Pakkauksen syvyys
100,1 mm
Pakkauksen korkeus
23,1 mm
Pakkauksen paino
90 g

Tekniset tiedot

Tuotepakkauksen GTIN (EAN/UPC)
10037332209143

Logistiikkatiedot

Määrä per tuotepakkaus
10 kpl
Tukkupakkauksen leveys
294,9 mm
Tuotepakkauksen pituus
134,9 mm
Tukkupakkauksen korkeus
119,9 mm
Tuotepakkauksen paino
680 g
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84719000

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
