Tuotenumero: 2483824

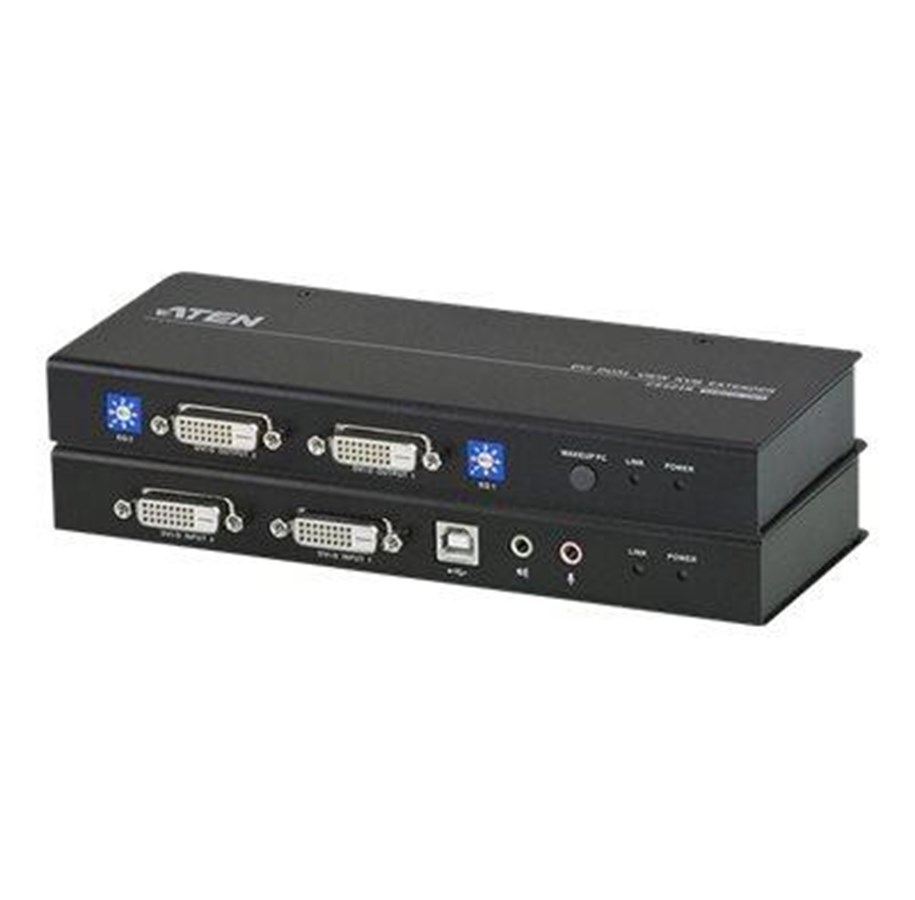

ATEN CE604 USB DVI Dual View Cat 5 KVM -jatkojohto (1024 x 768@60m)
KVM / audio / sarjaliitännän laajennin, USB, jopa 60 m
598,90 €
477,21 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tilaustuote, 2-3 kuukautta toimitukseen
The CE604 is a DVI dual-view USB based KVM extender that features dual-view functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC wake up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.
The CE604 is ideal for applications that require the console to be in a conveniently accessible location, while the system equipment needs to reside in a safe place - away from dust, dirt and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center, while still allowing remote access to users.
The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC wake up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.
The CE604 is ideal for applications that require the console to be in a conveniently accessible location, while the system equipment needs to reside in a safe place - away from dust, dirt and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center, while still allowing remote access to users.
Valmistaja
Tuotenumero
2483824
Malli
CE604-AT-G
Ean
4719264640025
Valmistajan kotisivuille
Malli
Lähetin & vastaanotin
Yhteysteknologia
Langallinen
Suurin siirtoetäisyys
60 m
Tuetut kaapelityypit
Cat5, Cat5e
Telineasennus
Kyllä
Digitaalinen enimmäistarkkuus
1920 x 1200 pikseliä
Tuetut resoluutiot
1920 x 1200, 1024 x 768
Tuotteen väri
Musta
Materiaali
Metalli
LED-merkkivalot
Linkki, Teho
Lähettimen videoportin tyyppi
DVI-D
Lähettimen paikallisen näppäimistön/hiiren porttityyppi
USB
RJ-45 porttien määrä (lähetin)
2
Vastaanottimen paikallisen videoportin tyyppi
DVI-D
Vastaanottimen paikallisen näppäimistön/hiiren porttityyppi
USB
RJ-45 porttien määrä (vastaanotin)
2
AC-adapterin lähtöjännite
5.3 V
Lähettimen leveys
20,2 cm
Lähettimen syvyys
8,53 cm
Lähettimen korkeus
2,5 cm
Lähettimen paino
490 g
Vastaanottimen leveys
20,2 cm
Vastaanottimen syvyys
8,67 cm
Vastaanottimen korkeus
2,5 cm
Vastaanottimen paino
490 g
Pakkauksen leveys
98 mm
Pakkauksen syvyys
325 mm
Pakkauksen korkeus
210 mm
Pakkauksen paino
2,06 kg
Käyttöopas
Kyllä
Pika-asennusopas
Kyllä
Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-20 - 60 °C
Käytön suhteellinen kosteus (H-H)
0 - 80%
Säilytysympäristön kosteus
0 - 80%
Paino
1,99 kg
Tuotepakkauksen nettopaino
9,95 kg
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84733080
Tukkupakkauksen leveys
342 mm
Tuotepakkauksen pituus
512 mm
Tukkupakkauksen korkeus
232 mm
Tuotepakkauksen paino
11 kg
Määrä per tuotepakkaus
5 kpl
Ominaisuudet
Malli
Lähetin & vastaanotin
Yhteysteknologia
Langallinen
Suurin siirtoetäisyys
60 m
Tuetut kaapelityypit
Cat5, Cat5e
Telineasennus
Kyllä
Digitaalinen enimmäistarkkuus
1920 x 1200 pikseliä
Tuetut resoluutiot
1920 x 1200, 1024 x 768
Tuotteen väri
Musta
Materiaali
Metalli
LED-merkkivalot
Linkki, Teho
Lähetin
Lähettimen videoportin tyyppi
DVI-D
Lähettimen paikallisen näppäimistön/hiiren porttityyppi
USB
RJ-45 porttien määrä (lähetin)
2
Vastaanottaja
Vastaanottimen paikallisen videoportin tyyppi
DVI-D
Vastaanottimen paikallisen näppäimistön/hiiren porttityyppi
USB
RJ-45 porttien määrä (vastaanotin)
2
Virranhallinta
AC-adapterin lähtöjännite
5.3 V
Paino ja mitat
Lähettimen leveys
20,2 cm
Lähettimen syvyys
8,53 cm
Lähettimen korkeus
2,5 cm
Lähettimen paino
490 g
Vastaanottimen leveys
20,2 cm
Vastaanottimen syvyys
8,67 cm
Vastaanottimen korkeus
2,5 cm
Vastaanottimen paino
490 g
Pakkaustiedot
Pakkauksen leveys
98 mm
Pakkauksen syvyys
325 mm
Pakkauksen korkeus
210 mm
Pakkauksen paino
2,06 kg
Pakkauksen sisältö
Käyttöopas
Kyllä
Pika-asennusopas
Kyllä
Ympäristöolosuhteet
Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-20 - 60 °C
Käytön suhteellinen kosteus (H-H)
0 - 80%
Säilytysympäristön kosteus
0 - 80%
Tekniset tiedot
Paino
1,99 kg
Logistiikkatiedot
Tuotepakkauksen nettopaino
9,95 kg
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84733080
Tukkupakkauksen leveys
342 mm
Tuotepakkauksen pituus
512 mm
Tukkupakkauksen korkeus
232 mm
Tuotepakkauksen paino
11 kg
Määrä per tuotepakkaus
5 kpl
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
