Tuotenumero: 2908024

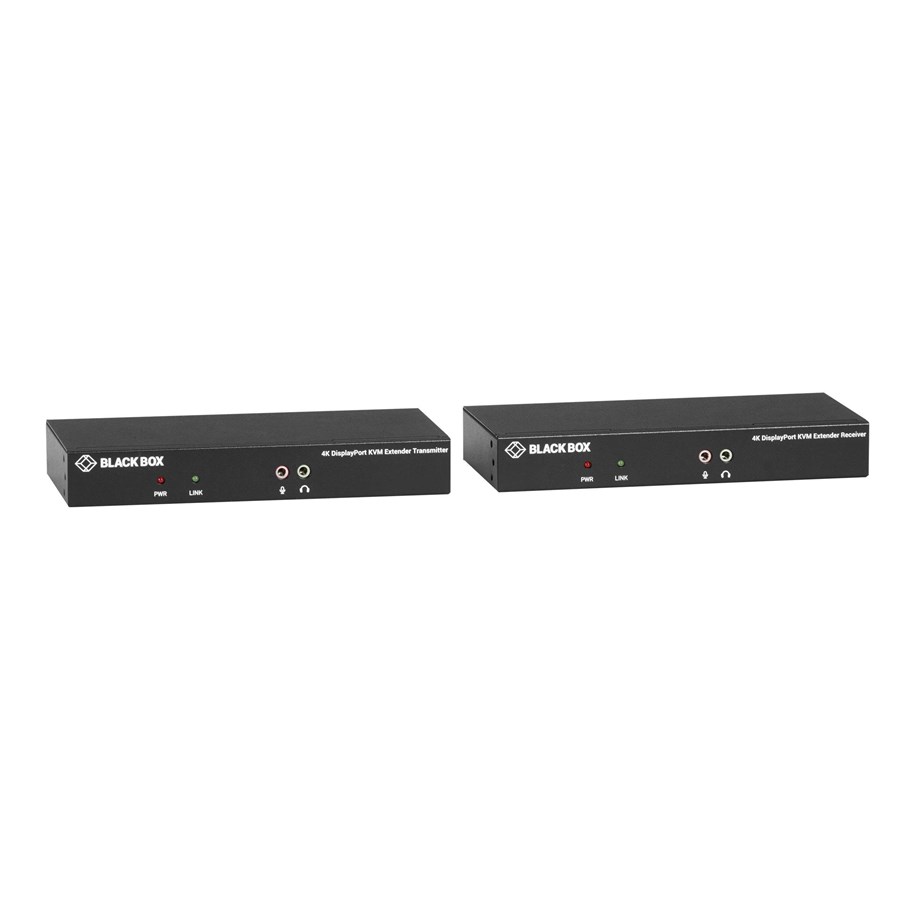

Black Box KVX Series KVM Extender over CATx - 4K Single-Head DisplayPort USB 2.0 Hub Serial Audio Local Video
4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video, Lähetin ja vastaanotin, KVM / audio / sarjaliitäntä / USB laajennin, USB, jopa 100 m, 1U, TAA-yhdenmukainen
1 202,85 €
958,45 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tilaustuote, toimitusaikaa ei voida ilmoittaa
Laturi sisältyy hintaan
Extend KVM signals up to 100m over CATx cable. The KVX Single Head DisplayPort KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX is TAA compliant and backed by free lifetime technical support. KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers.
Valmistaja
Tuotenumero
2908024
Malli
KVXLCDP-100
Ean
822088142584
Valmistajan kotisivuille
Malli
Lähetin & vastaanotin
Yhteysteknologia
Langallinen
Suurin siirtoetäisyys
100 m
Tuetut kaapelityypit
Cat6
Telineasennus
Kyllä
Digitaalinen enimmäistarkkuus
3840 x 2160 pikseliä
Tuetut resoluutiot
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Tuotteen väri
Musta
Materiaali
Metalli
Helposti asennettava
Kyllä
LED-merkkivalot
Linkki, Teho
Lähettimen videoportin tyyppi
DisplayPort
Lähettimen paikallinen videoportti
Kyllä
Lähettimen paikallisen videoportin tyyppi
DisplayPort
RJ-45 porttien määrä (lähetin)
1
Vastaanottimen paikallisen videoportin tyyppi
DisplayPort
RJ-45 porttien määrä (vastaanotin)
1
USB-portin tyyppi
USB A-tyyppi
USB 2.0 -porttien määrä
4
RS-232-portit
1
RJ-45 porttien määrä
1
RJ-11-porttien määrä
0
PC-ääni sisään
Kyllä
PC-ääni ulos
Kyllä
AC-adapterin lähtöjännite
5 V
AC-adapterin antovirta
2 A
Lähettimen leveys
8,3 cm
Lähettimen syvyys
18 cm
Lähettimen korkeus
2,1 cm
Lähettimen paino
372 g
Vastaanottimen leveys
8,3 cm
Vastaanottimen syvyys
18 cm
Vastaanottimen korkeus
2,1 cm
Vastaanottimen paino
378 g
Virtalähde mukana
Kyllä
Sisältää johdot
Ääni (3ˌ5 mm), DisplayPort, USB-tyyppi A - USB-tyyppi B
Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-20 - 60 °C
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84733080
Ominaisuudet
Malli
Lähetin & vastaanotin
Yhteysteknologia
Langallinen
Suurin siirtoetäisyys
100 m
Tuetut kaapelityypit
Cat6
Telineasennus
Kyllä
Digitaalinen enimmäistarkkuus
3840 x 2160 pikseliä
Tuetut resoluutiot
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Tuotteen väri
Musta
Materiaali
Metalli
Helposti asennettava
Kyllä
LED-merkkivalot
Linkki, Teho
Lähetin
Lähettimen videoportin tyyppi
DisplayPort
Lähettimen paikallinen videoportti
Kyllä
Lähettimen paikallisen videoportin tyyppi
DisplayPort
RJ-45 porttien määrä (lähetin)
1
Vastaanottaja
Vastaanottimen paikallisen videoportin tyyppi
DisplayPort
RJ-45 porttien määrä (vastaanotin)
1
Liitettävyys
USB-portin tyyppi
USB A-tyyppi
USB 2.0 -porttien määrä
4
RS-232-portit
1
RJ-45 porttien määrä
1
RJ-11-porttien määrä
0
PC-ääni sisään
Kyllä
PC-ääni ulos
Kyllä
Virranhallinta
AC-adapterin lähtöjännite
5 V
AC-adapterin antovirta
2 A
Paino ja mitat
Lähettimen leveys
8,3 cm
Lähettimen syvyys
18 cm
Lähettimen korkeus
2,1 cm
Lähettimen paino
372 g
Vastaanottimen leveys
8,3 cm
Vastaanottimen syvyys
18 cm
Vastaanottimen korkeus
2,1 cm
Vastaanottimen paino
378 g
Pakkauksen sisältö
Virtalähde mukana
Kyllä
Sisältää johdot
Ääni (3ˌ5 mm), DisplayPort, USB-tyyppi A - USB-tyyppi B
Ympäristöolosuhteet
Käyttölämpötila (T-T)
0 - 50 °C
Varastointilämpötila
-20 - 60 °C
Logistiikkatiedot
Harmonoidun järjestelmän nimikkeistökoodi (HS)
84733080
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
