Tuotenumero: 2436089

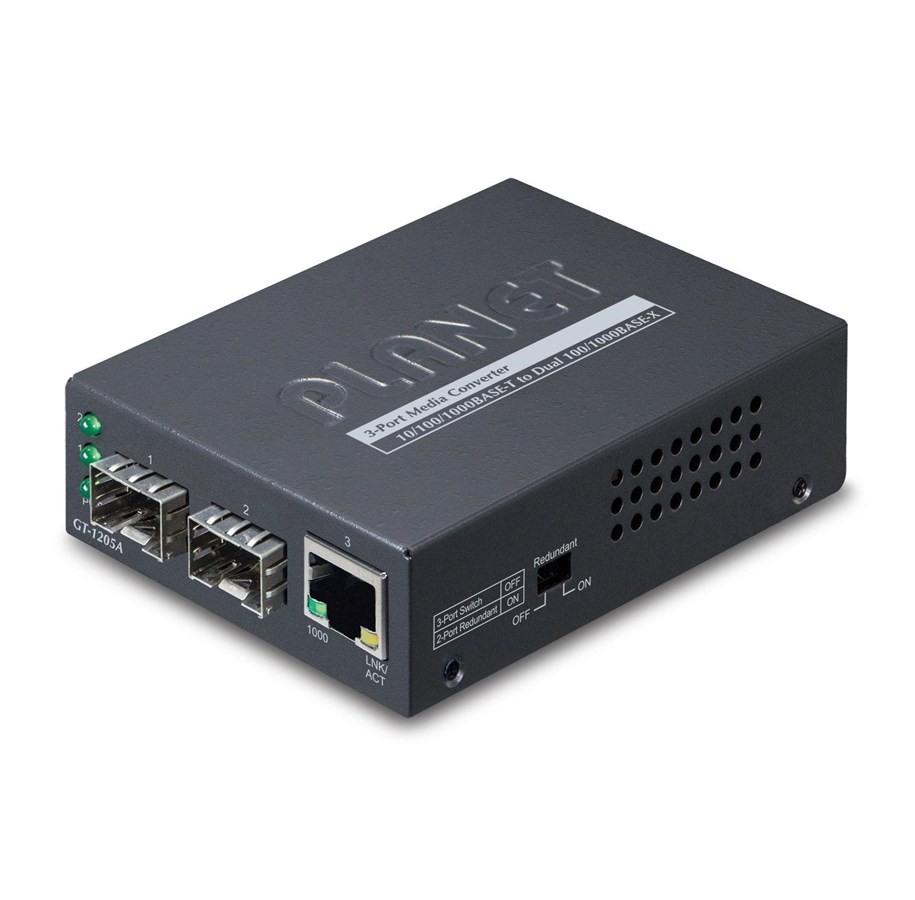

PLANET GT-1205A Media Converter 10/100/1000BASE-T to Dual 100/1000BASE-X SFP
Valokuitu-mediamuunnin, Ethernet, Fast Ethernet, Gigabit Ethernet, 10Base-T, 100Base-TX, 1000Base-T, 3 porttia, RJ-45 / SFP (mini-GBIC)
139,81 €
111,40 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 4-7 arkipäivää toimitukseen
The GT-1205A Gigabit SFP media converter provides 1 TP and dual SFP ports to support conversion between 10/100/1000 Base-T and 1000Base-X network. With the two 1000Base-SX / LX SFP ports, the GT-1205A provides high reliability and flexibility to extend the media transmission distance on the 1000Base-SX / LX SFP transceiver modules. It allows the two types of segment to connect easily, efficiently and inexpensively.
The GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET media converter chassis, MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-port switch mode, they work in high performance store and forward mechanism, and prevent packet loss with IEEE 802.3x flow control (full-duplex) and back pressure (half-duplex) function.
The GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET media converter chassis, MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-port switch mode, they work in high performance store and forward mechanism, and prevent packet loss with IEEE 802.3x flow control (full-duplex) and back pressure (half-duplex) function.
Valmistaja
Tuotenumero
2436089
Malli
GT-1205A
Ean
4711213686672
Valmistajan kotisivuille
Tuotekuvaus
PLANET GT-1205A - valokuitu-mediamuunnin - 10Mb LAN, 100Mb LAN, 1GbE
Laitteen tyyppi
Valokuitu-mediamuunnin - RJ-45 / SFP (mini-GBIC)
Porttien lukumäärä
3
Koko tai muoto
Ulkoinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtonopeus
1 Gbit/s
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, 1GbE
Ulkomitat (PxSxK)
9.4 cm x 7 cm x 2.6 cm
Paino
191 g
Yleistä
Laitteen tyyppi
Valokuitu-mediamuunnin
Koko tai muoto
Ulkoinen
Verkkoyhteydet
Porttien lukumäärä
3
Liitettävyystekniikka
Langallinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, 1GbE
Tiedonsiirtonopeus
1 Gbit/s
Tilan ilmaisimet
Portin lähetysnopeus, linkki/toiminta
Ominaisuudet
Layer 2 -kytkennät, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, DIN-tankoon asennettava
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Laajennus / Kytkeytyvyys
Liitännät
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x - SFP (mini-GBIC)
2 x - SFP (mini-GBIC)
Virransyöttö
Virtalähde
Ulkoinen virtasovitin
Virran kulutus (toiminnassa)
5.4 watti(a)
Mitat & paino
Leveys
9.4 cm
Syvyys
7 cm
Korkeus
2.6 cm
Paino
191 g
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
