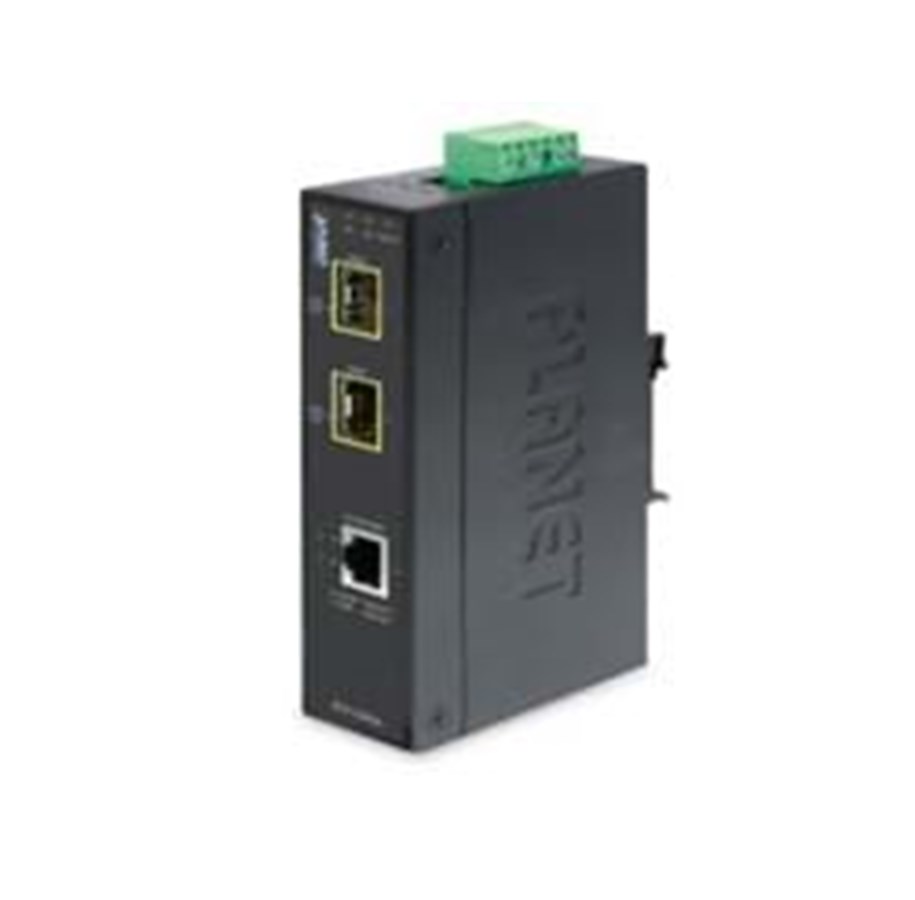

PLANET IGT-1205AT

Valokuitu-mediamuunnin, Gigabit Ethernet, 10Base-T, 100Base-TX, 1000Base-T, RJ-45 / SFP (mini-GBIC)

Tuotenumero: 2554166
Tuotetta ei ole saatavilla tällä hetkellä
Katso vastaavia tuotteita

The IGT-1205AT from Planet Technology is an industrial Gigabit Media Converter that offers non-blocking wire-speed performance. This unit permits high versatility for the extension of Gigabit Ethernet in demanding industrial environments. The unit features a single 10/100/1000 Base-TX RJ-45 copper and two 100/1000 Base-XX SFP fiber optic interfaces. In addition, it is housed in a durable IP30 rugged strong case that features redundant power system. The IGT-1205AT is ideal for those seeking to deploy a surveillance system and enabling enhanced wireless service in environments with harsh conditions, ranging in temperatures -40 to 75 degrees C. The two SFP slots on the unit are compatible with 100 Base-FX or 1000 Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The unit's fiber optic uplink ensures that the throughput to all nodes and the Gigabit Ethernet distance has the ability to be extended to 550 meters with Multi-Mode fiber cable and up to 10/20/30/40/50/70/120 kilometers with Single-Mode fiber cable. The Fast Ethernet distance also can be simply extended to 2 km with Multi-Mode fiber cable up to 20/40/60 kilometers. These units are ideal for applications data or distribution centers.

Valmistaja
Tuotenumero
2554166
Malli
IGT-1205AT
Ean
4711213689529
Valmistajan kotisivuille
Tuotekuvaus
PLANET IGT-1205AT - valokuitu-mediamuunnin - 10Mb LAN, 100Mb LAN, GigE
Laitteen tyyppi
Valokuitu-mediamuunnin - RJ-45 / SFP (mini-GBIC)
Koko tai muoto
Ulkoinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtonopeus
1 Gbit/s
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, GigE
Virransyöttö
AC 24 V / DC 12 - 48 V
Ulkomitat (PxSxK)
13.5 cm x 8.7 cm x 3.2 cm
Paino
505 g

Yleistä

Laitteen tyyppi
Valokuitu-mediamuunnin
Koko tai muoto
Ulkoinen

Verkkoyhteydet

Liitettävyystekniikka
Langallinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, GigE
Tiedonsiirtonopeus
1 Gbit/s
MAC osoitetaulukon koko (Address Table Size)
1000 syöttöä
Tilan ilmaisimet
Teho, järjestelmä, linkki/toiminta
Ominaisuudet
Automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), vuorosuuntainen toiminto, kaksisuuntainen toiminto, seinäasennettava, Jumbo Frames-tuki, DIN-tankoon asennettava, sisäinen DIP-kytkin, 6KV ESD Protector
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

Laajennus / Kytkeytyvyys

Liitännät
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x Ethernet 1000Base-X - SFP

Muuta

Yhteensopivuusstandardit
IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30

Virransyöttö

Virtalähde
Ulkoinen virtasovitin
Vaadittava jännite
AC 24 V / DC 12 - 48 V
Virran kulutus (toiminnassa)
4.8 watti(a)

Mitat & paino

Leveys
13.5 cm
Syvyys
8.7 cm
Korkeus
3.2 cm
Paino
505 g
