Tuotenumero: 2514300

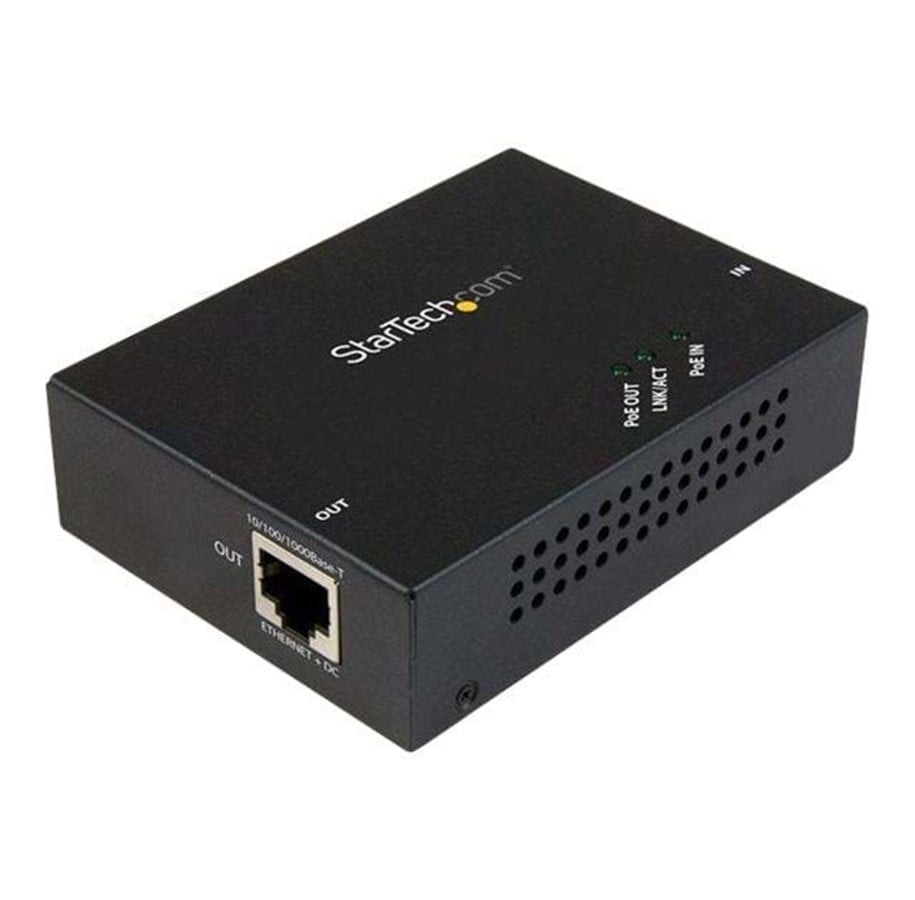

StarTech.com Gigabit PoE+ -jatkojohto

100m (330ft), Toistin, Gigabit Ethernet, 10Base-T, 100Base-TX, 1000Base-T, jopa 100 m

173,59 € 138,32 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 6-9 arkipäivää toimitukseen

Scale your Power over Ethernet connection by 100m, or daisy chain up to four extenders for longer distance. This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com POEINJ1G PoE+ injector (POEINJ1G) or IES81000POE PoE+ switch (IES81000POE).
Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

Valmistaja
Tuotenumero
2514300
Malli
POEEXT1GAT
Ean
0065030860895
Valmistajan kotisivuille
Tuotekuvaus
Startech 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender (POEEXT1GAT) - toistin - 10Mb LAN, 100Mb LAN, 1GbE
Laitteen tyyppi
Toistin
Koko tai muoto
Ulkoinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, 1GbE
Enimmäissiirtoetäisyys
100 m
Power Over Ethernet (PoE)
PoE+
Ulkomitat (PxSxK)
9.4 cm x 7 cm x 2.6 cm
Paino
197 g
Suunniteltu malleihin
P/N: ST12MHDLANU

Yleistä

Laitteen tyyppi
Toistin
Koko tai muoto
Ulkoinen
Väri
Musta

Verkkoyhteydet

Liitettävyystekniikka
Langallinen
Kaapelointityyppi
10Base-T, 100Base-TX, 1000Base-T
Tiedonsiirtoprotokolla
10Mb LAN, 100Mb LAN, 1GbE
Enimmäissiirtoetäisyys
100 m
Ominaisuudet
Vuonhallinta, täysi kaksisuuntaisuuden tuki, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), laittaa muistiin ja välittää edelleen (store and forward), 2KV ESD Protector
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at

Laajennus / Kytkeytyvyys

Liitännät
1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45
1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45

Muuta

Keskimääräinen vikaväli (MTBF)
50,000 tuntia
Yhteensopivuusstandardit
EN 61000-4-2, EN 61000-4-5, FCC, RoHS

Virransyöttö

Power Over Ethernet (PoE)
PoE+
Virran kulutus (toiminnassa)
3.2 watti(a)

Mitat & paino

Leveys
9.4 cm
Syvyys
7 cm
Korkeus
2.6 cm
Paino
197 g

Ympäristötiedot

Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
5 - 95 % (ei tiivistetty)

Yhteensopivuustiedot

Suunniteltu malleihin
P/N: ST12MHDLANU
