Tuotenumero: 2471180

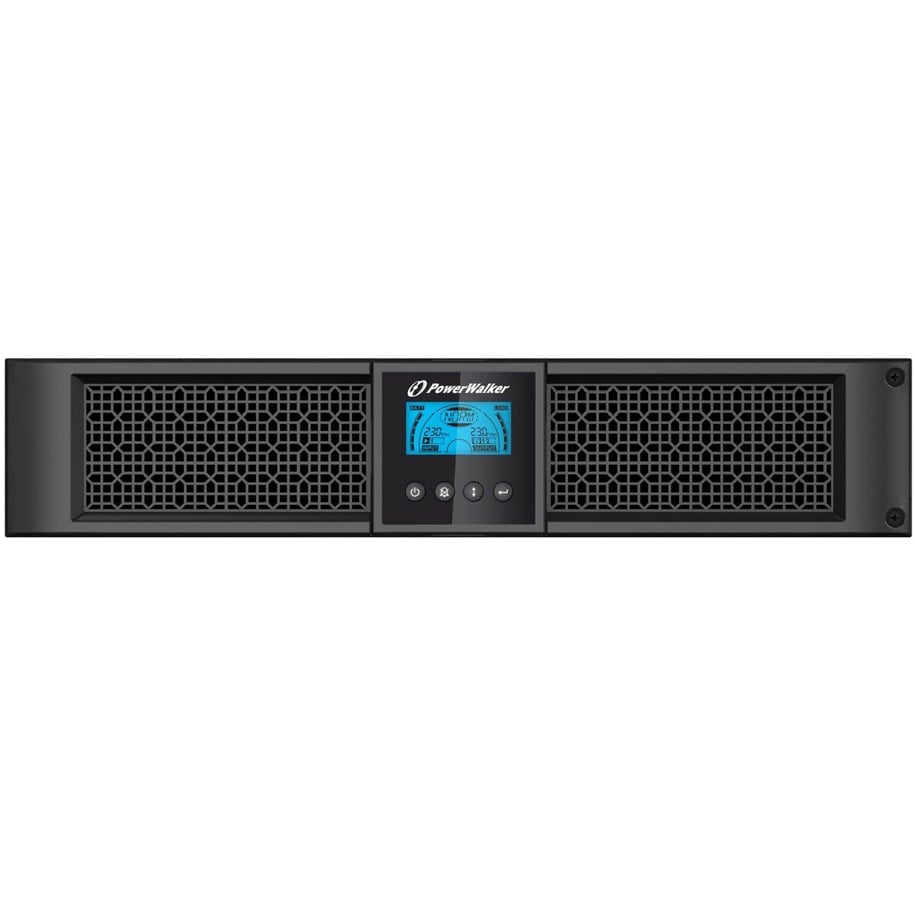

BlueWalker 10120056 - PowerWalker VI ERT HID - 1000VA/900W - Line Interactive UPS
PowerWalker VI ERT HID 1000VA/900W UPS kanssa AVR Lähtöliitännät
- Määrittelyt
- Lähtötehon kapasiteetti (VA): 1000VA
- Lähtöteho (W): 900W
- Topologia: Line Interactive
- Aallonmuoto: Pure Sine Wave
- Lähtöliitännät: 4 x IEC C13
- Sisääntuloliitännät: IEC C14
- Highlights
- AVR
- LCD Display
- Rack Mount
351,36 €
279,97 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 6-9 arkipäivää toimitukseen
This line-interactive series is compact and pure sine wave UPS and it is designed for essential applications and environment, such as desktops, servers, workstations, and other networking equipments. The series protects your sensitive electronic equipments against power problems including power sags, spike, brownouts, line noise, under-voltage, overvoltage and blackouts.
The series is convertible to rack and tower forms. The front panel of the UPS includes LCD display and four control buttons that allow users to monitor, configure and control the units. On LCD, it also includes a LCD graphical bar, two status indications and four alarm indications. A control button from the front panel allows users to silence off the AC fail alarm and initiate the UPS self test sequence as well. The UPS case is made of metal. This series is powered from the AC mains and supply AC outputs via receptacles on the rear panel. Communication and control of UPS is available through serial or USB ports located on the rear panel. The serial port will support communications directly with a server and offer dry-contacts.
The series is convertible to rack and tower forms. The front panel of the UPS includes LCD display and four control buttons that allow users to monitor, configure and control the units. On LCD, it also includes a LCD graphical bar, two status indications and four alarm indications. A control button from the front panel allows users to silence off the AC fail alarm and initiate the UPS self test sequence as well. The UPS case is made of metal. This series is powered from the AC mains and supply AC outputs via receptacles on the rear panel. Communication and control of UPS is available through serial or USB ports located on the rear panel. The serial port will support communications directly with a server and offer dry-contacts.
Valmistaja
Tuotenumero
2471180
Malli
10120056
Ean
4260074975291
Valmistajan kotisivuille
Tuotekuvaus
PowerWalker VI 1000E/RT LCD - UPS - 900 watti(a) - 1000 VA
Laitteen tyyppi
UPS - ulkoinen
Telineen koko
19" - 2U
Paino
15 kg
Tulojännite
Vaihtovirta 220/230/240 V
Lähtöjännite
Vaihtovirta 220/230/240 V ± 5%
Virtakapasiteetti
900 watti(a) / 1000 VA
Tuloliittimet
1 x IEC 60320 C14 -virtaliitin
Lähtöliittimet
4 x power IEC 60320 C13
Akku / paristo
- 9 A/h
Akkumäärä
2
Akun kesto (jopa)
3 min täydellä latauksella
Verkkoyhteydet
RS-232, USB
Sisältyvät lisävarusteet
Tornialusta, telineen asennuspidikkeet
Väri
Musta
Ulkomitat (PxSxK)
43.8 cm x 43.6 cm x 8.65 cm
Yleistä
Laitteen tyyppi
UPS - ulkoinen
Korkeus (Telineyksikköä)
2U
Telineen koko
19"
Väri
Musta
Virtalähde
UPS tekniikka
Interaktiivinen linja
Tulojännite
Vaihtovirta 220/230/240 V
Sallittu tulojännitealue
Vaihtovirta 161 - 276 V
Toimitettu frekvenssi
50/60 Hz
Vaadittu taajuus
50/60 Hz
Tuloliittimet
1 x IEC 60320 C14 -virtaliitin
Tehon lähtöliittimien yksityiskohdat
4 x power IEC 60320 C13
Lähtöjännite
Vaihtovirta 220/230/240 V ± 5% - 50/60 Hz
Virtakapasiteetti
900 watti(a) / 1000 VA
Datalinjan syöksyjännitesuojaus
Verkko/puhelinlinja - RJ-45/RJ-11 - 1 tulolinja/1 lähtölinja
Output Waveform
Siniaalto
Akku / paristo
Määrä
2
Tuettu jännite
12 V
Kapasiteetti
9 A/h
Latausaika
8 tuntia
Verkkoyhteydet
Etähallinta liitäntä
RS-232, USB
Laajennus / Kytkeytyvyys
Liitännät
1 x hallinta - 4 pin USB Type B
1 x hallinta - 9-nastainen D-Sub (DB-9)
1 x EPO (emergency power off)
1 x hallinta - 9-nastainen D-Sub (DB-9)
1 x EPO (emergency power off)
Laajennuspaikat
1 (yhteensä)/ 1 (vapaa) x Laajennuspaikka
Muuta
Sisältyvät lisävarusteet
Tornialusta, telineen asennuspidikkeet
Sisältyvät kaapelit
USB-kaapeli - ulkoinen
3 x virtajohto - ulkoinen
3 x virtajohto - ulkoinen
Ominaisuudet
Automaattinen tuulettimen nopeudenhallinta, äänimerkki, virran hätäkatkaisu, Nestekidenäyttö, Automaattinen jännitesäätö (AVR), ylikuormitussuoja
Ohjelmisto / Järjestelmävaatimukset
Mukana tulevat ohjelmistot
Winpower
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
40 °C
Toimintakosteus
20 - 80 % (ei tiivistetty)
Mitat & paino
Leveys
43.8 cm
Syvyys
43.6 cm
Korkeus
8.65 cm
Paino
15 kg
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
