Tuotenumero: 2497723

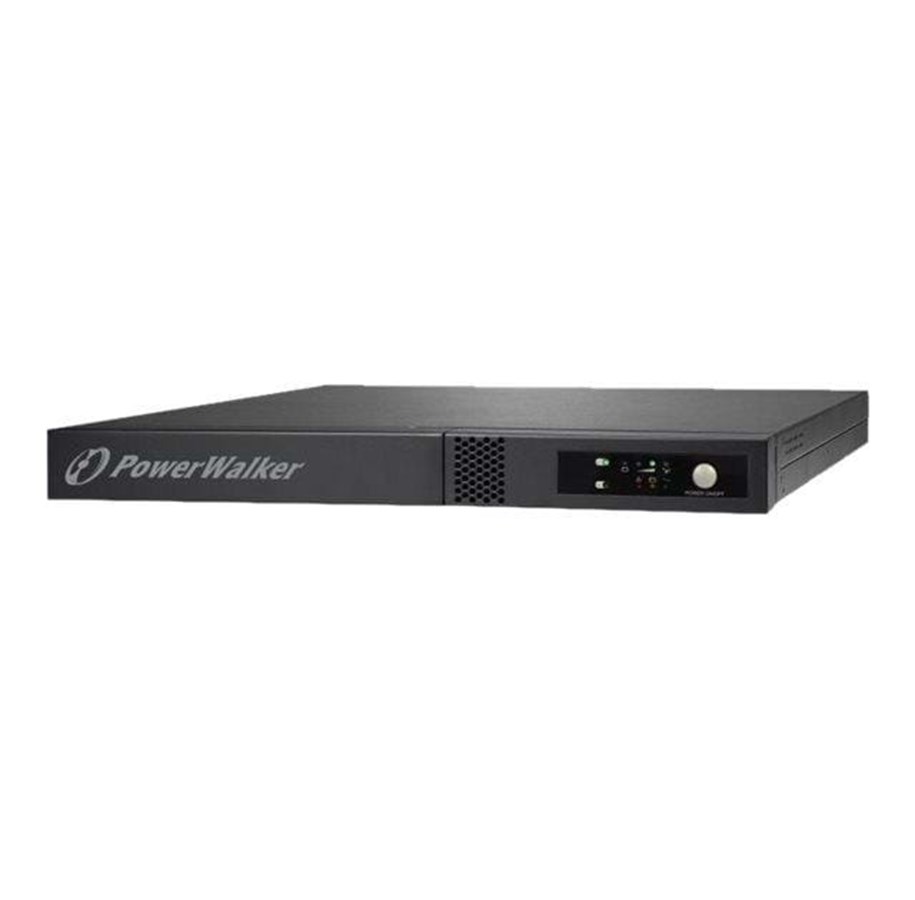

BlueWalker PowerWalker VFI 1000R/1U
UPS (telineasennettava), 800 watt, 1000 VA 7 A/h, RS-232, USB, lähtöliittimet: 3, 1U, 19", musta
554,68 €
441,98 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 5-8 arkipäivää toimitukseen
A Online UPS always provide clean power and have a protection against all standard power problems in a network.
A Online UPS is build up with double- conversation technology. First, incoming AC power is converted into DC power and stored in a buffer. In the second step the buffered DC power is converted to AC power and made available for the loads. Doing so the UPS loads are isolated from incoming AC power and fed by power generated by the UPS. The result is an always clean and stable output power.
Another advantage of this technology is the fact that there is no transfer time in case of a failure. Furthermore a Online UPS provides the most reliable voltage regulation which is typically within 2-3 percent of the standard voltage wave form. Online UPS offers USB port (RS-232) to connect to a multitude of operating systems for maintenance, monitoring voltage, power and battery status.
A Online UPS is build up with double- conversation technology. First, incoming AC power is converted into DC power and stored in a buffer. In the second step the buffered DC power is converted to AC power and made available for the loads. Doing so the UPS loads are isolated from incoming AC power and fed by power generated by the UPS. The result is an always clean and stable output power.
Another advantage of this technology is the fact that there is no transfer time in case of a failure. Furthermore a Online UPS provides the most reliable voltage regulation which is typically within 2-3 percent of the standard voltage wave form. Online UPS offers USB port (RS-232) to connect to a multitude of operating systems for maintenance, monitoring voltage, power and battery status.
Valmistaja
Tuotenumero
2497723
Malli
10120195
Ean
4260074977165
Valmistajan kotisivuille
Tuotekuvaus
PowerWalker VFI 1000R/1U - UPS - 800 watti(a) - 1000 VA
Laitteen tyyppi
UPS - telineasennettava
Telineen koko
19" - 1U
Paino
12.6 kg
Lähtöjännite
Vaihtovirta 220/230/240 V ± 1%
Virtakapasiteetti
800 watti(a) / 1000 VA
Lähtöliittimet
3 x power IEC 60320 C13
Akku / paristo
- 7 A/h
Akkumäärä
4
Verkkoyhteydet
RS-232, USB
Väri
Musta
Ulkomitat (PxSxK)
47.7 cm x 43.8 cm x 4.4 cm
Yleistä
Laitteen tyyppi
UPS - telineasennettava
Korkeus (Telineyksikköä)
1U
Telineen koko
19"
Väri
Musta
Virtalähde
UPS tekniikka
On-line
Sallittu tulojännitealue
AC 110 - 300 V
Toimitettu frekvenssi
47 - 53 Hz
Vaadittu taajuus
50/60 Hz
Tehon lähtöliittimien yksityiskohdat
3 x power IEC 60320 C13
Lähtöjännite
Vaihtovirta 220/230/240 V ± 1% - 47 - 53 Hz
Virtakapasiteetti
800 watti(a) / 1000 VA
Output Waveform
Siniaalto
Akku / paristo
Määrä
4
Tuettu jännite
6 V
Kapasiteetti
7 A/h
Latausaika
4 tuntia
Siirtoaika
4 ms
Verkkoyhteydet
Etähallinta liitäntä
RS-232, USB
Laajennus / Kytkeytyvyys
Liitännät
1 x hallinta (RS-232) - 9-nastainen D-Sub (DB-9)
1 x hallinta (USB) - 4 pin USB Type B
1 x hallinta (USB) - 4 pin USB Type B
Laajennuspaikat
1 (yhteensä)/ 1 (vapaa) x Intelligent Slot
Muuta
Sisältyvät kaapelit
USB-kaapeli - ulkoinen
2 x virtajohto - ulkoinen
2 x virtajohto - ulkoinen
Telineasennuspakkaus
Sisältää
Ominaisuudet
Äänimerkki, virran hätäkatkaisu, LED-osoittimet, ylikuormitussuoja
Ohjelmisto / Järjestelmävaatimukset
Mukana tulevat ohjelmistot
ViewPower
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
40 °C
Toimintakosteus
20 - 90 % (ei kondensoitu)
Meluntuotto
50 dB
Mitat & paino
Leveys
47.7 cm
Syvyys
43.8 cm
Korkeus
4.4 cm
Paino
12.6 kg
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
