Tuotenumero: 3224871

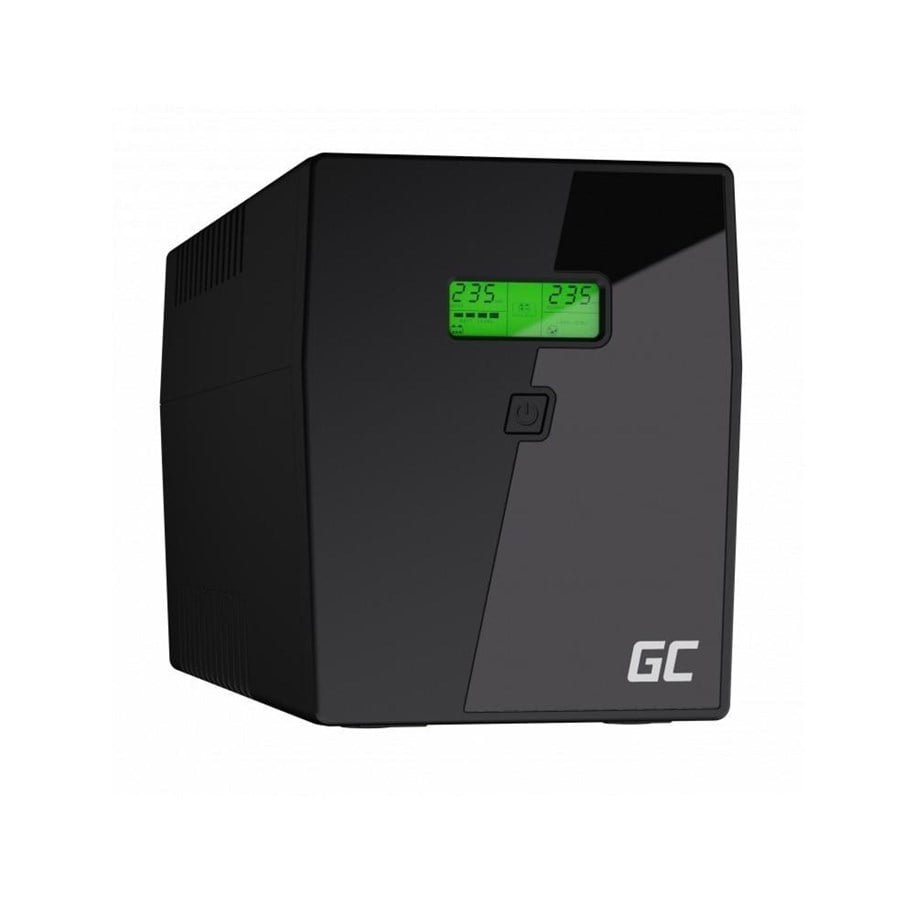

Green Cell PowerProof UPS04 - 1500VA/900W | Line-Interactive | 24V 2x9Ah
Green Cell GC PowerProof UPS04 line-interactive UPS, jossa on akulla simuloitu siniaalto-ulostulo, LCD-näyttö ja boost/buck AVR -jännitteenvakautus. Suuremman kapasiteetin kahden akun laite, joka sopii PC-tietokoneille, NAS-laitteille ja pieniin palvelinkokoonpanoihin.
- Topologia: Line-interactive
- Kapasiteetti: 1500VA / 900W
- Nimellinen tulojännite: 110/120 tai 220/230/240 Vac
- Käyttöjännitealue: 81–145 Vac / 162–290 Vac
- Käyttötaajuus: 50/60Hz (automaattinen tunnistus)
- Ulostuloaaltomuoto (akkutila): Simuloitu siniaalto
- AC-jännitteen säätö (akkutila): ±10%
- Siirtoaika: Tyypillisesti 2–6ms, enintään 10ms
- Akku: 24Vdc, 2x 12V/9Ah
- Latausaika: 6–8 tuntia 90% kapasiteettiin
- Näyttö: LCD (AC/akkutila, kuormitustaso, akun taso, tulo-/lähtöjännite, ylikuormitus, vika, akun alhainen varaus)
- Suojaus: Oikosulku, ylikuormitus, ylilataus, ylipurkaus
- Tiedonsiirto: USB tai RS232 (Windows, Linux, Unix, macOS)
- Pistorasiat: 2x Schuko, 2x IEC C13
- Melutaso: Alle 55dB
- Mitat (S x L x K): 380 x 158 x 198 mm
- Paino: Noin 10.1 kg
- Käyttökosteus: 0–90% RH @ 0–40°C, ei-kondensoiva
- Sertifioinnit: IEC/EN62040-1, IEC/EN60950-1, IEC/EN62040-2, IEC/EN62040-3, IEC 61000-4-2/3/4/5/6/8
Sisäänrakennettu jäähdytystuuletin tukee jatkuvaa kuormitusta tällä suuremmalla kapasiteetilla, ja kaksi 12V/9Ah akkua tarjoavat pidennetyn varakäyttöajan. IEC C13 -pistorasiat Schuko-pistorasioiden rinnalla sopivat palvelin- ja verkkotyyppisille laitteille.
Varastossa
134,90 €
107,49 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
3 kpl
Varastossa - 2-5 arkipäivän toimitus
What is a UPS?
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
Valmistaja
Tuotenumero
3224871
Malli
UPS04
Ean
5902701419646
Valmistajan kotisivuille
Tuotekuvaus
Green Cell UPS Micropower 1500VA - UPS - 900 watti(a) - 1500 VA
Laitteen tyyppi
UPS - ulkoinen
Paino
11.1 kg
Tulojännite
Vaihtovirta 220/230/240 V
Lähtöjännite
Vaihtovirta 230 V
Virtakapasiteetti
900 watti(a) / 1500 VA
Lähtöliittimet
4 x power CEE 7/7
Akku / paristo
- 9 A/h
Akkumäärä
2
Verkkoyhteydet
USB, Ethernet
Ulkomitat (PxSxK)
15.8 cm x 38 cm x 19.8 cm
Yleistä
Laitteen tyyppi
UPS - ulkoinen
Virtalähde
UPS tekniikka
Interaktiivinen linja
Tulojännite
Vaihtovirta 220/230/240 V
Toimitettu frekvenssi
50/60 Hz
Vaadittu taajuus
50/60 Hz
Tehon lähtöliittimien yksityiskohdat
4 x power CEE 7/7
Lähtöjännite
Vaihtovirta 230 V 50/60 Hz
Virtakapasiteetti
900 watti(a) / 1500 VA
Datalinjan syöksyjännitesuojaus
Verkko - RJ-45 - 1 tulolinja/1 lähtölinja
Output Waveform
Siniaalto
Ylijännitteen vaimennus
Kyllä
Akku / paristo
Määrä
2
Tuettu jännite
12 V
Kapasiteetti
9 A/h
Siirtoaika
6 ms
Verkkoyhteydet
Etähallinta liitäntä
USB, Ethernet
Laajennus / Kytkeytyvyys
Liitännät
1 x hallinta (USB) - 4 pin USB Type B
Muuta
Ominaisuudet
Automaattinen jännitesäätö (AVR)
Mitat & paino
Leveys
15.8 cm
Syvyys
38 cm
Korkeus
19.8 cm
Paino
11.1 kg
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
