AXAGON Combo 6-in-1 USB-C 10 Gbps HUB USB hub - 6 satamat - USB 3.2 - hopea

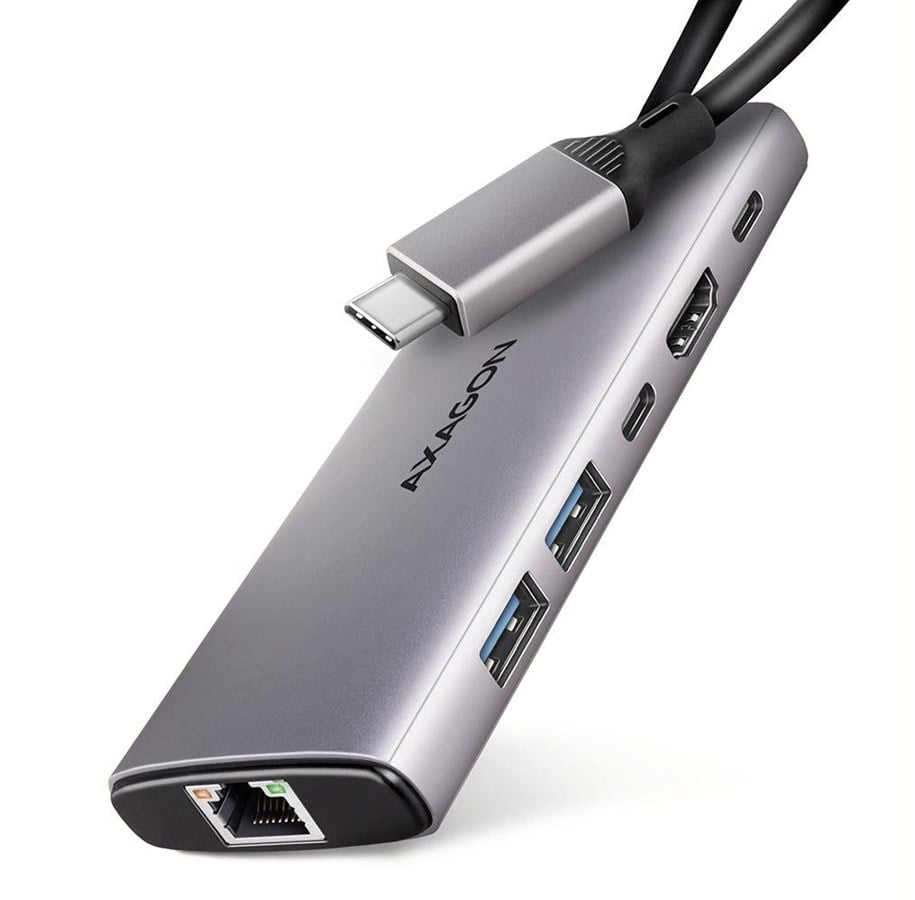

The multi-port USB-C 10 Gbit/s AXAGON HMC-6G2L hub 6-in-1 expands your laptop, computer or phone with six ports. You can easily and quickly connect a monitor, three USB devices and a Gigabit Ethernet network to the computer at the same time via the double-sided USB-C connector. You also have the possibility to supply the laptop using Power Delivery technology simultaneously. The port replicator provides a simple and compact 6-in-1 docking station not only for Windows laptops but also for Apple laptops such as MacBook Air or MacBook Pro.

The USB hub offers three USB 10 Gbit/s outputs: two with standard USB-A and one with a USB-C data connector. With the advanced USB 3.2 Gen 2 standard, you can connect high-speed devices such as NVMe M.2 external drives to all outputs at up to twice the speed of 10 Gbit/s compared to standard Gen 1 hubs with only 5 Gbit/s. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5 A/5 V current. You can easily charge e.g. Android smartphones, Apple iPhone, Apple iPad, etc.

Another USB-C (PD) connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100 W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.

HDMI output provides high-quality images up to 4K/60 Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120 Hz or Full HD/240 Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3/4 port.

Gigabit network card extends your computer with a fast and stable network connection, adds the missing RJ-45 network connector or another network card.

The compact and slim aluminium body not only looks great but also provides mechanical durability and passive cooling. The finely textured surface does not leave fingerprints.

You can use your current USB peripherals without purchasing new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub can also be connected to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.

Input (connection to laptop):

• USB 10 Gbit/s (USB 3.2 Gen 2), connector USB-C male
• Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4

Input (power supply):

• USB Power Delivery 3.0 100 W, USB-C female connector
• Charging of the notebook from the power adapter via USB-C hub
• PD power must be supported by both the laptop (phone) and the wall charger

USB outputs:

• 2× USB 10 Gbit/s port, USB-A female connector
• 1× USB 10 Gbit/s port, USB-C female connector
• USB-C hub can handle the connection of several external drives simultaneously
• Charging of mobile devices (including iPad) with a current of up to 1.5 A/5 V from the hub's USB-A and USB-C ports

Video output:

• 1× HDMI A port, HDMI A female connector
• 4K resolution 4096 × 2160 at up to 60 Hz
• 2K / WQHD resolution 2560 × 1440 at up to 120 Hz
• FHD resolution 1920 × 1080 at up to 240 Hz
• Support for the above maximum resolutions and frequencies requires connection to a computer with DisplayPort version 1.4
• For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or Thunderbolt 3/4. A suitable OS is also required
• HDR support (high dynamic range, 10-bit) – realistic reproduction of light and dark details
• HPD (Hot-Plug-Detect) support
• TMDS (Transition Minimized Differential Signalling) support
• Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection)
• Support for up to 2-channel LPCM audio
• Support for 2-channel audio sampling rate up to 192 kHz and up to 24-bit audio – depends on source and end device

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection
• Supported transmission rates: 10/100/1000 Mbit/s
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
• 10/100/1000 Mbit/s auto-detection
• Wake-on-LAN support

Other features:

• Possibility to connect your device while running thanks to Hot Plug support
• Full Plug and Play support
• Sleep mode support
• Power via USB bus – USB bus power or from PD wall charger
• Heavy-duty aluminium body for better hub cooling
• The high-quality shielded cable ensures high communication speed and minimal interference
• Dimensions 120 × 46 × 15 mm
• Weight 79 g (including cable)
• USB cable length 15 cm

Supported operating systems:

• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android
• Compatibility depends on the operating system and device manufacturer support
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on device support
• Graphics card drivers may affect the correct operation of the product; we recommend downloading the latest version of drivers

Package contains:

• USB-C hub with fixed 15 cm long cable
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA
• Packed in a cardboard box with a hanging hole
