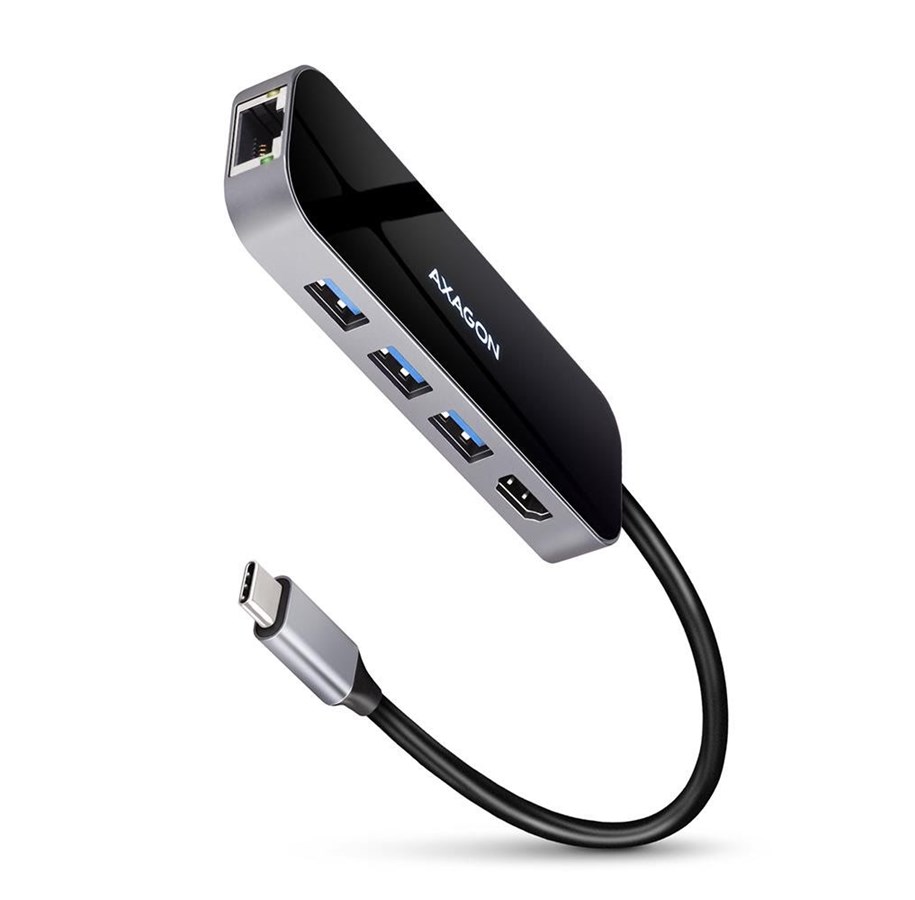

AXAGON SuperSpeed USB-C Hub USB hub - 6 satamat - USB 3.2 - Musta

Multiport USB-C 3.2 Gen 1 hub AXAGON HMC-6GL expands your laptop, computer, or phone with six ports. You can easily and quickly connect up to three USB devices, a Gigabit Ethernet network, and an HDMI display to your computer simultaneously via the double-sided USB-C connector. You also have the possibility to power your laptop using Power Delivery technology at the same time. The USB-C hub provides a simple and compact 6-in-1 docking station for notebooks such as the MacBook Pro.

The USB hub offers three USB outputs with standard USB-A connectors. The hub can also handle permanent connection of multiple external drives simultaneously, with transfer rates up to 5 Gbit/s thanks to the fast USB 3.2 Gen 1 interface. The hub will also charge phones and tablets with a current up to 1.5 A at 5 V, allowing you to charge Android smartphones, Apple iPhones, Apple iPads, and more.

The USB-C connector is dedicated to powering a laptop or mobile phone using Power Delivery 3.0 technology with power up to 100 W. Connect a USB-C Power Delivery charger to the hub and then connect the hub to the laptop. This saves one USB-C port. A laptop with Power Delivery charging support via its USB-C port and a suitable PD charger are required.

The HDMI output provides high-quality images up to 4K/30 Hz Ultra HD resolution and supports multi-channel audio transmission. Popular gaming resolutions such as WQHD 2560 × 1440 at 60 Hz and Full HD 1920 × 1080 at 60, 100, or 120 Hz are also supported. A DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3 port is necessary for proper video output function.

The Gigabit network card extends your computer with a fast network connection, adds a missing RJ-45 connector, or an additional network card. The LAN adapter is compatible with 10/100/1000 Mbit/s speeds and supports functions such as IPv4/IPv6, crossover detection and auto-correction, Wake-on-LAN, VLAN support, and advanced power management features.

The elegant aluminium body ensures mechanical strength and effective cooling. The glossy upper surface with a subtle backlit logo emphasises the hub’s premium appearance.

This port replicator is an ideal accessory for laptops without USB-A ports, network cards, or video outputs. You can use your existing USB peripherals without purchasing new ones. Thanks to Plug and Play and Hot Plug functions, connection of the hub is simple, without complicated installation. It is also possible to connect and disconnect peripherals while the computer is running. The hub is compatible with phones with a USB-C connector, allowing you to connect flash drives, keyboards, mice, displays, TVs, or projectors.

Input:

• 1× USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.
• Backward compatible with USB 3.1 Gen 1 / USB 3.0 / USB 2.0.
• Compatible with Thunderbolt 3.
• USB-C male connector on a fixed 20 cm cable.

USB outputs:

• 3× SuperSpeed USB ports, USB-A female connectors.
• 1× USB-C Power Delivery port (charging only), USB-C female connector.
• Supports transmission rates 5 Gbit/s / 480 Mbit/s / 12 Mbit/s / 1.5 Mbit/s (SuperSpeed / High / Full / Low speed).
• Total bandwidth is determined by the USB 3.2 Gen 1 interface (theoretical up to 5 Gbit/s).
• Can handle multiple external drives simultaneously.
• Charging mobile devices (including iPad) with up to 1.5 A per port. Total charging current reaches up to 2.1 A at 5 V (depending on the host computer USB port).

HDMI output:

• HDMI A (F) female connector.
• Maximum supported resolution 4K / 4096 × 2160 at 30 Hz.
• WQHD resolution 2560 × 1440 at 60 Hz max.
• Full HD resolution 1920 × 1080 at 60, 100, 120 Hz max.
• DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C or Thunderbolt 3 port required.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• Full HDCP 1.4 and 2.3 support.
• Up to 8-channel LPCM audio, compressed audio (AC-3, DTS), and HBR audio support.
• Sample rate up to 192 kHz and 24-bit audio – depends on source and target device.

RJ-45 Output:

• Gigabit Ethernet interface with RJ-45 connector.
• Supports 10/100/1000 Mbit/s and IEEE 802.3 standards.
• Auto-detection of 10/100/1000 Mbit/s.
• IPv4/IPv6 checksum offload.
• TCP Large Send Offload V1/V2, VLAN tagging, Energy Efficient Ethernet (IEEE 802.3az), Jumbo frame support.
• Full-duplex and half-duplex flow control.
• Auto MDI/MDIX, CRC, polarity/skew correction.
• Wake-on-LAN support.
• Advanced power management to reduce standby and disconnected cable losses.

Power Delivery:

• Power Delivery 3.0 support – device powered via USB-C hub.
• Maximum 100 W (20 V / 5 A).
• Requires notebook or phone with Power Delivery support and suitable PD charger.

Other features:

• Hot Plug support allows connection of devices while running.
• Full Plug and Play support.
• Standby mode support.
• Power via USB bus or PD wall charger.
• Heavy-duty aluminium body for improved cooling.
• Backlit logo indicates USB connection.
• High-quality shielded cable ensures fast communication and minimal interference.
• Dimensions: 110 × 35 × 13 mm.
• Weight: 60 g (including cable).
• USB cable length: 20 cm.

Supported OS:

• Microsoft Windows 10 / 11, Mac OS, Linux, Android, and Chrome OS. Compatibility depends on OS and device manufacturer support.
• Drivers included with supported operating systems; no additional installation required.
• DisplayPort Alternate Mode (DP Alt Mode) support depends on OS and device manufacturer.

Package contains:

• USB-C hub with fixed 20 cm cable.
• Multilingual guide (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA).
• Packed in a cardboard box with hanging hole.
