AXAGON Triple 4K Display SuperSpeed USB-C Hub USB hub - 11 porttia - USB 3.2 - Harmaa

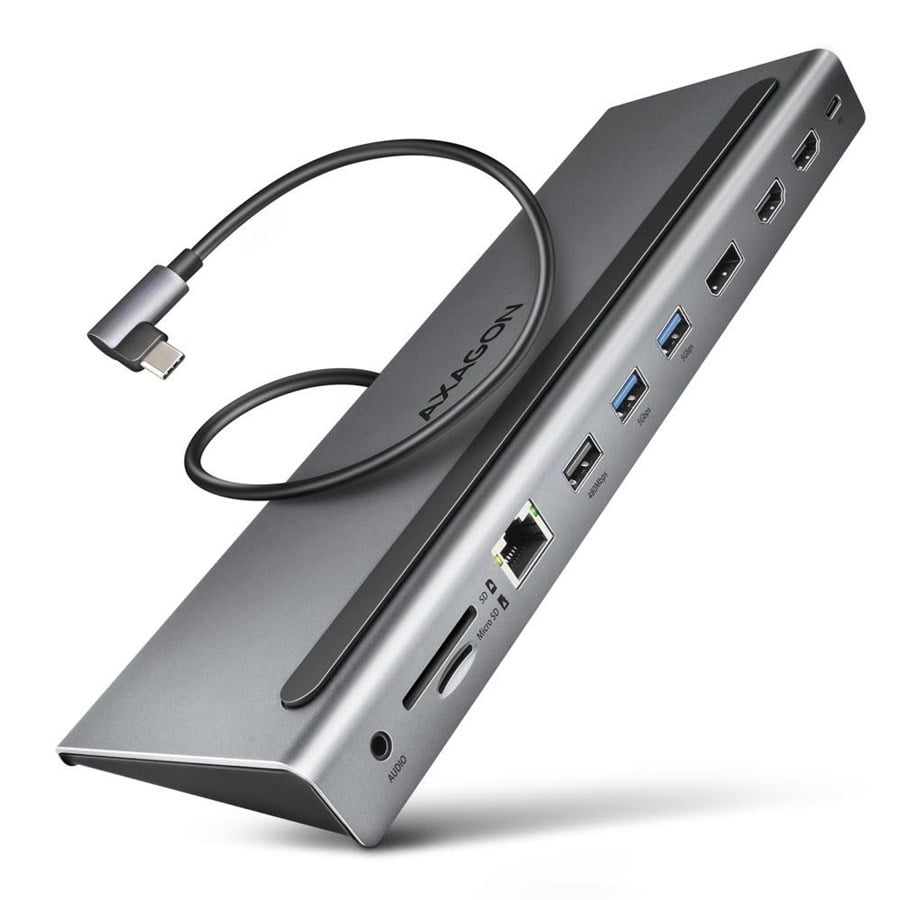

Multiport USB-C 5 Gbit/s TRIPLE 4K DISPLAY hub AXAGON HMC-4KX3 expands your laptop with nine ports and an SD/microSD memory card reader. You can easily and quickly connect up to three monitors, three USB devices, a Gigabit Ethernet network, headphones, and a card reader to your computer at the same time via the double-sided USB-C connector. You also have the possibility to supply power to your laptop using Power Delivery technology simultaneously. The USB-C hub provides a universal and powerful 11-in-1 docking station for modern laptops.

The USB hub offers three USB outputs with standard USB-A connectors. It can handle permanent connection of several external drives simultaneously, with transfer rates up to 5 Gbit/s thanks to the fast USB 3.2 Gen 1 interface. The hub also enables charging of phones and tablets with a current of up to 1.5 A at 5 V, allowing you to charge, for example, Android smartphones, Apple iPhones, or Apple iPads.

The USB-C connector is reserved solely for powering and simultaneous charging of laptops using Power Delivery 3.0 technology with up to 100 W. Connect a USB-C Power Delivery charger to the hub and then connect the hub to the laptop. This saves one USB-C port. A laptop with Power Delivery charging support via USB-C and a suitable PD charger are required.

Each of the three video outputs (2× HDMI + 1× DisplayPort) provides high-quality images up to 4K/60 Hz Ultra HD resolution. High refresh rates at popular gaming resolutions of 2K/144 Hz or Full HD/240 Hz are also supported. Even with three monitors connected simultaneously, the docking station can provide a resolution of up to 4K/30 Hz on each. HDR (high dynamic range) support allows a significantly expanded range of colours and contrast. A DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3/4 port is necessary for video output. Maximum supported resolutions and refresh rates require a computer with DisplayPort version 1.4.

The Gigabit network card extends your computer with a fast network connection and adds a missing RJ-45 network connector.

The card reader supports all current SD and microSD cards, including SDXC and microSDXC, with capacities up to 2 TB. High data transfer speed is ensured by the USB 3.2 Gen 1 interface. The card reader enables simultaneous use of both slots and direct copying between them.

The robust aluminium body ensures mechanical strength and effective cooling. The wedge-shaped hub can serve as a laptop stand for improved cooling and ergonomics. The included 40 cm USB-C cable with a curved connector can be almost entirely hidden under the laptop, contributing to a clean desk appearance. The cable is detachable and replaceable with a longer one if needed.

Thanks to Plug and Play and Hot Plug functions, connecting the hub is simple, and peripherals can be connected or disconnected while the computer is running.

Input:

• USB 5 Gbit/s (USB 3.2 Gen 1 / USB 3.0)
• Compatible with Thunderbolt 3/4
• Connection via reversible USB Type-C female connector

USB outputs:

• 2× USB 5 Gbit/s, USB-A female connector
• 1× USB 480 Mbit/s, USB-A female connector
• 1× Power Delivery port (power only), USB-C female connector
• Can handle several external drives simultaneously
• Charging of mobile devices (including iPad) up to 1.5 A from the USB-A ports

Video outputs:

• 2× HDMI, HDMI A female connector
• 1× DisplayPort, DisplayPort female connector

Video resolution:

One connected monitor in any video port:

• 4K 4096 × 2160 at up to 60 Hz *
• 2K/WQHD 2560 × 1440 at up to 144 Hz (Mac via DP up to 165 Hz) *
• FHD 1920 × 1080 at up to 240 Hz (Mac max. 144 Hz) *

Two simultaneously connected monitors: up to 4K/60 Hz on one monitor and 4K/30 Hz on the other *

Three simultaneously connected monitors: up to 4K/30 Hz on all monitors *

* Valid for connection to a computer with DisplayPort version 1.4

• DP Alt Mode enabled USB-C port or Thunderbolt 3/4 required
• HDR (10-bit support) for realistic light and dark details
• HPD (Hot-Plug-Detect) support
• TMDS support
• HDCP 1.4 and 2.3 support
• 2-channel audio up to 48 kHz, 24-bit depending on source device

Display mode support (Windows):

• Mirroring or expanding the primary monitor on up to three connected monitors
• Each monitor can display mirrored or extended surfaces independently

Display mode support (MacOS):

• Mirroring primary monitor on up to three connected monitors
• Expansion of primary monitor area on one monitor + mirroring on up to two others
• Expanding primary monitor area on one monitor + mirroring the extended area on up to two others

RJ-45 output:

• Gigabit Ethernet interface for UTP/STP cable
• Supported rates: 10/100/1000 Mbit/s
• IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T
• Auto-detection of 10/100/1000 Mbit/s
• Supports IPv4/IPv6 packet checksum offload
• TCP Large Send Offload V1/V2
• IEEE 802.1P Layer 2 priority encoding/decoding, IEEE 802.1Q VLAN tagging
• IEEE 802.3az EEE (Energy Efficient Ethernet)
• Jumbo frame support, full-duplex and half-duplex with flow control
• Auto MDI/MDIX support for crossover correction
• Hardware CRC for error detection
• Wake-on-LAN function in multiple modes
• Advanced power management support including ACPI, LPM, IEEE 802.3az
• Two LEDs indicate network activity and connection status

Audio output / input:

• 1× 3.5 mm jack for headset, headphones or active speakers
• 2-channel analogue stereo output 48 kHz @ 16-bit for playback
• 1-channel analogue mono microphone input 48 kHz @ 16-bit for recording

Card reader - two slots:

• Micro SD slot: microSD / microSDHC / microSDXC / TransFlash
• SD slot: SD / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter miniSD, microSD / microSDHC / microSDXC, MMC Micro

Reader supports the following flash card specifications:

• SD 1.0/1.1 up to 2 GB
• SD 2.0 (SDHC) up to 32 GB
• SD 3.0 (SDXC) up to 2 TB
• MMC and eMMC 3.x/4.0/4.1/4.2/4.3/4.4/4.5/5.0 (8-bit)
• Supports SD 3.01 and SD Jukebox applications (CPRM functions)
• Supports UHS-I bus speeds up to 104 MB/s
• Hardware ECC and CRC support
• 2 LUN – shown as two drives in file manager

Power Delivery:

• Power Delivery 3.0 support via USB-C hub from wall charger
• Maximum power: 100 W (20 V / 5 A)
• Requires PD support from device and suitable PD charger

Other features:

• Hot Plug support for connecting devices while running
• Full Plug and Play support
• Standby mode support
• Power via USB bus or PD wall charger
• Heavy-duty aluminium body for improved cooling
• High-quality shielded cable for minimal interference
• Dimensions: 256 × 90 × 23 mm
• Weight: 317 g (without cable)
• USB-C male/male cable length: 40 cm

Supported operating systems:

• Windows 10 / 11, MacOS, Linux, Android, Chrome OS
• Compatibility depends on OS and device manufacturer
• Drivers included with supported OS, installed automatically
• DP Alt Mode supported only in updated OS and device support required

Package contains:

• USB-C hub
• USB-C cable 40 cm long
• Multilingual manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA)
• Packed in a cardboard box with hanging hole
